Sony HCD-FL5D - Tape Mechanism Deck Sections Exploded Views

128
HCD-FL5D

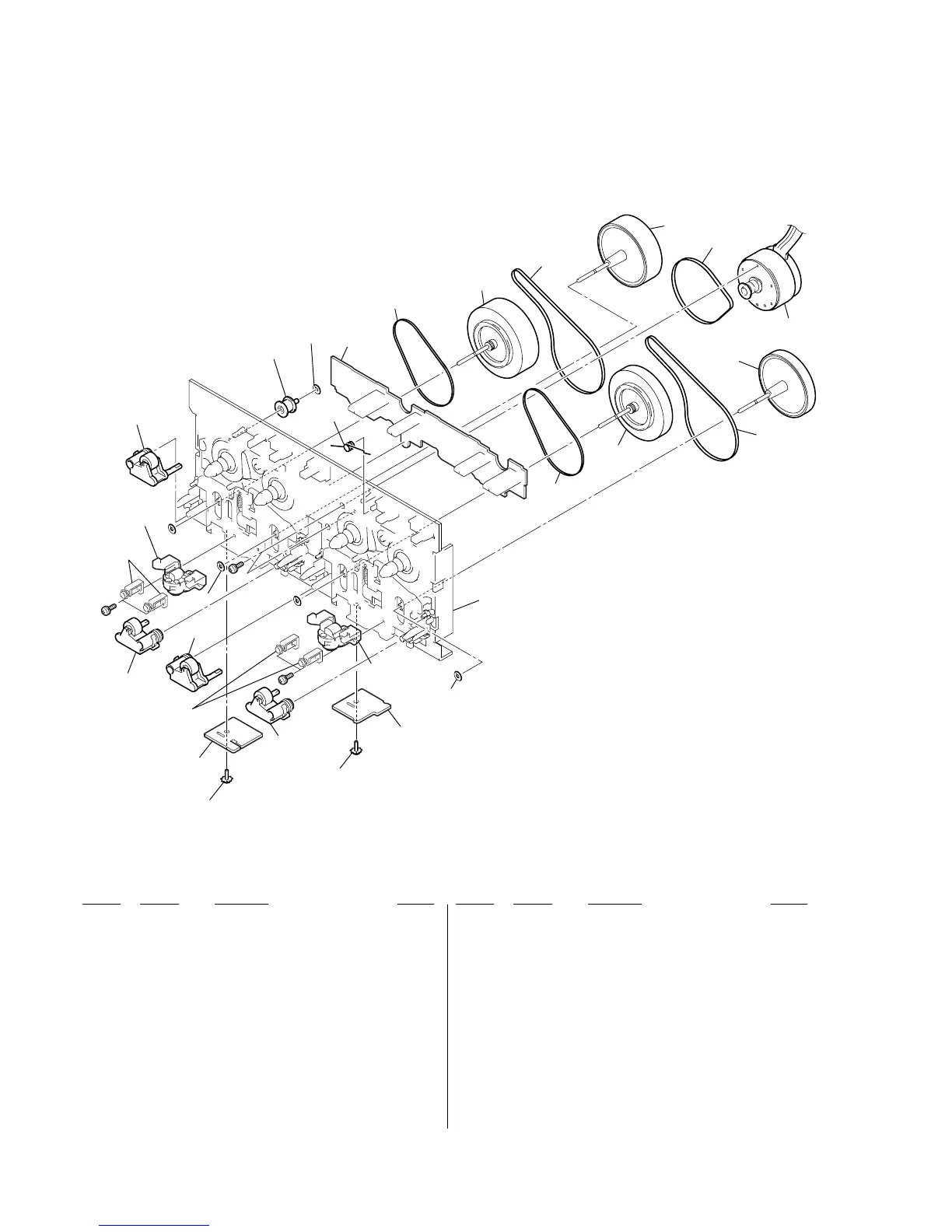

9-15. TAPE MECHANISM DECK SECTION-1
(TCM-230AWR41CS: EXCEPT TH MODEL)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
751 X-3374-156-5 PINCH LEVER (REV) ASSY
752 X-3374-155-5 PINCH LEVER (FWD) ASSY
753 A-2007-839-A HEAD (A) BOARD, COMPLETE
754 A-2007-840-A HEAD (B) BOARD, COMPLETE
756 3-040-580-02 PULLEY (TENSION)
757 A-4676-533-A SW BOARD, COMPLETE
758 3-041-947-01 BELT (FR)
759 3-041-946-01 BELT (CAPSTAN B)
760 4-227-239-01 BELT (CAPSTAN C)
762 3-019-208-01 WASHER, STOPPER
763 3-016-533-01 WASHER (FR), STOPPER
764 X-3378-041-1 FLYWHEEL (A-REV) ASSY
765 X-3378-040-1 FLYWHEEL (A-FWD) ASSY
766 X-3378-043-1 FLYWHEEL (B-REV) ASSY
767 X-3378-042-1 FLYWHEEL (B-FWD) ASSY
768 4-227-872-11 SCREW (+PTT 2X4), GROUND POINT
769 4-227-455-02 SPRING (HALF), TORSION
HP901 X-4953-985-1 BLOCK (A) ASSY, HEAD (PB)
(for TCM-230AWR41CS)
HRPE901X-4953-986-1 BLOCK (B) ASSY, HEAD (REC/PB/ERASE)
(for TCM-230AWR41CS)
M901 X-3378-241-1 MOTOR ASSY (CAPSTAN) (WITH PULLEY)
(TAPE) (for TCM-230AWR41CS)
#8 7-685-783-09 SCREW +PTT 2X6 (S)
#9 7-628-254-05 SCREW +PS 2.6X5
#10 7-623-921-01 WASHER 1.7, NYLON
751
758
757
758
764
759
759
766
765
760
767
751
752
752
762
769
762
753
754
#9
HP901
HRPE901
not
supplied
not supplied
not supplied
#10
#8
#8
#10
M901
768
768
763
756
