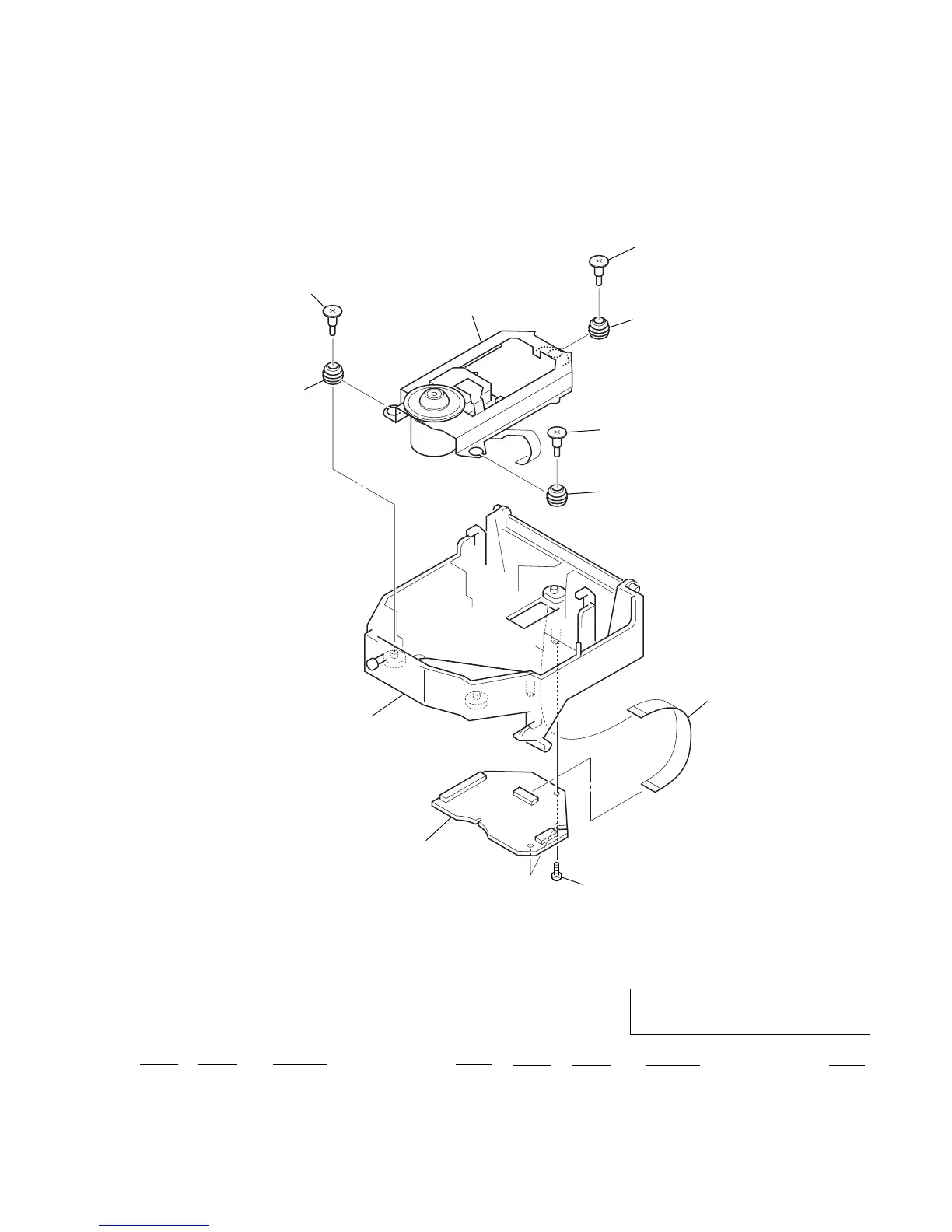

Sony HCD-FL5D - Base Unit Section Exploded View

127
HCD-FL5D
9-14. BASE UNIT SECTION
(DVBU14)
701
701
704
708
705
706
702
701
702
702
703
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
701 4-981-923-01 SCREW (M), STEP
702 3-053-847-31 INSULATOR
0 703 A-4713-410-A OPTICAL TRAVERSE UNIT (DBU-1)
704 A-4728-690-A RF BOARD, COMPLETE
705 1-824-106-12 CABLE, FLEXIBLE FLAT (24 CORE)
706 X-4954-780-3 HOLDER (DBU1) ASSY
708 4-218-253-11 SCREW (M2.6), +BTTP
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
Ver 1.4
