Sony HCD-FL5D - Chassis Sections Exploded Views

119
HCD-FL5D

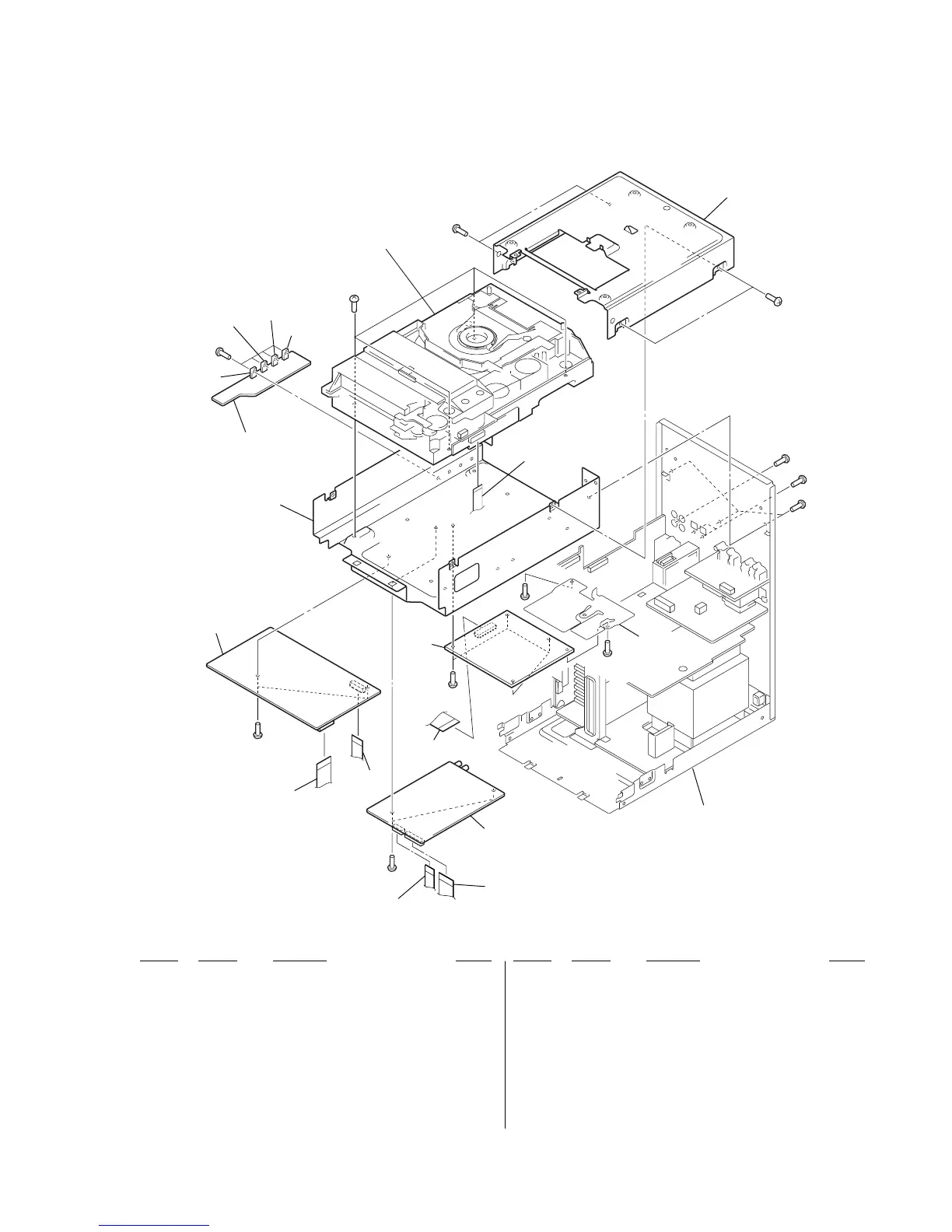

9-6. CHASSIS SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 1-765-324-11 WIRE (FLAT TYPE) (11 CORE)
302 1-824-686-11 WIRE (FLAT TYPE) (13 CORE)
303 1-773-123-11 WIRE (FLAT TYPE) (19 CORE)
304 1-773-105-11 WIRE (FLAT TYPE) (19 CORE)
305 A-4676-775-A MC BOARD, COMPLETE (SP, TH)
305 A-4730-229-A MC BOARD, COMPLETE (EA)
305 A-4730-233-A MC BOARD, COMPLETE (MX)
305 A-4732-462-1 MC BOARD, COMPLETE (AUS)
306 A-4676-890-A DSP BOARD, COMPLETE (EA, MX, SP, TH)
306 A-4730-231-A DSP BOARD, COMPLETE (AUS)
307 1-684-271-11 REGULATOR BOARD
308 1-773-049-11 WIRE (FLAT TYPE) (17 CORE)
309 A-4676-784-A MB BOARD, COMPLETE
310 1-824-652-11 WIRE (FLAT TYPE) (29 CORE)
IC801 6-701-760-01 IC UPC3504AHF
IC802 8-759-231-53 IC TA7805S
IC803 8-759-231-57 IC TA7810S
IC804 8-759-231-53 IC TA7805S
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
CDM53N-DVBU14
303
305
306
301
304
310
302
309
308
307
chassis section-2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
not
supplied
IC801
IC802
IC803
IC804
not supplied
Ver 1.2
