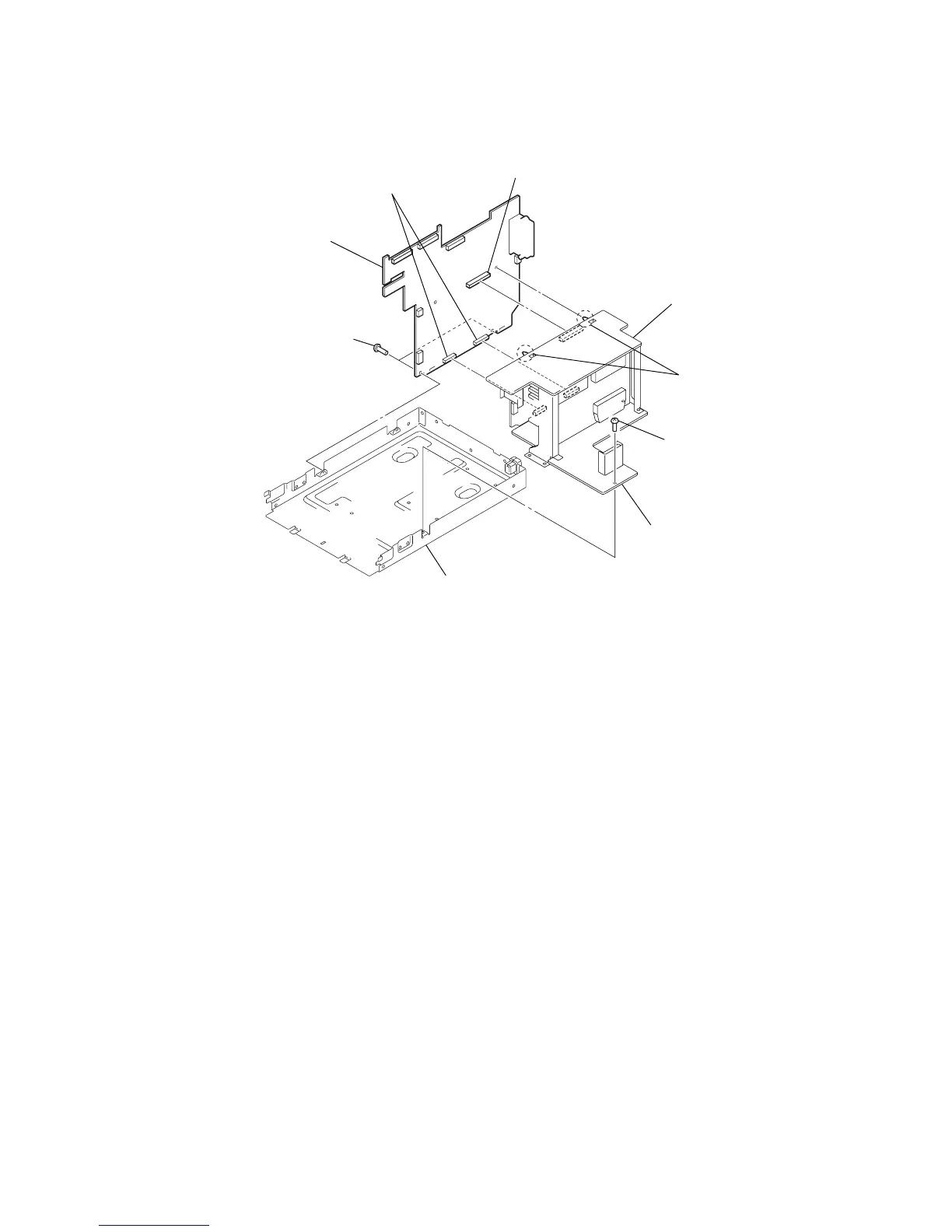

21
HCD-FL5D
2
screw (BVTP3
×
8)
1
two screws
(BVTP3
×
8)
4
two connectors
(CN803, 804)
6
two connectors
(CN801)
7
SP relay board
5
two claws
front rear AMP board
center SW AMP board
3
chassis
3-22. SP RELAY BOARD
