Sony HCD-FL5D - Page 130

130
HCD-FL5D
851
851
852
855
853
854
857
866
867
865
857
863
859
M901
#9
#10
#11
#11
#10
856
862
858
858
864
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
851 3-041-946-11 BELT (CAPSTAN B)
852 4-227-239-11 BELT (CAPSTAN C)
853 X-3378-249-1 FLYWHEEL (B-FWD) ASSY
854 X-3378-250-1 FLYWHEEL (B-REV) ASSY
855 X-3378-247-1 FLYWHEEL (A-FWD) ASSY
856 X-3378-248-1 FLYWHEEL (A-REV) ASSY
857 3-041-947-01 BELT (FR)
858 3-041-499-01 SCREW (CAM), STEP
859 X-4952-881-1 CHASSIS ASSY MAIN
862 3-017-407-01 WASHER (FR LEVER), STOPPER
863 3-019-208-01 WASHER, STOPPER
864 3-040-580-02 PULLEY (TENSION)
865 4-228-450-01 SPRING (REVERSE SLIDER), TORSION
866 A-2004-796-A CHASSIS (B) ASSY, SUB
867 A-2004-795-A CHASSIS (A) ASSY, SUB
M901 X-3378-241-1 MOTOR ASSY (CAPSTAN) (WITH PULLEY)
(for TCM-230PWR41CS)
#9 7-628-254-05 SCREW +PS 2.6X5
#10 7-623-921-01 RING, RETAINING, CAPSTAN
#11 7-685-781-09 SCREW +PTT 2X4 (S)

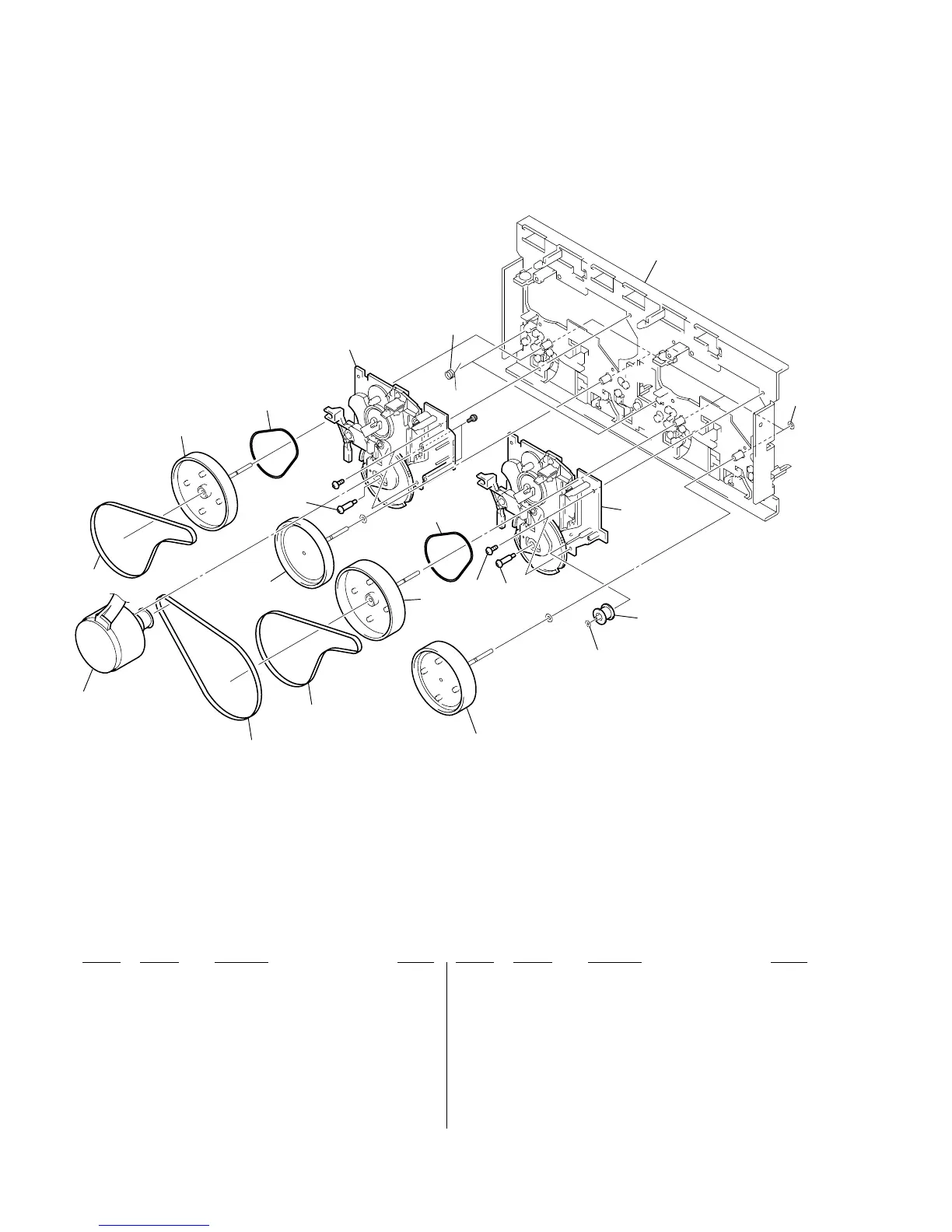

9-17. TAPE MECHANISM DECK SECTION-3
(TCM-230PWR41CS: TH MODEL)
