112
Quick Reference

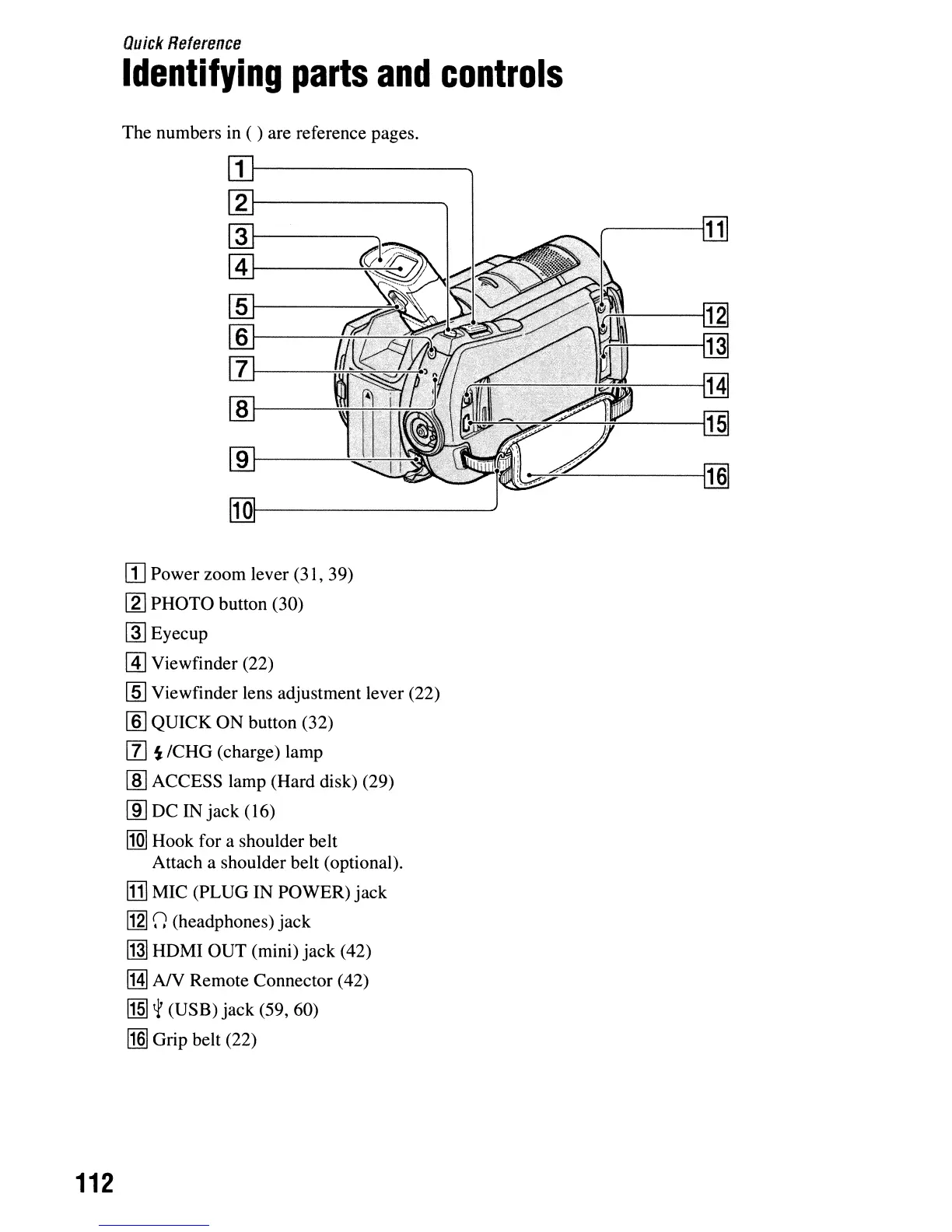

Identifying parts and controls
The numbers in ( ) are reference pages.
gl------'-='
[fQ]1----------
II] Power zoom lever (31, 39)
[gJ PHOTO button (30)
~Eyecup
@] Viewfinder (22)
[§] Viewfinder lens adjustment lever (22)
[ID QUICK ON button (32)
[I] i /CHG (charge) lamp
[ID ACCESS lamp (Hard disk) (29)
lID DC IN jack (16)
I1Q] Hook for a shoulder belt
Attach a shoulder belt (optional).
ff1l MIC (PLUG IN POWER) jack
l12.I r;: (headphones) jack
~ HDMI OUT (mini) jack (42)
IHJ A/V Remote Connector (42)
!1§] tf (USB) jack (59,60)
ff§] Grip belt (22)
r-----l11
