MHC-V41D
11

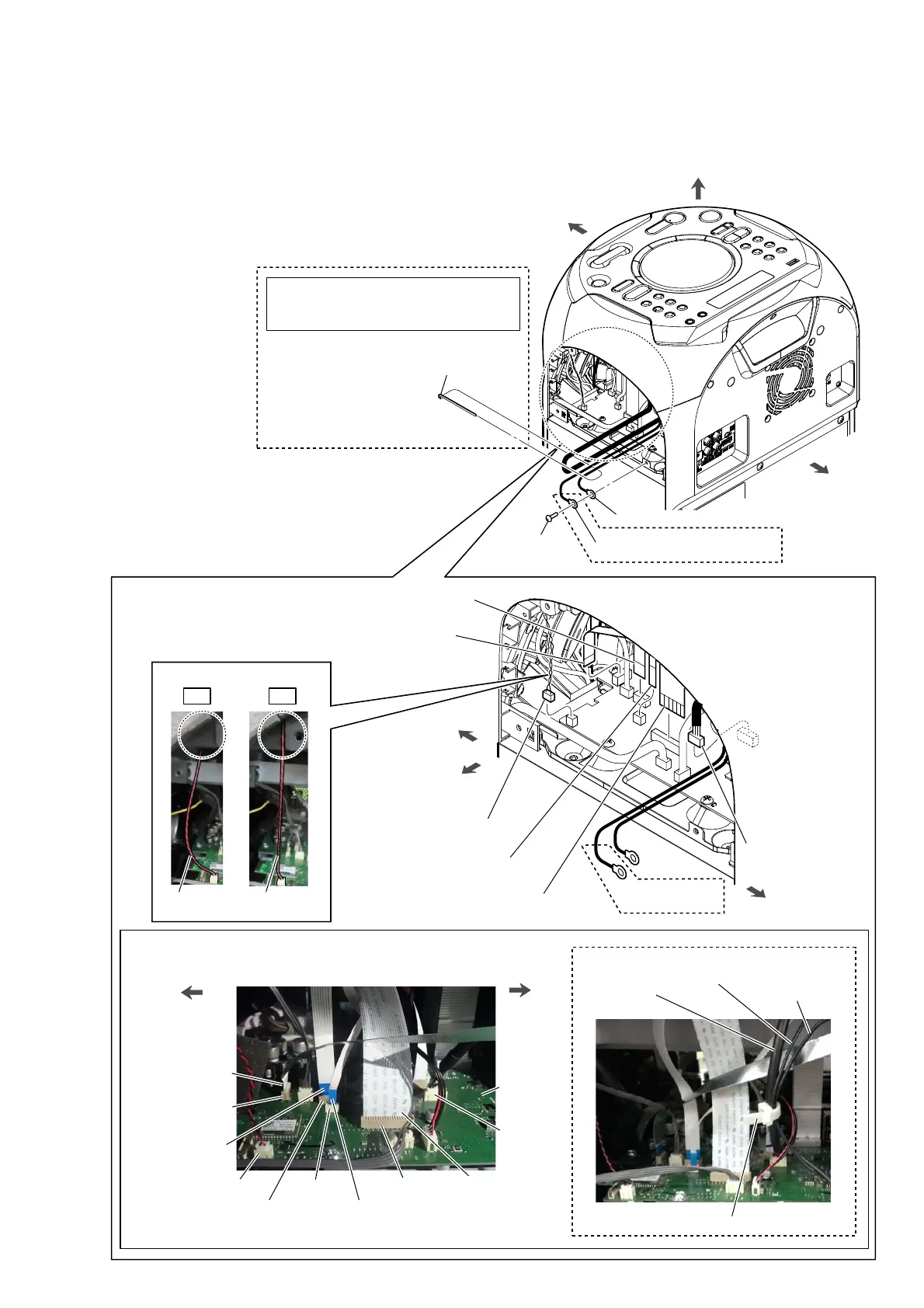

2-3. TOP PANEL BLOCK-1
• Continued on 2-4 (page 12).
WireVHWWLQJ
5 microphone wire connector
(CN3001)
9 flexible flat cable (7P) (CN601)
(from MIC board)
8 PANEL board cable
connector (CN451)
7 flexible flat cable (19P) (CN103)
(from PANEL board)
6 flexible flat cable (6P) (CN105)
(from NFC board)
0 flexible flat cable (7P) (CN120)
(from GESTURE board)
terminal side
CN103
The opposite side
is terminal side.
The opposite side
is terminal side.
CN105CN3001
MOTHER
board
CN451
CN120
CN601
–5LJKWYLHZ–
–5LJKWYLHZ–
front side
rear side
right side
front side
rear side
The opposite side
is terminal side.
$(38.$86
2. NG
front side
rear side
top side
2 screw
(BVTP3 u 8)
4 MIC board wire
3 PANEL board wire
$(38.$86
$(38.$86
Note:
During reassembly, use new insulock ties
to fasten the wires back in place as they
were before disassembly.
1 Cut the insulock tie.
:LUHVHWWLQJ
microphone
wire
microphone
wire
$(38.$86
insulock tie
PANEL board
cable
MIC board wire
PANEL board wire
