Sony MHC-V41D Service Manual

MHC-V41D
32

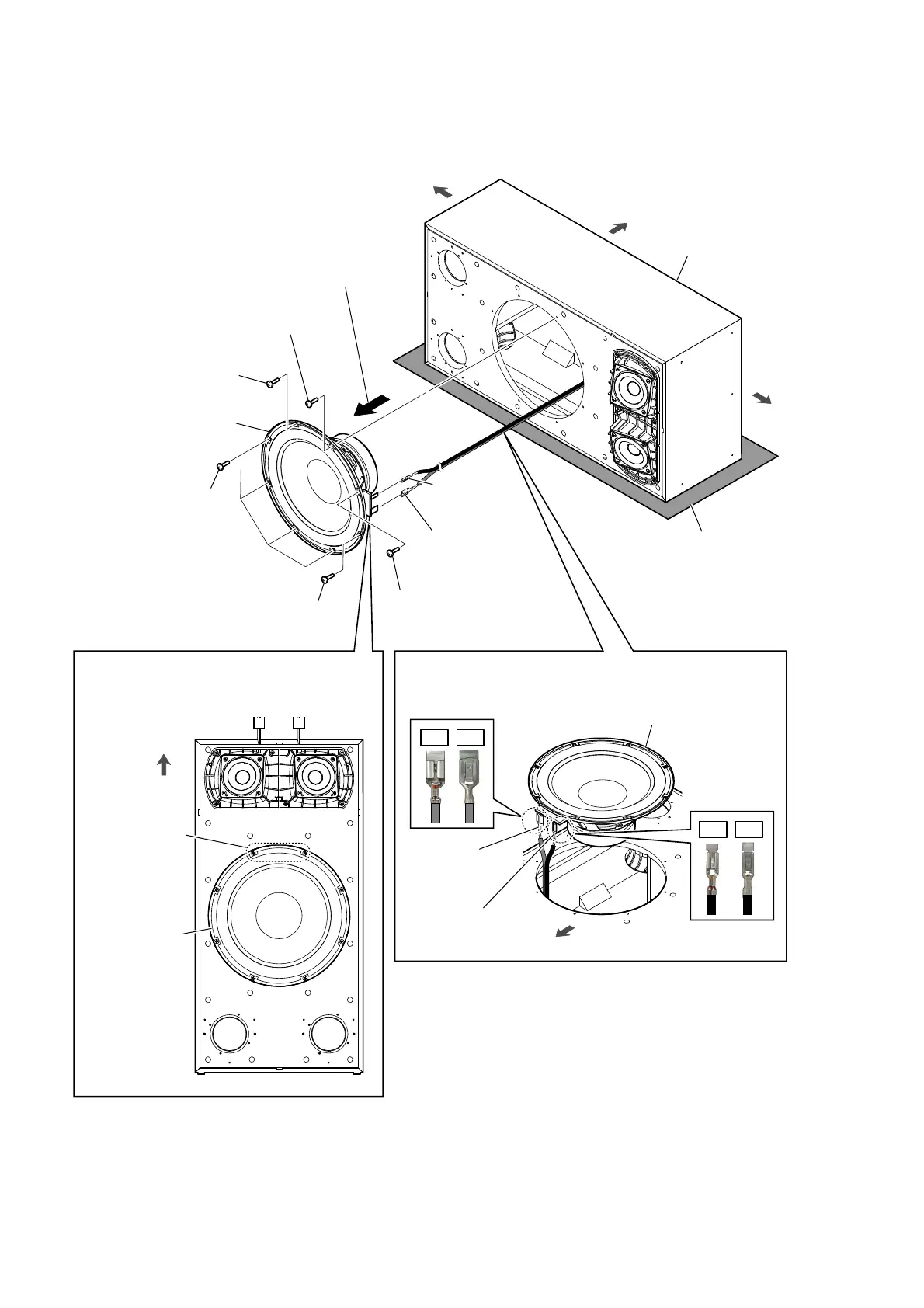

2-26. LOUDSPEAKER (SUBWOOFER)
2 Remove the subwoofer
in the direction of the arrow.
4 loudspeaker
(subwoofer)
– Front view –
Note 1:
When installing the subwoofer, make the position
of terminals as shown in the figure below.
subwoofer
terminals position
Installation direction for the speaker cable terminal
rear side
top side
bottom side
,QVWDOODWLRQGLUHFWLRQIRUWKHVXEZRRIHU
top side
Note 2:
When connecting the speaker cable terminal to the subwoofer,
take care for the direction of the terminal and connect it.
terminal
(wide side)
[gray]
terminal
(narrow side)
[black]
top side
OK
NG
subwoofer
soft cloth, etc.
3 terminal
(wide side)
[gray]
3 terminal
(narrow side)
[black]
1 tapping screw
(BVTP4 u 20)
1 tapping screw
(BVTP4 u 20)
1 four screws
(BVTP4 u 20)
1 tapping screw
(BVTP4 u 20)
1 tapping screw
(BVTP4 u 20)
OK
NG
speaker cabinet block

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
