Sony MHC-V41D Service Manual

MHC-V41D
29

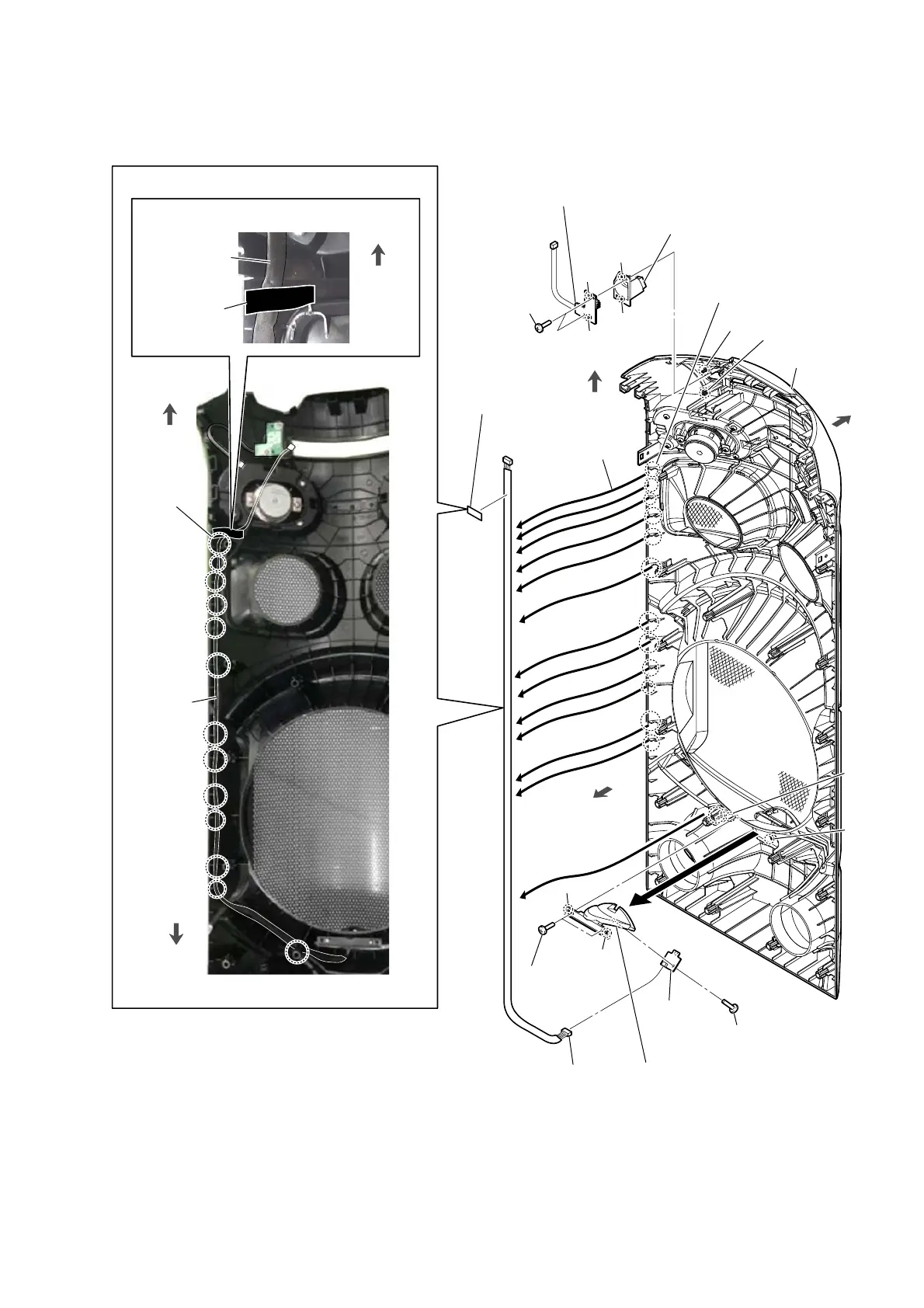

2-23. SW LED BOARD, IR BOARD
top side
6:/('ERDUGFDEOHVHWWLQJ
3 two screws
(BVTP2.6 u 8)
front side
4
6 screw
(BVTP2.6 u 8)
2 Draw the SW LED
board cable out of
the groove.
total thirteen
grooves
5 SW LED board
cable connector
(CN7651)
8 SW LED
board
boss
boss
hole
hole
7 SPK LED bracket
Note 1:
When installing the SPK LED
bracket, align the two bosses
and two holes.
top side
rear side
total thirteen
grooves
SW LED
board
cable
–)URQWSDQHOEORFNLQQHUYLHZ–
bottom
side
front panel block
1 hemilon
(See Fig. P)
)LJ3!
hemilon
3DVWLQJSRVLWLRQRIWKHKHPLORQ
SW LED board
cable
top side
9 two screws
(BVTP2.6 u 8)
hole
qa IR window
Note 3:
When installing the IR window,
align the two bosses and two
holes.
hole
hole
hole
boss
boss
0 IR board
Note 2:
When installing the IR board,
align the two bosses and two
holes.

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
