Sony MHC-V41D Service Manual

MHC-V41D
12

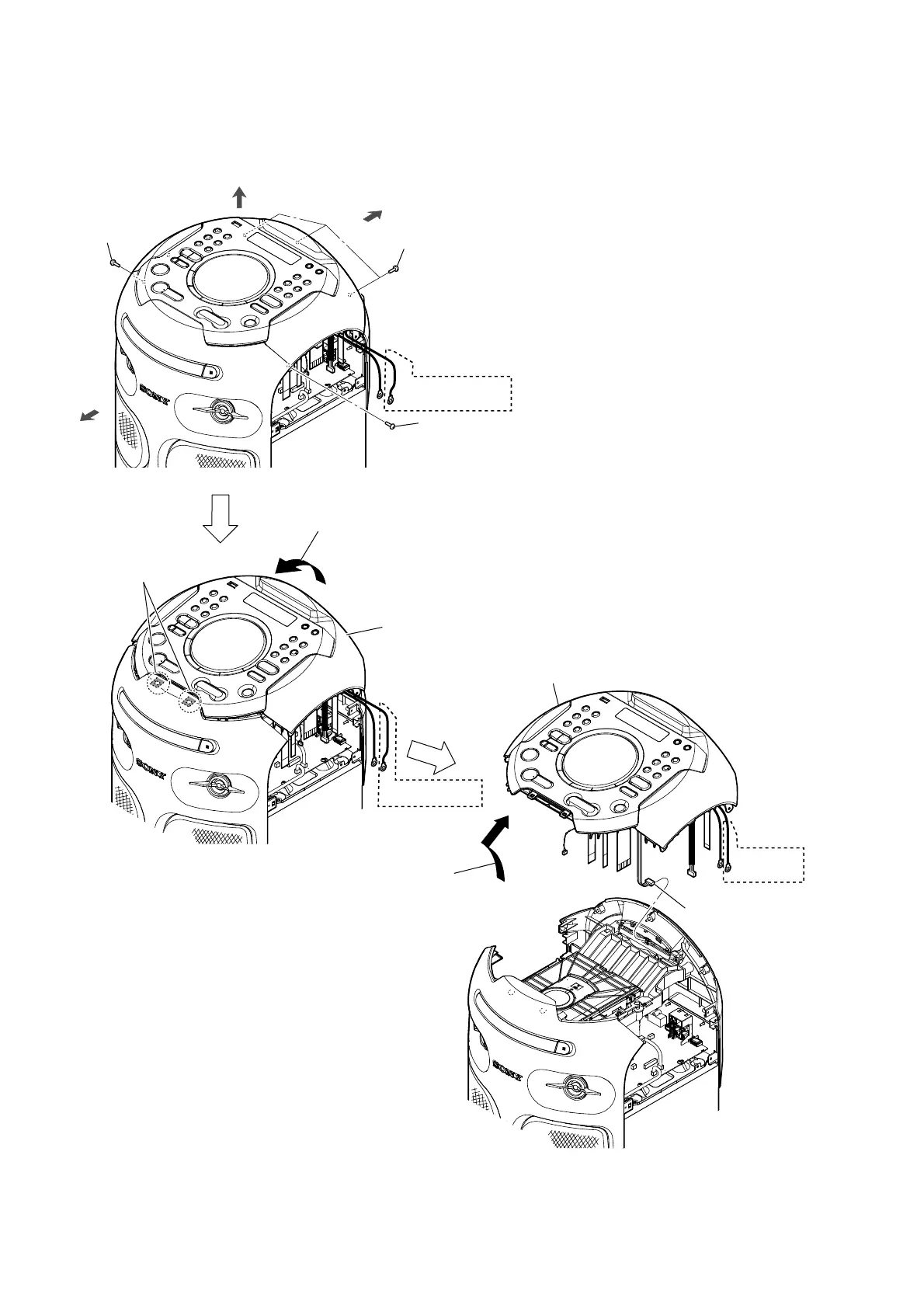

2-4. TOP PANEL BLOCK-2
4 two claws
3
Lift up rear side of the top
panel block in the direction
of the arrow.
7 top panel block
5 Remove the top panel block
in the direction of the arrow.
2 three screws
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
front side
rear side
top side
top panel block
6 PANEL board cable
connector (CN7600)
(AEP, UK, AUS)
(AEP, UK, AUS)
(AEP, UK,
AUS)

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
