Sony MHC-V41D Service Manual

MHC-V41D
18

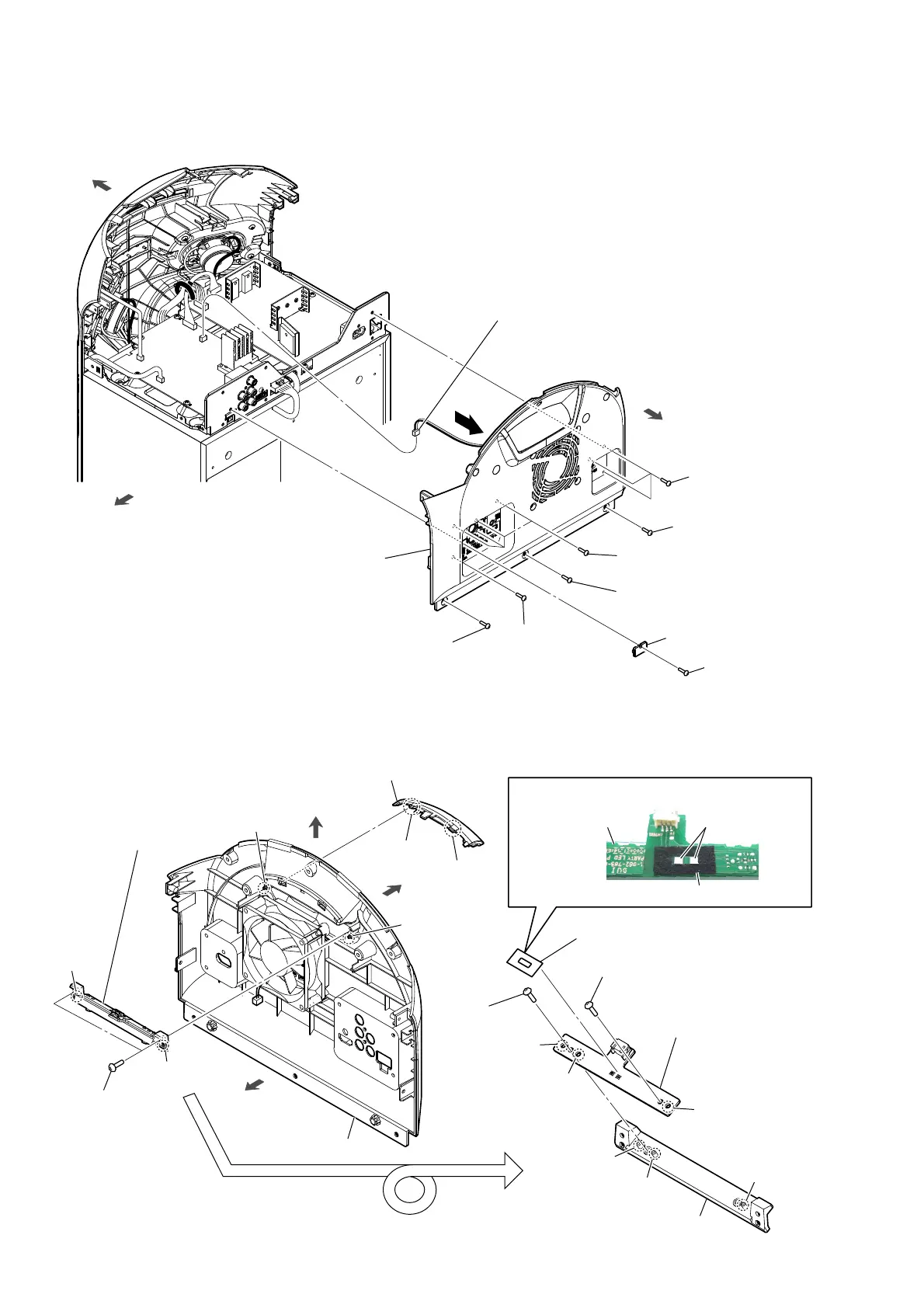

2-10. REAR PANEL BLOCK
5 three screws
(BVTP3 u 8)
5 four screws
(BVTP3 u 8)
5 screw
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
4 tapping screw
(3.5 u 14)
front side
rear side
3 DC fan cable connector
(CN2001)
4 tapping screw
(3.5 u 14)
4 tapping screw
(3.5 u 14)
6
7 rear panel block
Note:
When installing the rear panel block,
be careful not to pinch the DC fan cable.
right side
2 service connector cap
2-11. PARTY LED BOARD
top side
3 two screws
(BVTP2.6 u 8)
2 party lens block
1 claw
1 claw
hole
boss
boss
hole
hole
4 PARTY LED board block
Note 1:
When installing the
PARTY LED board
block, align the two
bosses and two holes.
hole
boss
Turn over.
6 party LED bracket
5 screw
(BVTP2.6 u 8)
5 screw
(BVTP2.6 u 8)
7 party light cushion
8 PARTY LED board
Note 2:
When installing the
PARTY LED board,
align the three bosses
and three holes.
boss
boss
hole
,QVWDOODWLRQSRVLWLRQRIWKHSDUW\OLJKWFXVKLRQ
front side
rear side
party light cushion
PARTY LED board
rear panel block
LED

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
