Sony MHC-V41D Service Manual

66
MHC-V41D

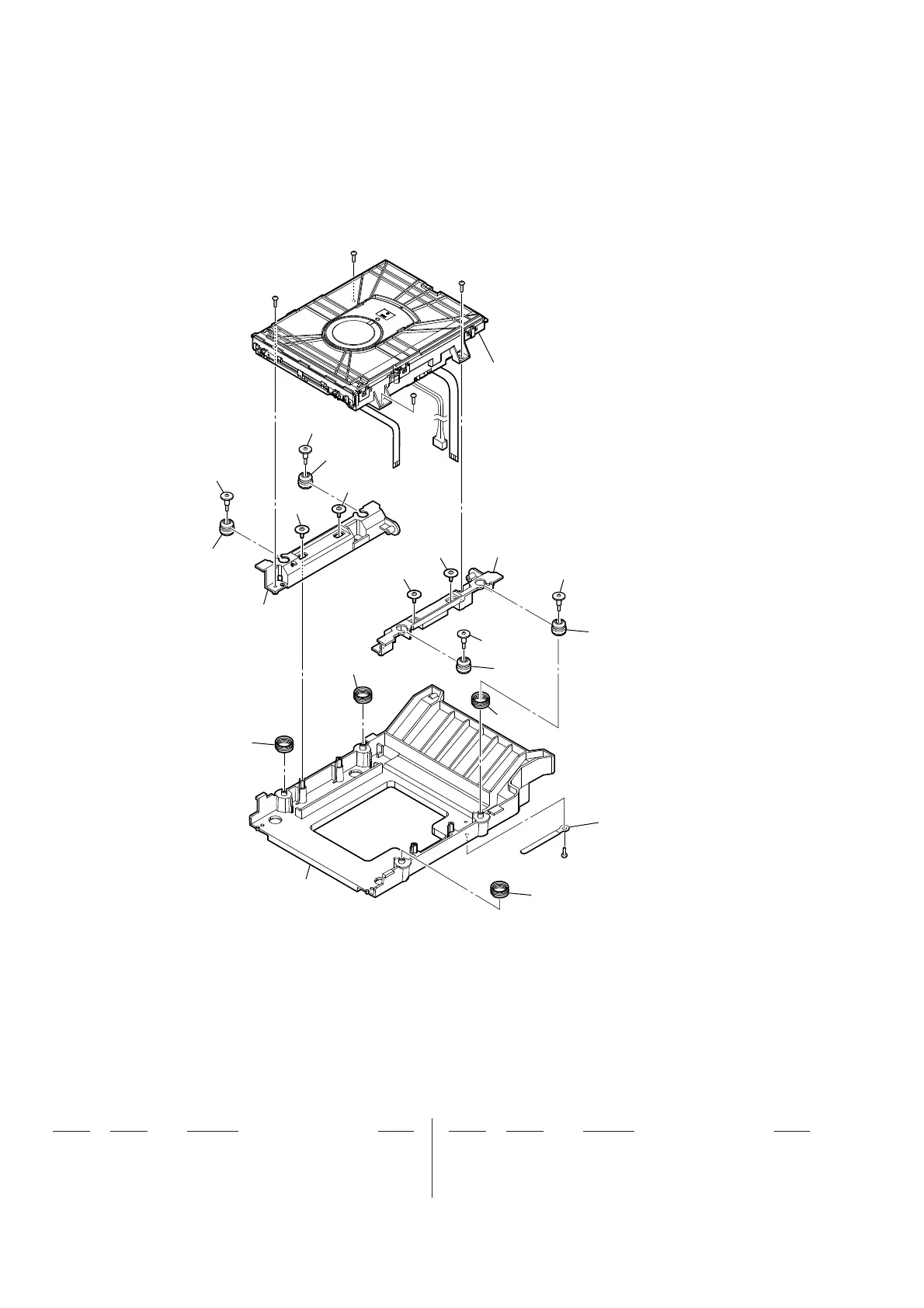

7-8. CDM BLOCK SECTION
#2
#2
#2
#2
not supplied
DVD mechanism deck section
(CDM90-DVBU204)
not supplied
not supplied
351
351
353
352
352
352
352
353
353
353
354
354
354
354
355
355
#2
not supplied
351 4-533-939-01 SPRING, INSULATOR (F) (for Front side)
352 4-533-382-01 INSULATOR
353 4-533-702-01 STEP SCREW
354 2-345-115-01 SCREW (S), FLOAT (L = 7.0 mm)
355 4-533-940-01 SPRING, INSULATOR (R) (for Rear side)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
