Sony MHC-V41D Service Manual

MHC-V41D
24

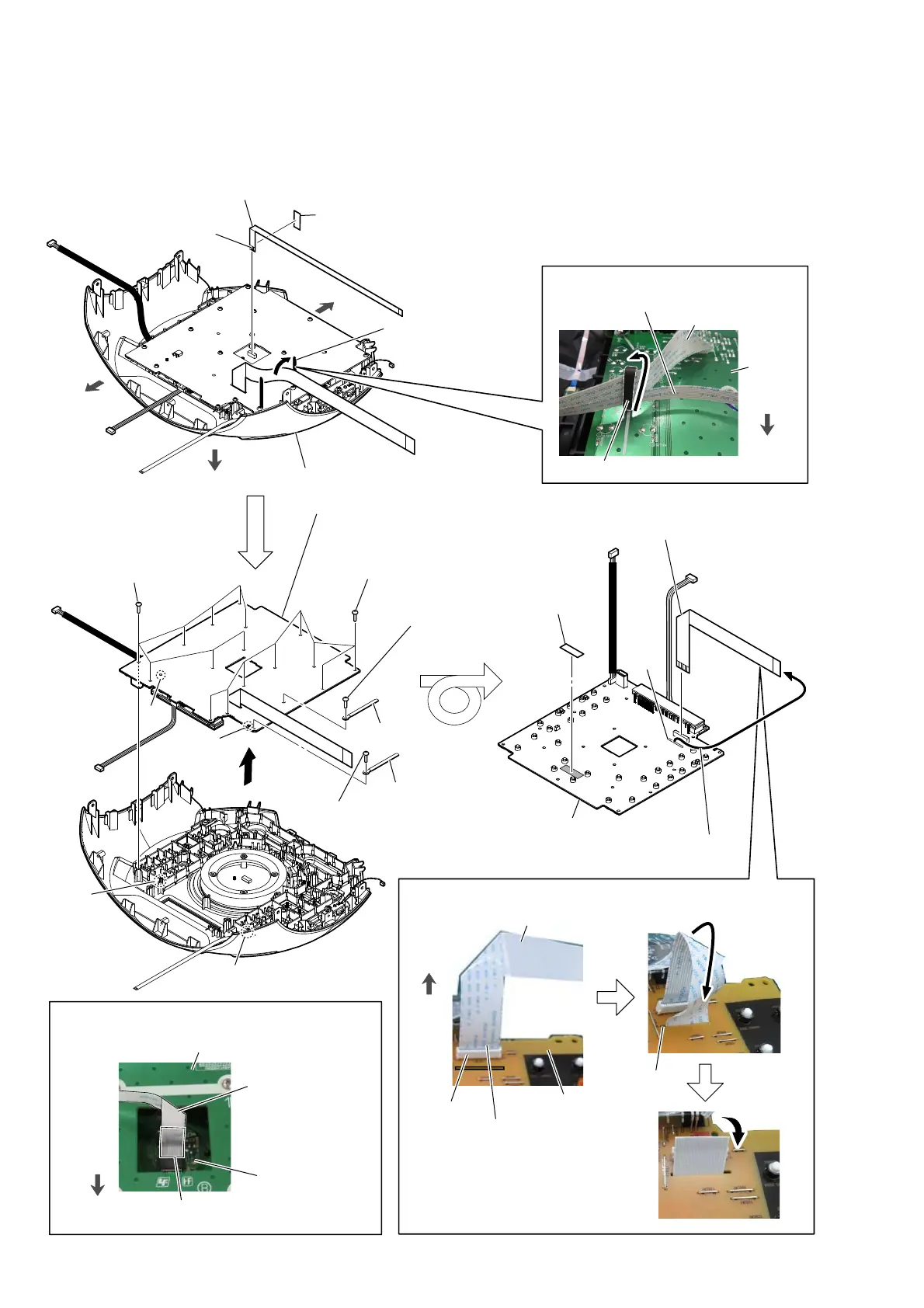

2-17. PANEL BOARD
front side
rear side
rear side
1 Remove the
flexible
flat cable from the
coating clip.
2
filament tape
(sub material)
(See Fig. O)
3
flexible flat cable (7P)
(CN7500)
terminal side
)OH[LEOHIODWFDEOHVHWWLQJ
top side
top panel block
–%RWWRPYLHZ–
flexible flat cable
(7P)
flexible flat cable
(19P)
coating clip
PANEL
board
front side
Turn over.
4 eight screws
(BVTP2.6 u 8)
4 screw
(BVTP2.6 u 8)
5 coating clip
4 eight screws
(BVTP2.6 u 8)
4 screw
(BVTP2.6 u 8)
5 coating
clip
6
7 PANEL board block
Note:
When installing the PANEL board block,
align the two bosses and two holes.
hole
hole
boss
boss
8 Draw the
flexible flat
cable out of the hole.
9
flexible flat cable (19P)
(CN7007)
qa PANEL board
0 hemilon
hole
terminal side
CN7007
PANEL board
hole
flexible flat cable (19P)
filament tape
(sub material)
)OH[LEOHIODWFDEOHVHWWLQJ
Pass the flexible flat cable
into the hole.
Bend.
)LJ2!
3DVWLQJSRVLWLRQRIWKHILODPHQWWDSHVXEPDWHULDO
flexible flat cable
(7P)
GESTURE board
PANEL board
front side
–%RWWRPYLHZ–
–7RSYLHZ–
