MHC-V41D
19

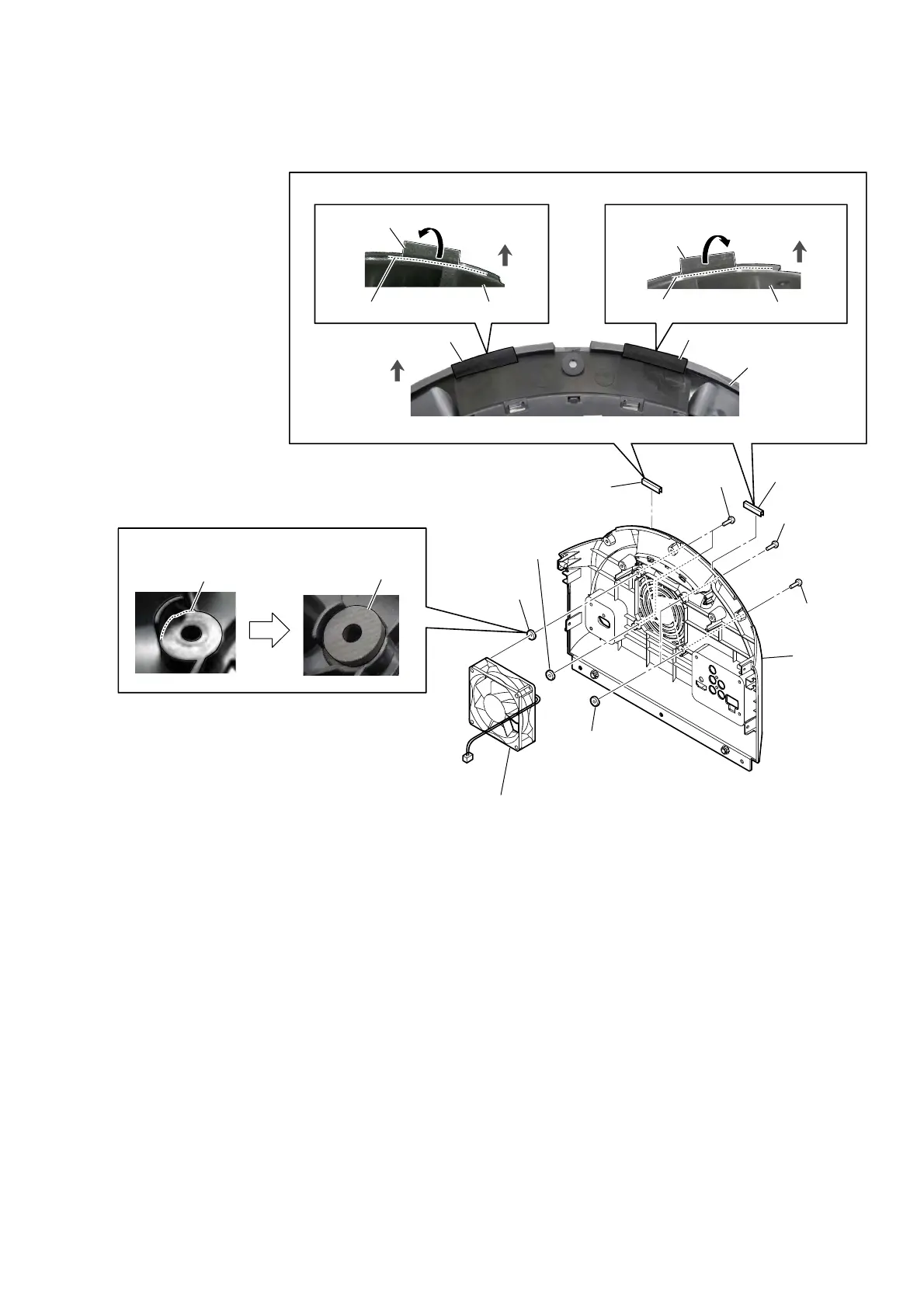

2-12. DC FAN, REAR PANEL
guide line
fan cushion
1 screw
(BVTP3 u 8)
1 screw
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
3 fan cushion
,QVWDOODWLRQSRVLWLRQRIWKHIDQFXVKLRQ
4 hemilon
4 hemilon
5 rear panel
–,QQHUYLHZ–
hemilon
guide line
–2XWHUYLHZ–
–2XWHUYLHZ–
top side
rear panel
2 DC fan
Note:
When installing the DC fan,
be careful not to pinch the
DC fan cable.
3 two fan
cushions
3 fan cushion
3DVWLQJSRVLWLRQRIWKHKHPLORQ
hemilon
rear panel
hemilon
Fold.
hemilon
guide line
Fold.
top side
rear panel
top side
