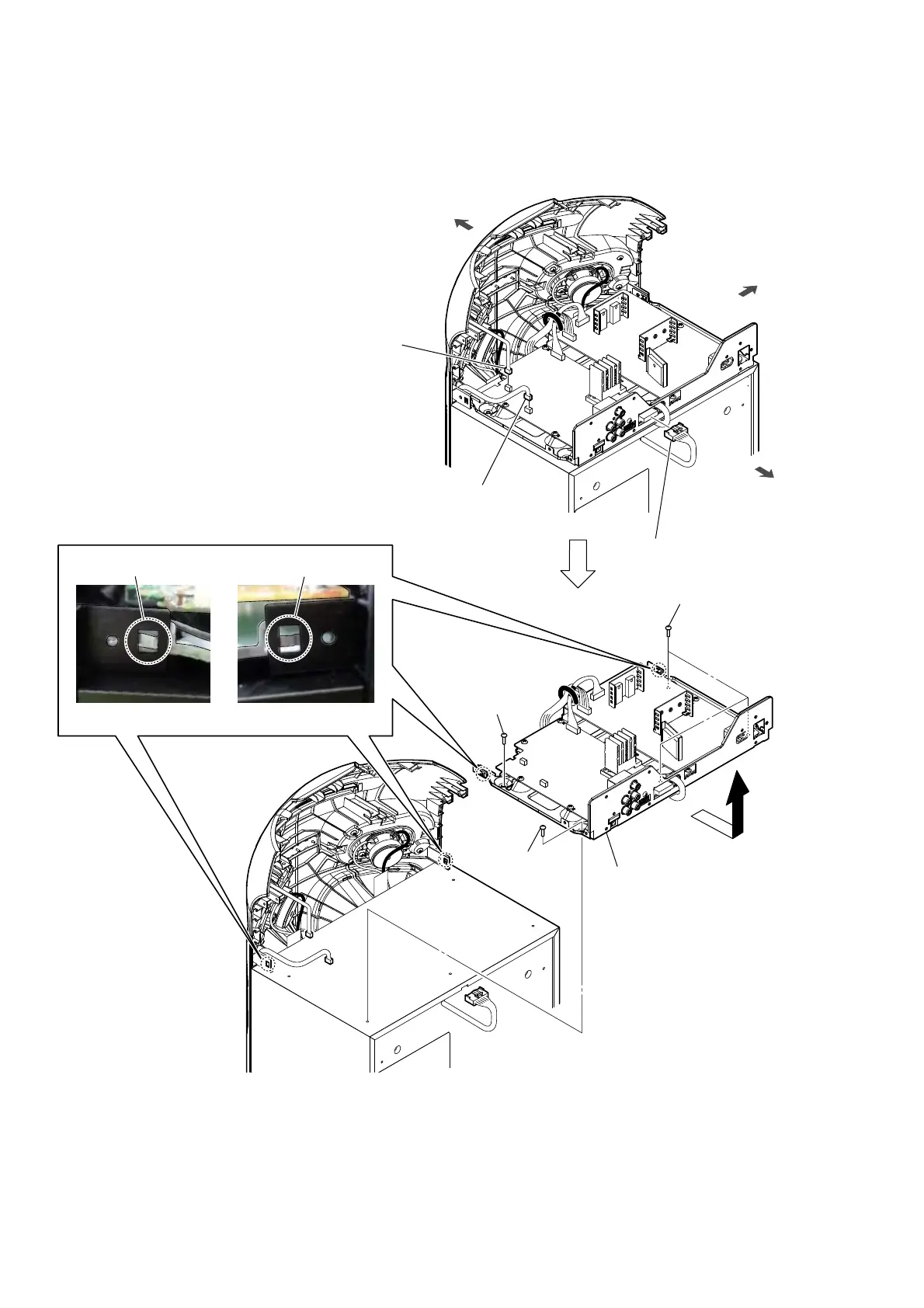

2-13. CHASSIS BLOCK
front side
– Left view –– Right view –
2 SW LED board cable connector
(CN104)
1 IR board cable connector
(CN127)
rear side
left side
3 speaker cable connector
(CN2021)
4 tapping screw
(3.5 u 14)
4 tapping screw
(3.5 u 14)
4 three tapping screws
(3.5 u 14)
5 claw
5 claw
7 chassis block
6
