Sony MHC-V41D Service Manual

62
MHC-V41D

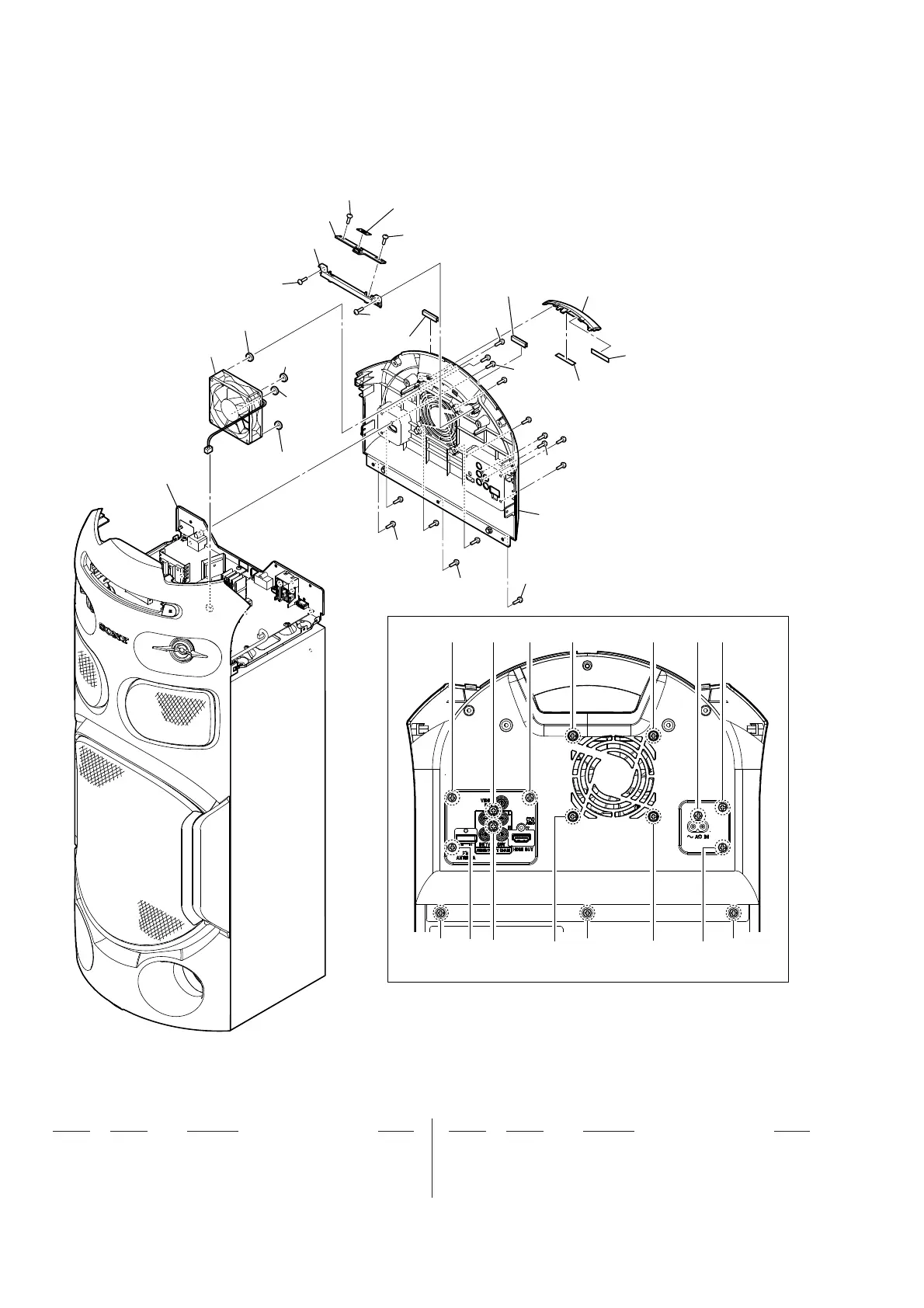

7-4. REAR PANEL SECTION
– Rear view –
151 151 151
#1 #1
#1
#1 #1 #1 #1 #1
#1 #1 #1
chassis section
M1
not supplied
not supplied
#1
not supplied
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
151
151
151
152
153
154
152
152
152
not
supplied
not
supplied
not supplied
not supplied
151 4-874-614-12 SCREW (1) (3.5X14), TAPPING
152 4-951-620-51 SCREW (2.6), +BVTP (L = 8.0 mm)
153 A-2192-239-A PARTY LED BOARD, COMPLETE
154 4-726-156-01 PANEL, REAR
0 M1 1-855-006-41 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
