Sony MHC-V41D Service Manual

MHC-V41D
27

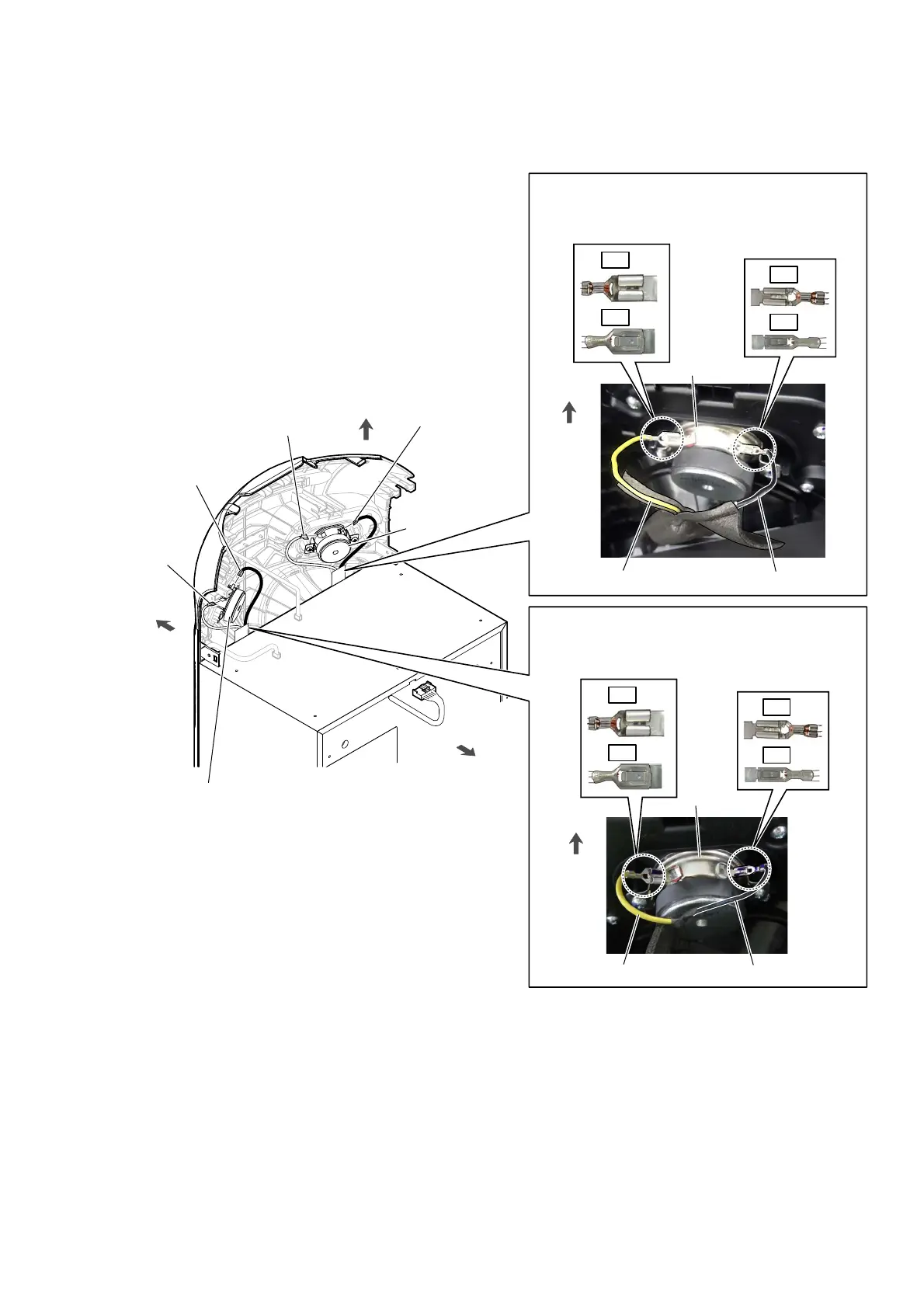

2-21. FRONT PANEL BLOCK-1
• Continued on 2-22 (page 28).
[yellow]
[black]
[yellow]
[black]
1 terminal
(narrow side)
[black]
1 terminal
(narrow side)
[black]
1 terminal
(wide side)
[yellow]
1 terminal
(wide side)
[yellow]
front side
rear side
top side
tweeter
(L-ch)
tweeter
(R-ch)
OK
NG
OK
NG
tweeter
(R-ch)
,QVWDOODWLRQGLUHFWLRQIRUWKHVSHDNHUFDEOHWHUPLQDO
OK
NG
OK
NG
tweeter
(L-ch)
,QVWDOODWLRQGLUHFWLRQIRUWKHVSHDNHUFDEOHWHUPLQDO
top side
–,QQHUYLHZ–
top side
–,QQHUYLHZ–
Note 1:
When connecting the speaker cable terminal to
the tweeter (L-ch), take care for the direction of
the terminal and connect it.
Note 2:
When connecting the speaker cable terminal to
the tweeter (R-ch), take care for the direction of
the terminal and connect it.

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
