Sony MHC-V41D Service Manual

67
MHC-V41D

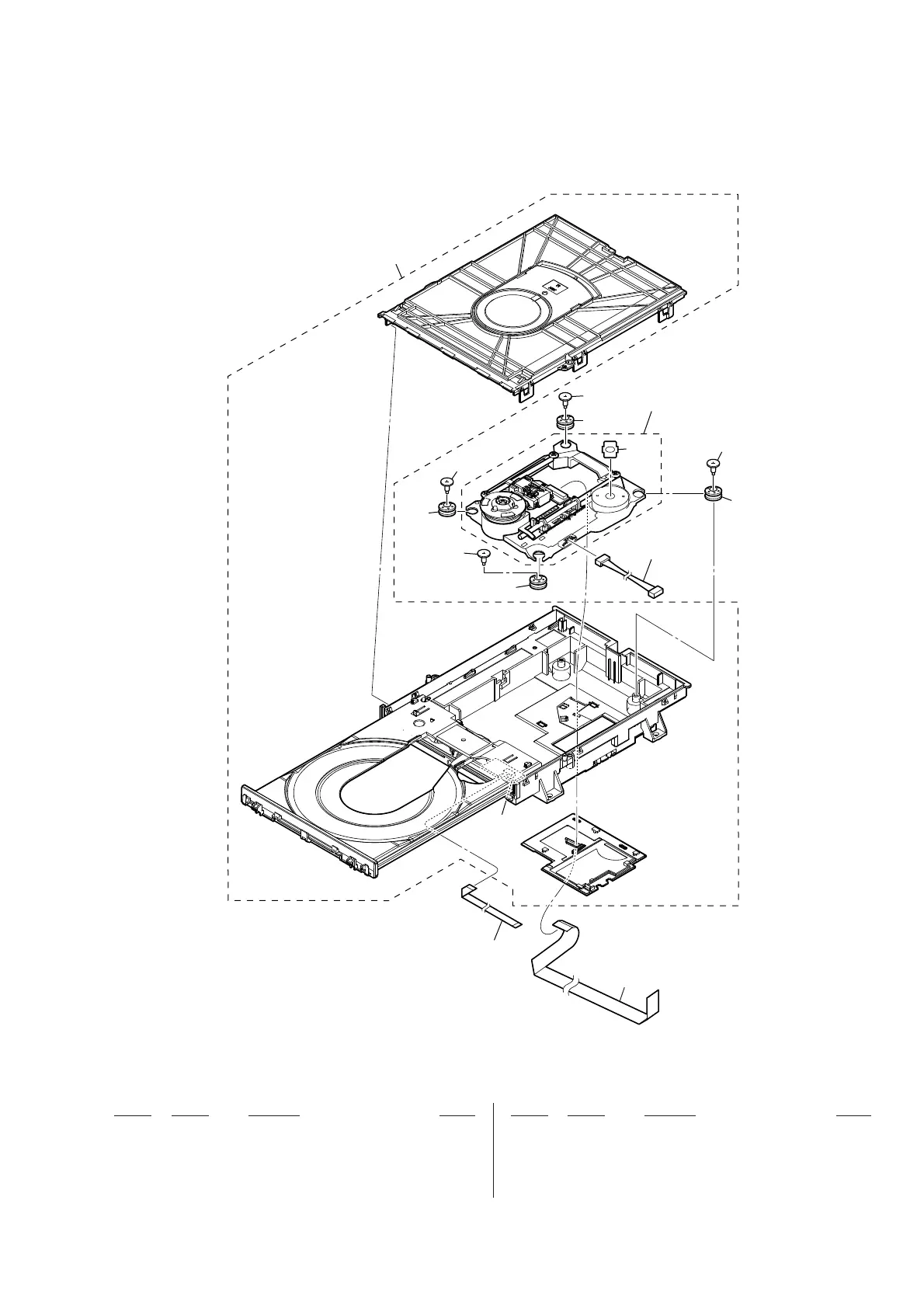

7-9. DVD MECHANISM DECK SECTION (CDM90-DVBU204)
CDM1
OP1
FFC1
401
401
401
401
402
403
402
402
402
not supplied
FFC2
MS-476
board
401 2-634-618-21 INSULATOR
402 3-087-599-01 INSULATOR SCREW
403 4-418-987-01 SHEET (S76)
CDM1 A-1937-669-C CDM90 ASSY (Including MS-476 board)
FFC1 1-972-245-11 FLEXIBLE FLAT CABLE (24P) (L = 200 mm)
FFC2 1-972-243-11 FLEXIBLE FLAT CABLE (5P) (L = 230 mm)
0 OP1 A-2046-956-A OPTICAL PICK-UP BLOCK (CMS-S76RFS7G) (SV)
(Including Sled motor, Spindle motor, Sheet)
