Sony MHC-V41D Service Manual

MHC-V41D
25

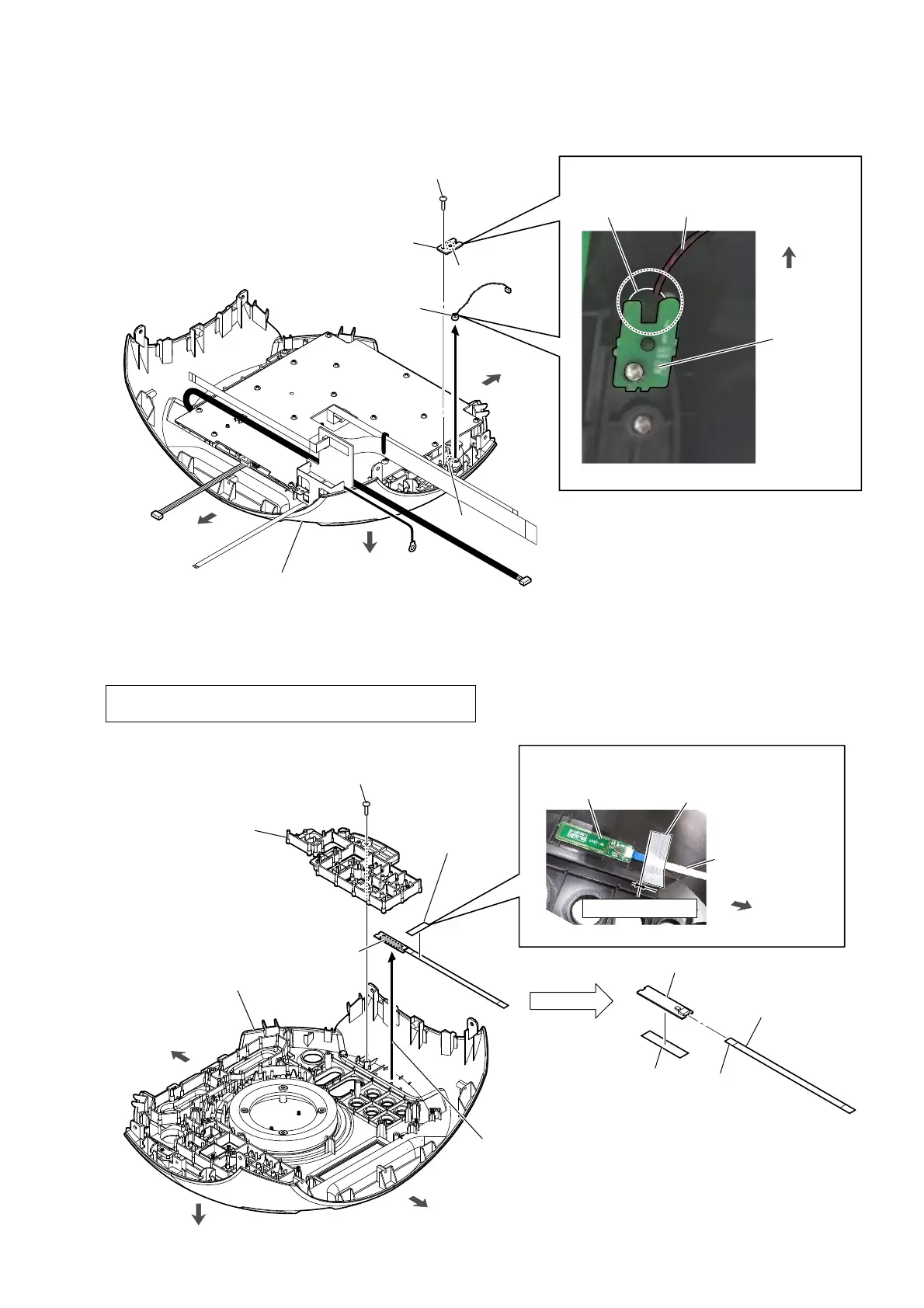

2-18. ELECTRET CAP MICROPHONE
front side
rear side
boss
hole
electret cap
microphone
0LFURSKRQHZLUHVHWWLQJ
microphone wire
MIC COVER
board
1 screw
(BVTP2.6 u 8)
2 MIC COVER board
Note:
When installing the MIC COVER
board, align the boss and hole.
4 electret cap
microphone
top side
top panel block
–%RWWRPYLHZ–
front side
3
2-19. NFC BOARD
3DVWLQJSRVLWLRQRIWKHILODPHQWWDSHVXEPDWHULDO
front side
rear side
NFC tape
1 screw
(BVTP2.6 u 8)
7 NFC board (See Note)
top panel block
top side
2 guitar button assy
4 Peel the NFC board block
off of the top panel block.
6 NFC tape
3
filament tape
(sub material)
5
flexible flat cable (6P)
(CN001)
terminal side
filament tape
(sub material)
flexible flat cable
(6P)
NFC board
0 mm (+ 2, - 0 mm)
rear side
–,QQHUYLHZ–
Note: When the NFC board is replaced, refer to “NFC OPERATION
CHECKING METHOD” on page 6.

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
