Sony MHC-V41D Service Manual

64
MHC-V41D

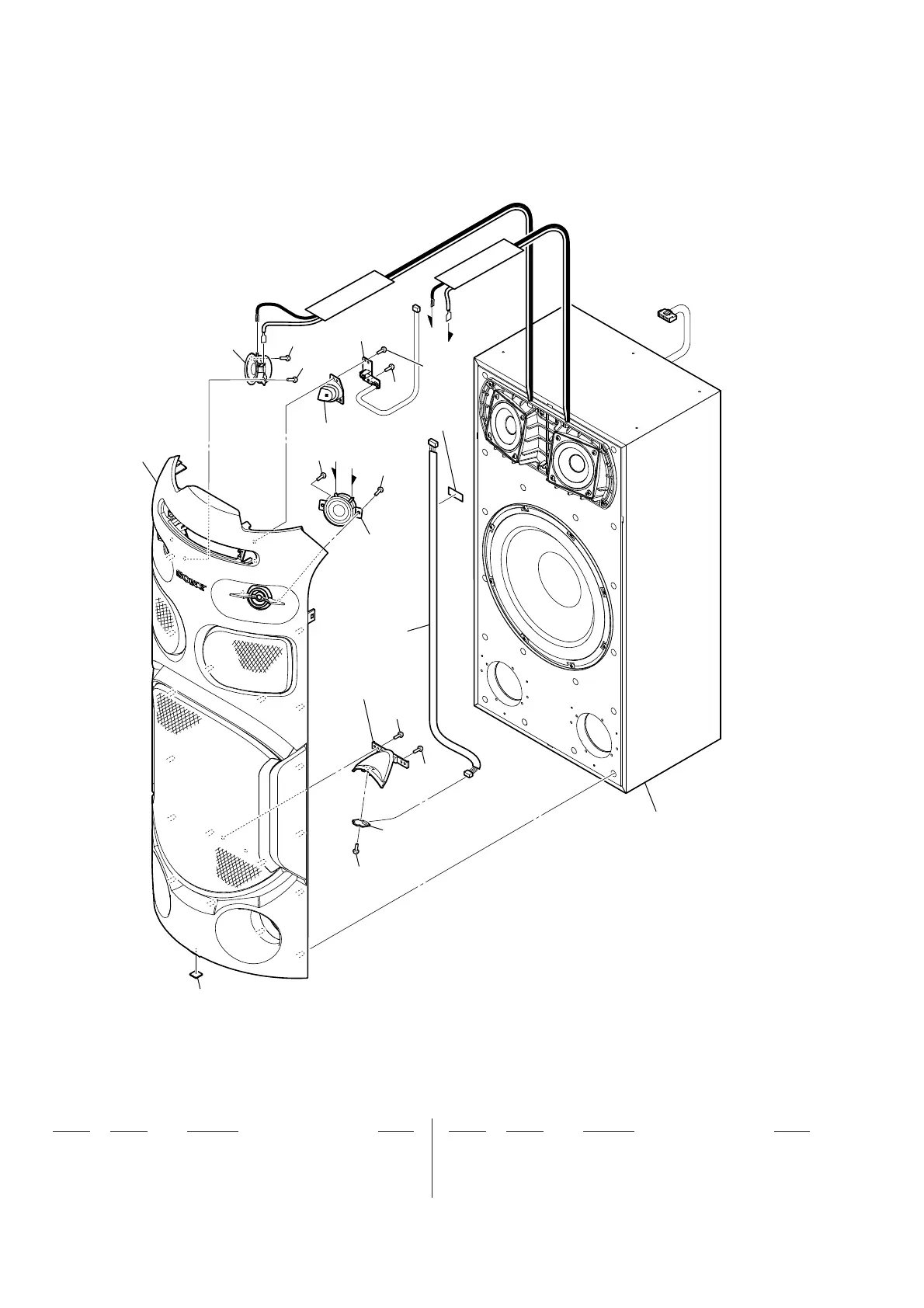

7-6. FRONT PANEL SECTION
O
O
P
P
not supplied
not supplied
not
supplied
not supplied
(IR board)
252
253
253
253
253
253
SP2
SP4
not supplied
speaker cabinet section
255
255
255
255
254
251
251 X-2595-366-1 PANEL, FRONT ASSY
252 4-592-164-01 FOOT, RUBBER
253 4-951-620-51 SCREW (2.6), +BVTP (L = 8.0 mm)
254 A-2192-240-A SW LED BOARD, COMPLETE
255 4-986-971-12 +BV TAPPING SCREW TYPE-2 3.5 (L = 10.0 mm)
SP2 1-859-277-11 LOUDSPEAKER (34 mm) (Tweeter: L-ch)
SP4 1-859-277-11 LOUDSPEAKER (34 mm) (Tweeter: R-ch)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

Sony MHC-V41D Specifications

General

Cassette deck	No
Product color	Black
Number of decks	1 deck(s)
Disc loading type	Tray
Optical disc player	Yes
Number of optical discs	1 discs
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Number of microphone inputs	2
Audio decoders	Dolby Digital
RMS rated power	- W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	1
Mid-range driver diameter	80 mm
Disc types supported	CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-RW
Playback disc formats	DVD-Video, VCD
Audio formats supported	MP3
Video formats supported	MPEG4, XVID
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	20
Power source	AC
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth	308 mm
Width	328 mm
Height	796 mm
Weight	13500 g
