MHC-V41D
30

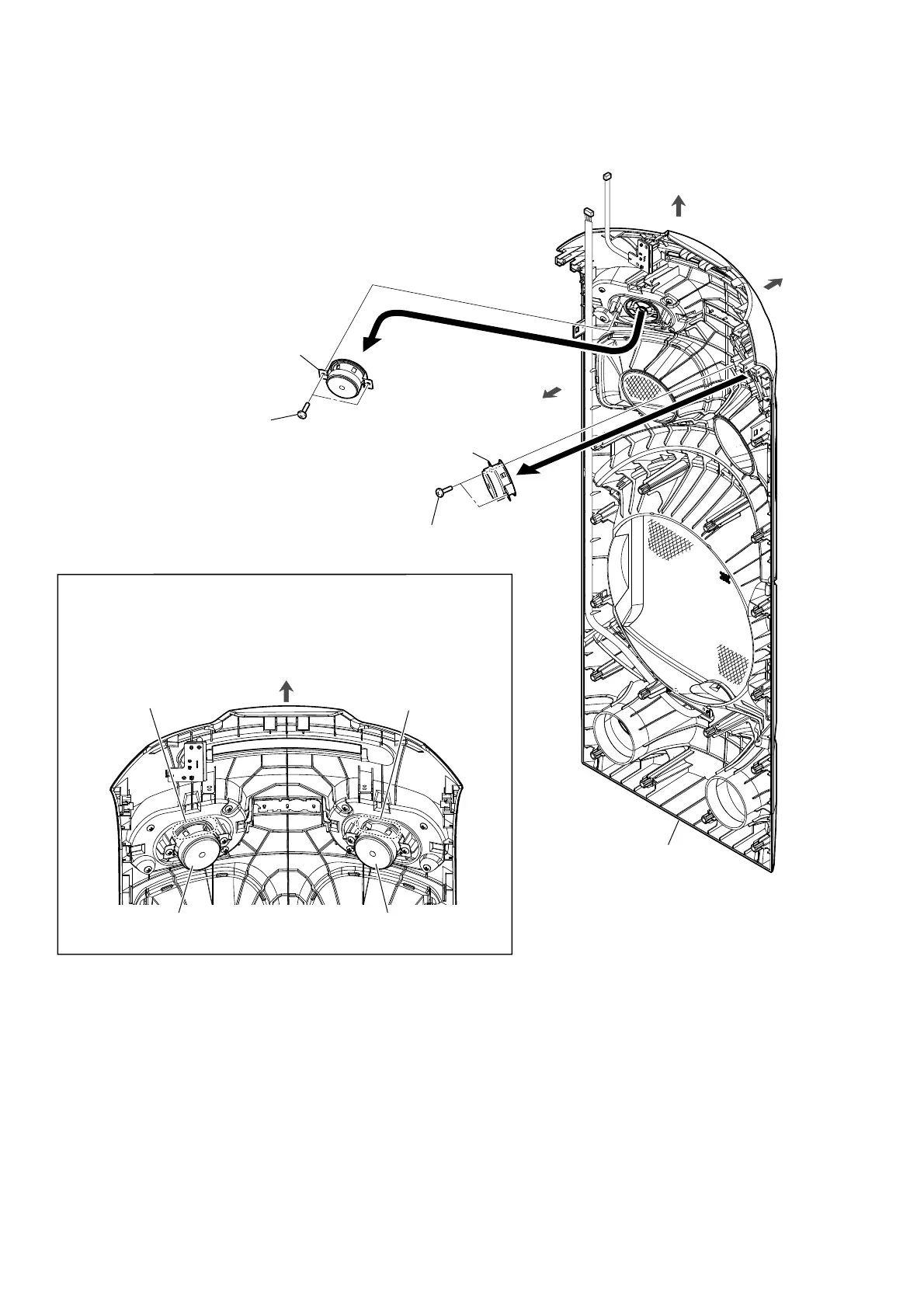

2-24. LOUDSPEAKER (TWEETER)
1 two screws
(BVTP3.5 u 10)
top side
front side
1 two screws
(BVTP3.5 u 10)
3 loudspeaker
(tweeter: R-ch)
(See Fig. Q)
3 loudspeaker
(tweeter: L-ch)
(See Fig. Q)
rear side
top side
front panel block
,QVWDOODWLRQGLUHFWLRQIRUWKHWZHHWHU
–)URQWSDQHOEORFNLQQHUYLHZ–
)LJ4!
Note:
When installing the tweeter, make the position
of terminals as shown in the figure below.
tweeter (L-ch)
tweeter (R-ch)
terminals position
terminals position
2
2
