Sony MHC-V6D Service Manual

MHC-V6D
35

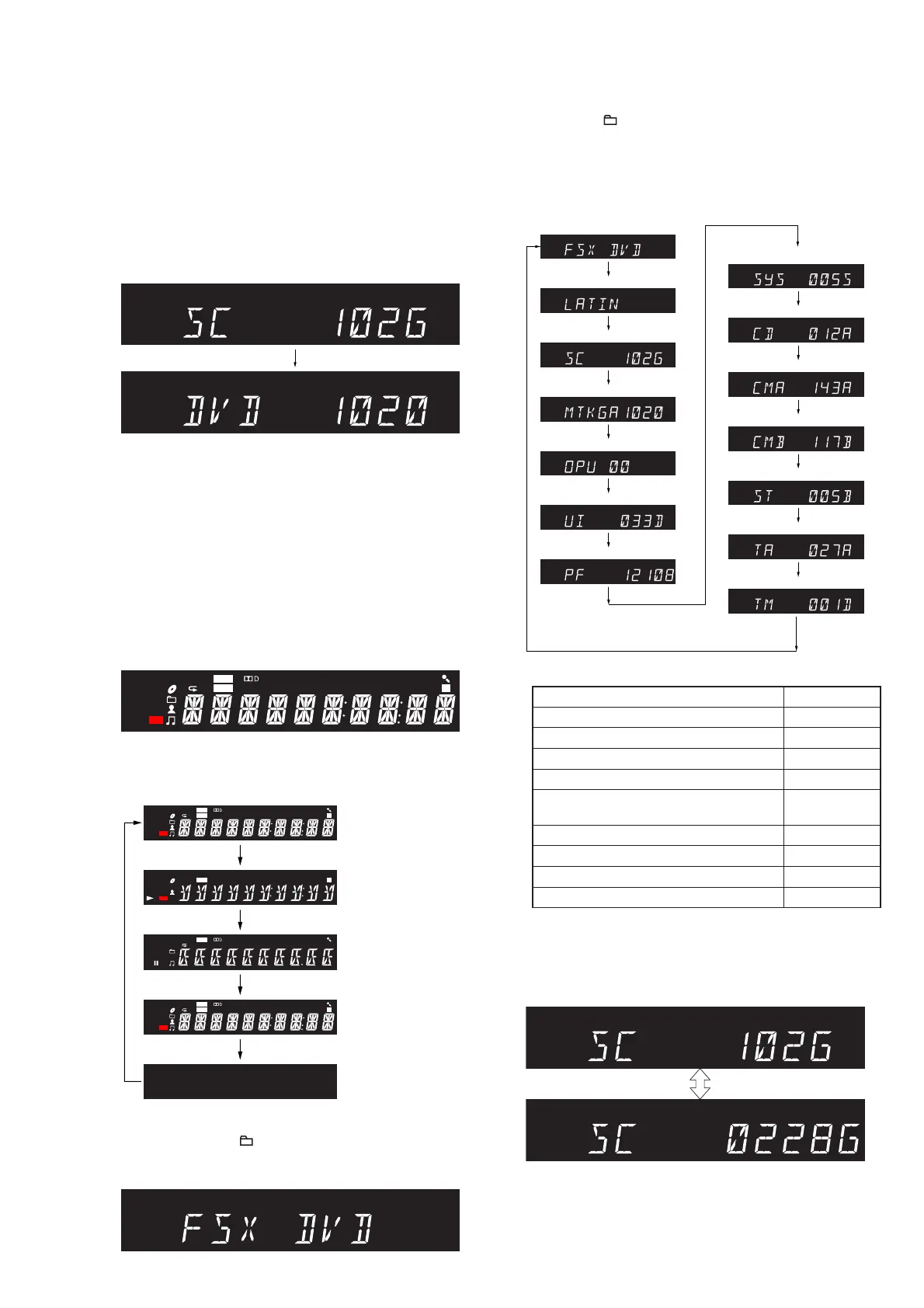

VERSION DISPLAY
It can confi rm the SC and MTK version.
Procedure:
1. Press the [
?
/
1
] button to turn the power on.
2. Press two buttons of the [ENTER] and [MOVIE/GAME] si-
multaneously for three seconds.
3. The SC and MTK version is displayed on the fl uorescent indi-
cator tube, and it returns to the display of the normal mode.
SC version
MTK version
(Displayed values in the above fi gure are example)
PANEL TEST
It can confi rm the fl uorescent indicator tube, LEDs, model name,
destination, software version and button.
Procedure:
1. Press the [
?
/
1
] button to turn the power on.
2. Press two buttons of the [ENTER] and [FOOTBALL] simulta-
neously for three seconds.
3. It enters the panel test mode, and all segments on the fl uores-
cent indicator tube and all LEDs light up.
Screen display
1
NX
REC
cPLAYcREC
FLDR SHUF
1 USB PGM
ALL USB SEARCH
USB B VIDEO PHOTO MUSIC TUNED MONO AUTO
USB A
%
NTSC SLEEP PRESETSTEREO
4. Each time the [ENTER] button is pressed, the screen display is
changed in order as follows.
All segments and
all LEDs turn on
Speaker illumination:
white
All segments and
all LEDs turn on
Speaker illumination:
blue
All segments and
all LEDs turn off
Speaker illumination:
off
Test pattern 1
Speaker illumination:
red
Test pattern 2
Speaker illumination:
green
1
REC
cPLAY
SHUF
1 USB
USB
USB B VIDEO PHOTO MUSIC MONO AUTO %
1
NX
REC
cPLAYcREC
FLDR SHUF
1 USB PGM
ALL USB SEARCH
USB B VIDEO PHOTO MUSIC TUNED MONO AUTO
USB A
%
NTSC SLEEP PRESETSTEREO
cREC
FLDR
PGM
ALL SEARCH
TUNED
USB A NTSC SLEEP PRESETSTEREO
1
NX
REC
cPLAYcREC
FLDR SHUF
1 USB PGM
ALL USB SEARCH
USB B VIDEO PHOTO MUSIC TUNED MONO AUTO
USB A
%
NTSC SLEEP PRESETSTEREO
5. When pressing the [ +PRESET+] button, the model name is
displayed on the fl uorescent indicator tube.
Screen display
6. Each time [ +PRESET+] button is pressed, tthe display
changes destination → SC version → MTK version → OPU
version → UI version → PF version → SYS version → CD
version → CMA version → CMB version → ST version →
TA version → TM version this order, and returns to the model
name display.
Model name
Destination
SC version
MTK version
OPU version
UI version
PF version
SYS version
CD version
CMA version
CMB version
ST version
TA version
TM version
(Displayed values in the above fi gure are example)
Destination Display
120V AC area in E model (E2)
LATIN
African model (E4)
EA3-2
Indian model (E12)
E12
Chilean and Peruvian models (E51)
LATIN
United Arab Emirates, Kuwait, Iraq, Kenya,
Tanzania and Nigeria models (E93)
EA3-2
South African model (SA2)
EA3-2
Mexican model (MX4)
MX
Singapore and Malaysia models (SP6)
ASIA-2
Thai model (TH1)
ASIA-2
7. When pressing the [x] button while the each version is dis-
played, month and day of the software creation is displayed.
When pressing the [
x] button again, the display returns to the
each version display.
Screen display
(Displayed values in the above fi gure are example)
– Continued on next page –
Ver. 1.3

Sony MHC-V6D Specifications

General

Type	Home audio mini system
Cassette deck	No
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Impedance	5 Ω
Bass reflex	-
Speaker type	3-way
RMS rated power	1440 W
Woofer diameter	250 mm
Tweeter diameter	40 mm
Number of speakers	5
Mid-range driver diameter	100 mm
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Display type	LCD
Audio (L/R) in	1
USB 2.0 ports quantity	2
Analog signal format system	NTSC, PAL
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	ENG, CHI (SIMPL), THA, CHI (TR)
Disc types supported	CD-RW, DVD-R, DVD, CD, DVD+R, DVD+R DL, CD-R, DVD+RW, DVD-RW
Audio formats supported	WMA, MP3
Power source	AC
Input voltage	120-240 V
Input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Equalizer modes	Custom, Pop, Flat, Rap, Rock

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
Package depth	417 mm
Package width	972 mm
Package height	381 mm
Package weight	21000 g
