202
Basic Procedure for Wipe Settings
Chapter 5 Wipes
Specifying the wipe direction (Direction)
You can specify the direction of the wipe: the regular direction is referred to as
“normal,” and the other direction as “reverse.” You can also select alternating
directions each time the transition is completed (normal/reverse mode).
To specify the wipe direction in a menu
1
In the M/E-1 >Wipe menu, select HF4 ‘Edge/Direction.’
The Edge/Direction menu appears.
2
In the <Direction> group, specify the wipe direction.
Normal: regular direction
Normal/Reverse: alternate between regular and reverse for each transition
Reverse: reverse direction to normal
To specify the wipe direction with a button in the transition control
block
In the transition control block of each of the M/E-1 to M/E-3 and PGM/PST
banks, press the following direction selection buttons.
NORM: Normal
NORM/REV: Normal/reverse
REV: Reverse

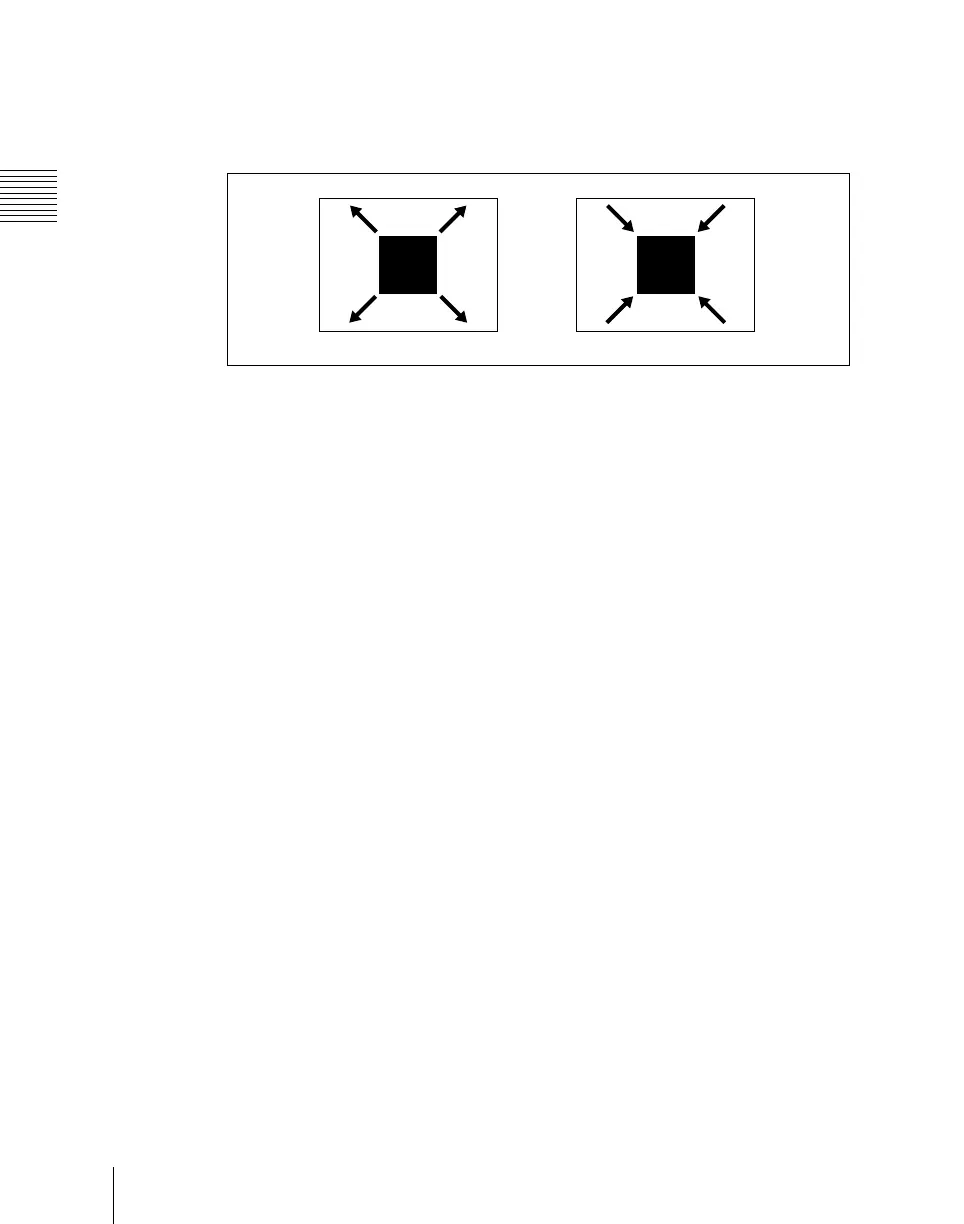

Normal
Reverse
