207Basic Procedure for Wipe Settings
Chapter 5 Wipes
Setting the wipe position (Positioner)
When you turn on this function, you can move the wipe pattern to any position.
• The parameter H Position controls the horizontal position of the pattern.
A negative value moves the pattern to the left, and a positive value moves the
pattern to the right.
• The parameter V Position controls the vertical position of the pattern.
A negative value moves the pattern down, and a positive value moves the
pattern up.
1
In the M/E-1 >Wipe menu, select HF5 ‘Main Modify.’
The Main Modify menu appears.
2
In the <Position> group, press [Position], turning it on, and set the pattern
position.
To return the pattern position to the center of the screen
In the <Position> group, press [Center].
To move the pattern from its current position to the center through
the course of a transition
In the <Position> group, press [Auto Center], turning it on.
To set the wipe position using the trackball
You can also set the wipe position using the trackball in the device control
block.
1
In the device control block, press the [M/E1] or [P/P] button, turning it on.

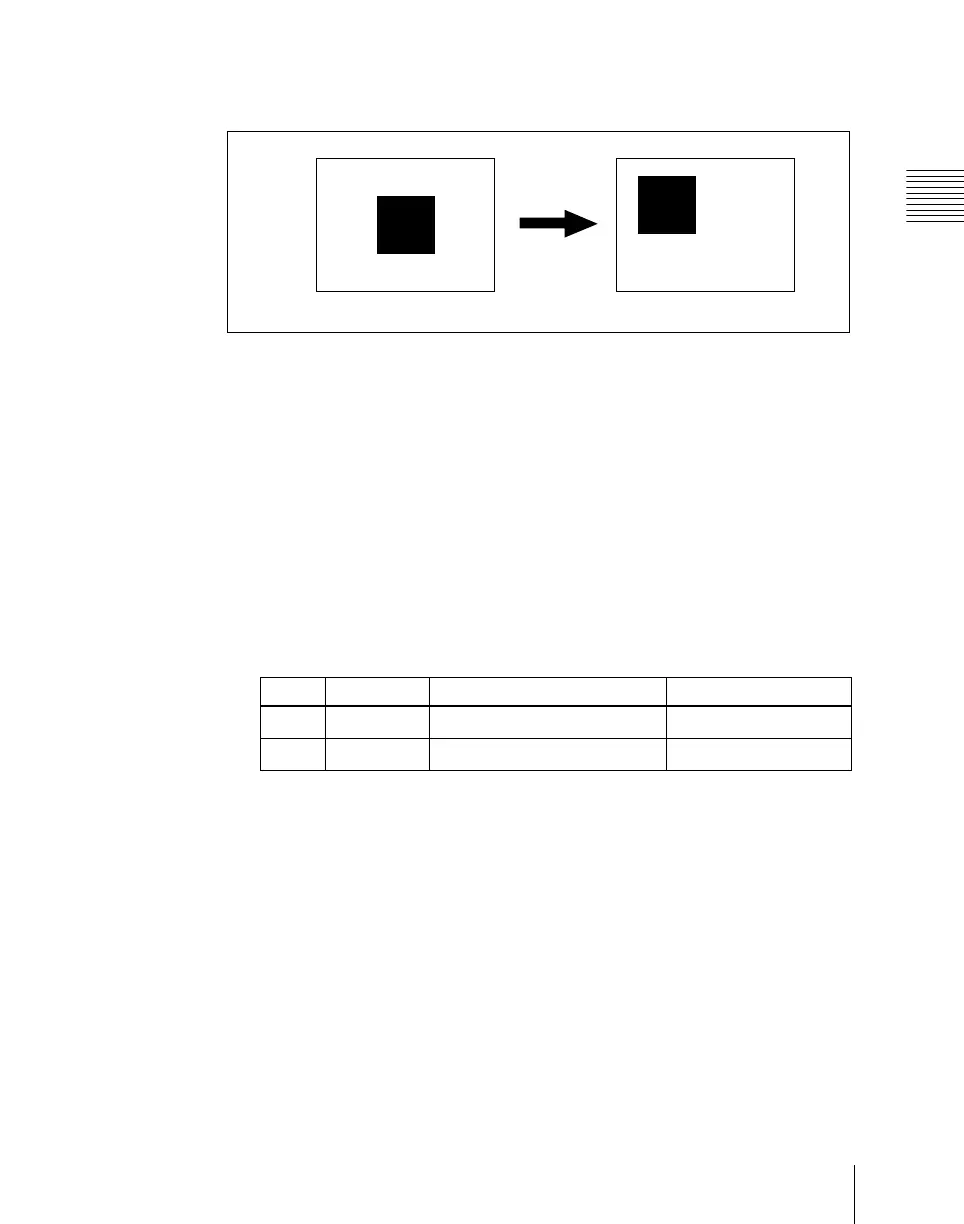

Positioner onPositioner off
Knob Parameter Adjustment Setting values
1 Position H Horizontal position
–200.00 to +200.00
2 Position V Vertical position
–200.00 to +200.00
To Next Page
