Sony PMW-EX30 - Page 19

19
Names and Functions of Parts
Chapter 1 Overview
a DC IN voltage indication
Indicates the voltage of the power source
input the DC IN connector.
b Operation mode
Indicates the current operating modes.
c Media status indication
Indicates which card slot is active when
SxS memory cards are installed in both
slots A and B.
d Time data indication
Indicates the time data type indicator and
timecode or user bit.
Each press of the TC/UB button switches
the time data type indicator as follows.
• In recording or E-E mode
TCG: Timecode generated by the timecode
generator
UBG: User bits generated by the timecode
generator
• During playback
TCR: Timecode read by the timecode
reader
UBR: User bits read by the timecode reader

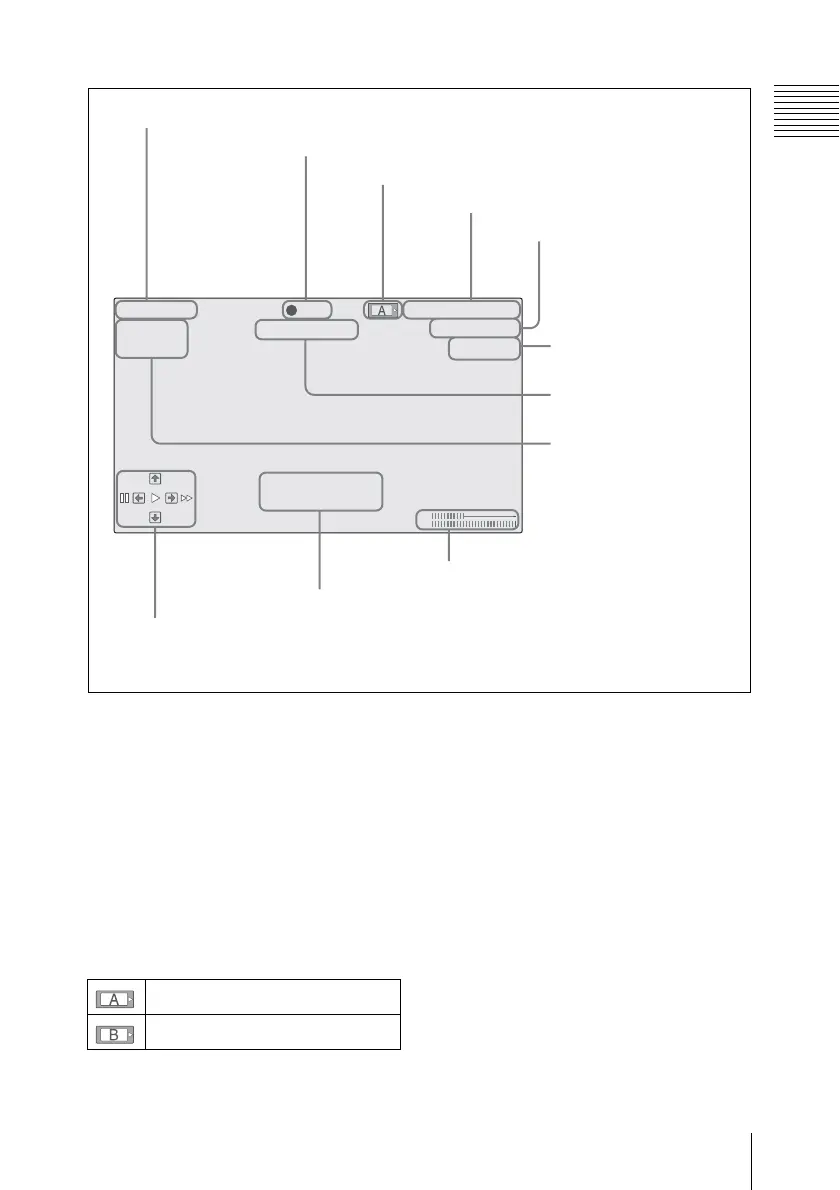

DC IN12.0V REC
A: 25min Madia Near full
B: 50min
Restore Media (B)
Done
TCG 00:00:00:00
H
Q 1080/24P
HD-SDI in
CH1
CH2
PRV
NXT
1 DC IN voltage indication
2 Operation mode
3 Media status indication
4 Time data indication
8 Media remaining
indication (in
recording/E-E mode)
7 Alarm/error message
area
0 Notice/confirmation message area
qa Operation guidance area
(during playback)
9 Audio level meters
6 Video input signal
indication (in recording/
E-E mode)
5 Video format indication
(in recording/E-E mode)
Clip No. and total number
of clips indication (during
playback)
Memory card in slot A is active.
Memory card in slot B is active.
