Names and Functions of Parts
Chapter 1 Overview

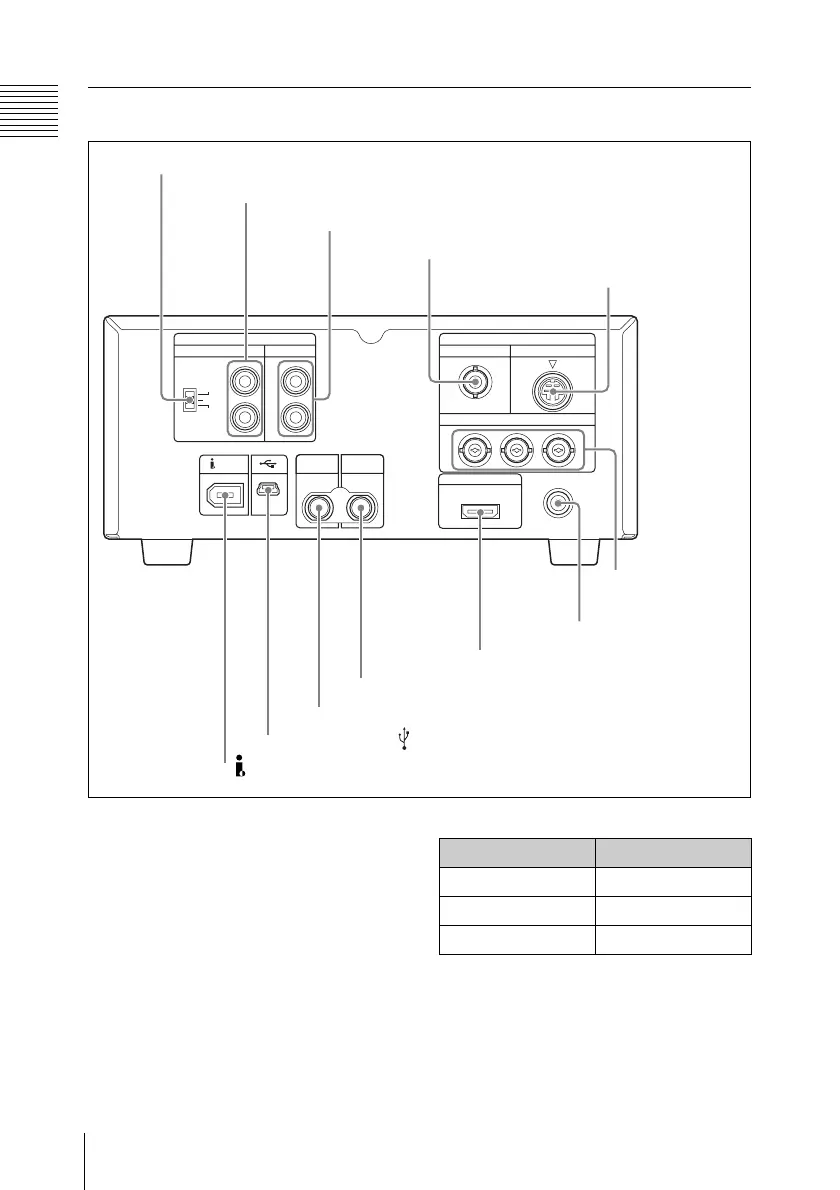

Rear panel
a AUDIO INPUT LEVEL switch
Depending on the connector of the device
connected to the AUDIO INPUT CH-1 and
CH-2 connectors, set the audio input level
as follows.
For an XLR connector: +4 or –2
For a phono jack: –10
The following table shows the relation
between the switch position and maximum
audio level available.
1 AUDIO INPUT LEVEL switch
2 AUDIO INPUT CH-1 and CH-2 connectors
3 AUDIO OUTPUT CH-1/3 and CH-2/4 connectors
4 COMPOSITE connector
5 S-VIDEO
connector
7 DC IN connector
8 HDMI connector
9 HD/SD SDI OUTPUT connector
0 HD SDI INPUT connector
qa USB connector ( )
qs HDV/DV connector
6 COMPONENT
connectors
Position Audio level
–10 +10 dBu
–2 +18 dBu
+4 +24 dBu
