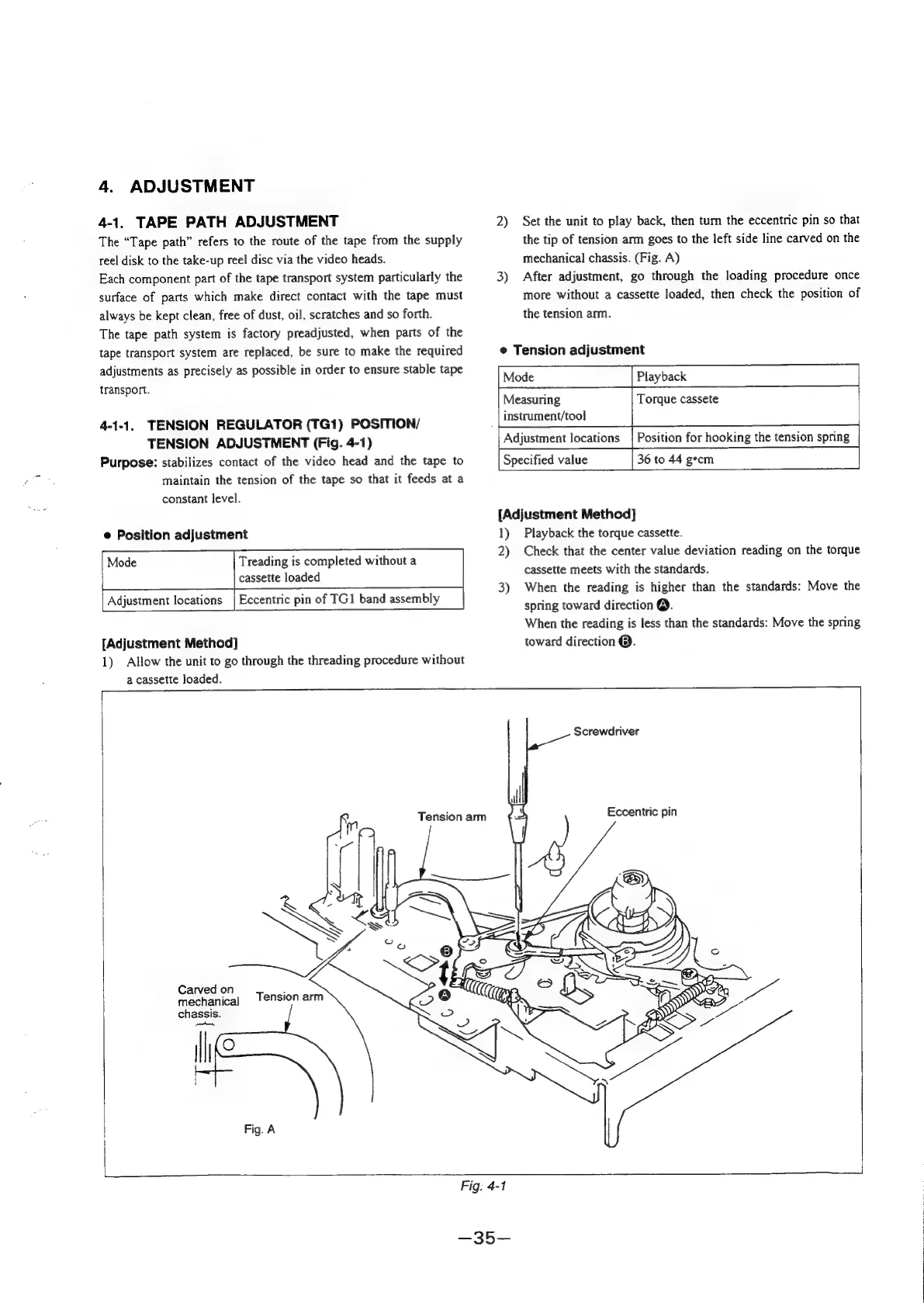

4. ADJUSTMENT
4-1. TAPE PATH ADJUSTMENT
The “Tape path” refers to the route of the tape from the supply
reel disk to the take-up reel disc via the video heads.
Each component part of the tape transport system particularly the
surface of parts which make direct contact with the tape must
always be kept clean, free of dust, oil, scratches and so forth.
The tape path system is factory preadjusted, when parts of the
tape transport system are replaced, be sure to make the required
adjustments as precisely as possible in order to ensure stable tape
transport.
4-1-1. TENSION REGULATOR (TG1) POSITION/
TENSION ADJUSTMENT (Fig. 4-1)
Purpose: stabilizes contact of the video head and the tape to
maintain the tension of the tape so that it feeds at a
constant level.
e Position adjustment
Mode Treading is completed without a
cassette loaded
Adjustment locations | Eccentric pin of TG1 band assembly
[Adjustment Method]
1) Allow the unit to go through the threading procedure without
a cassette loaded.
Carved
on
;
mechanical
Tension
arm
chassis.
ree,
IIS
Fig.
A
Tension arm
2) Set the unit to play back, then tum the eccentric pin so that
the tip of tension arm goes to the left side line carved on the
mechanical chassis. (Fig. A)
3) After adjustment, go through the loading procedure once
more without a cassette loaded, then check the position of
the tension arm.
@ Tension adjustment
Measuring Torque cassete
instrument/tool
Adjustment locations | Position for hooking the tension spring
Specified value 36 to 44 gecm
[Adjustment Method]
1) Playback the torque cassette.
2) Check that the center value deviation reading on the torque
cassette meets with the standards.
3) When the reading is higher than the standards: Move the
spring toward direction @.
When the reading is less than the standards: Move the spring
toward direction ®.
Screwdriver
Eccentric pin
Fig: 4-1
