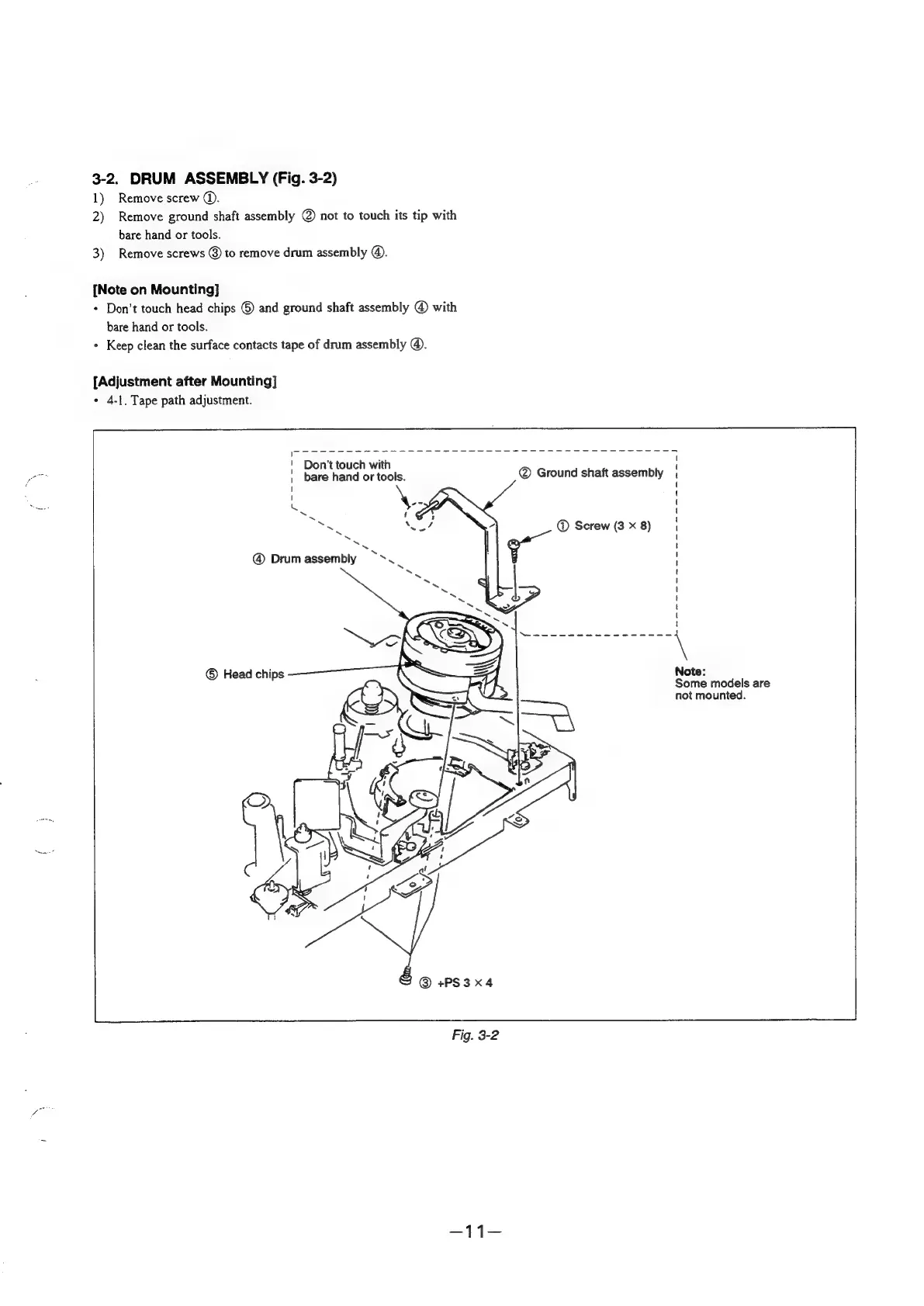

3-2.
DRUM
ASSEMBLY
(Fig.
3-2)
1)
Remove
screw
@.
2)
Remove
ground
shaft
assembly
@)
not
to
touch
its
tip
with
bare
hand
or
tools.
3)
Remove
screws
@)
to
remove
drum
assembly
©.
[Note
on
Mounting]
+
Don’t touch
head
chips
©
and
ground
shaft
assembly
@
with
bare
hand
or
tools.
+
Keep
clean
the
surface
contacts
tape
of
drum
assembly
@.
[Adjustment
after
Mounting]
¢
4-1.
Tape
path
adjustment.
Don’t
touch
with
bare
hand
or
tools.
@
Ground
shaft
assembly
|
|
|
i
i
if
@
Screw
(3
x
8)
©
Head
chips
@
+PS3x4
Fig.
3-2
Note:
Some
models
are
not
mounted.
