Sony SLV-360 - Board

2-3.

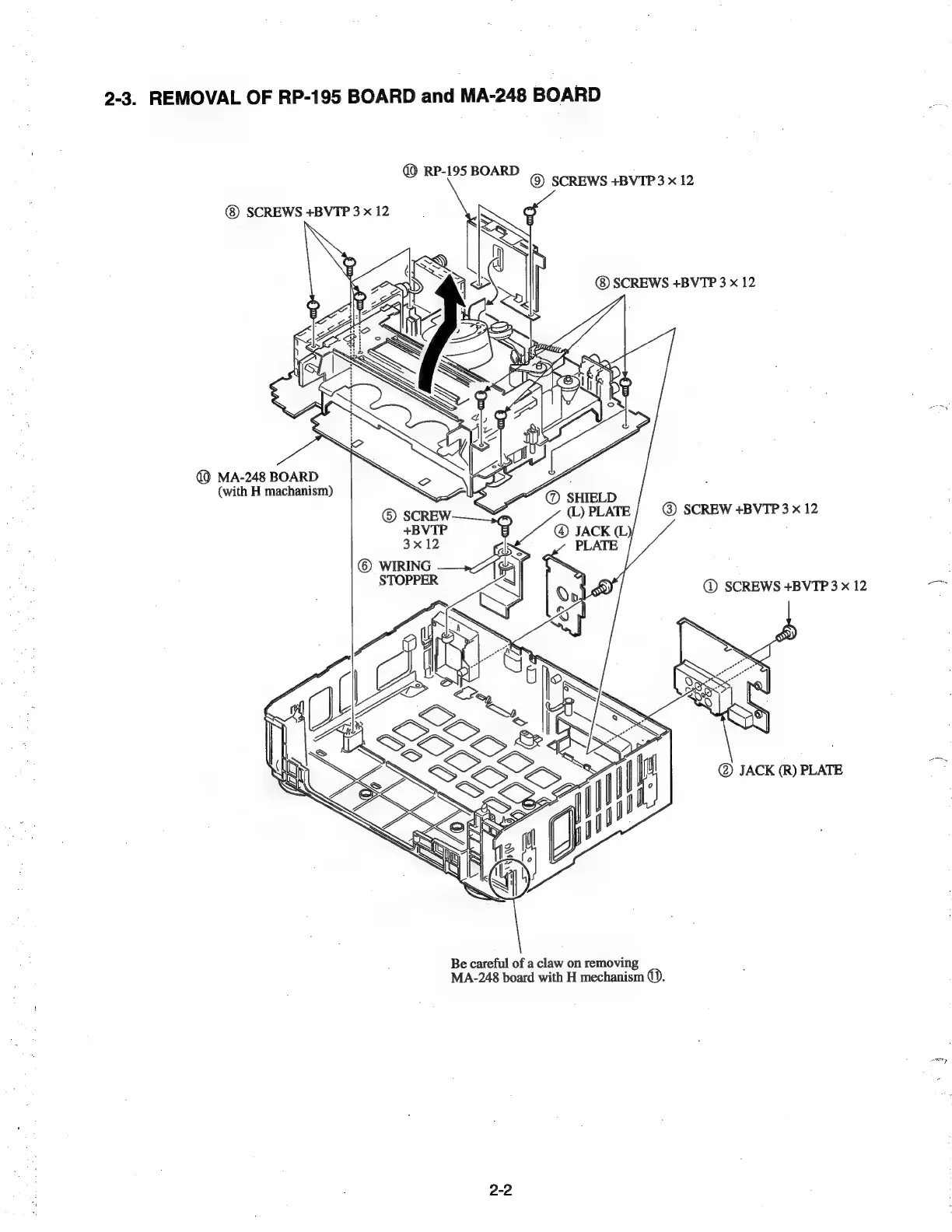

REMOVAL
OF
RP-195
BOARD
and
MA-248
BOARD
@ RP-195 BOARD
@® SCREWS +BVTP 3 x 12
SCREWS +BVTP 3 x 12
@® MA-248 BOARD
(with H machanism)
@ SHIELD
(L)PLATE/
@
SCREW
+BVTP3x
12
@® JACK (L)
PLATE
Be careful of a claw on removing
MA-248 board with H mechanism ().
Ly
