Sony SLV-360 - FL Block Assembly (Fig. 3-1); Mainly Mechanical Parts

3. MAINLY MECHANICAL PARTS REPLACEMENT
Notes: 3-1. FL BLOCK ASSEMBLY (Fig. 3-1)
* Refer to the service manual, “DISASSEMBLY” for removal of 1) Remove screws ©.
the cabinet and boards. 2) Remove FL block assembly @ in the arrow @ direction.
+ On mounting, while referring to notes on mounting perform Note: Be careful not to damage claws on the bottom and front.
reversely in the removal order.
+ When replacing greased parts, grease them in the same way. [Note on Mounting]
* Do not oil, grease or touch with bare hands the surfaces + First insert claws on the bottom and front not to damage.
contacts tape of guides and brake shoes. + Engage FL slide plate to FL driving gear with slightly sliding
* Install gears to engage each other. FL slide plate. (Fig. A)
* Basically, disassembling and assembling should be done in the + Keep clean top sensor and end sensor luminous plates. (Refer
unthreading-end condition. to 1-3.)
@ FL block assembly
@ Screws (3 x 8)
Slightly slide FL slide plate.
FL driving
gear
Be careful not to
damage claws.
Front
Rear
— Side view —

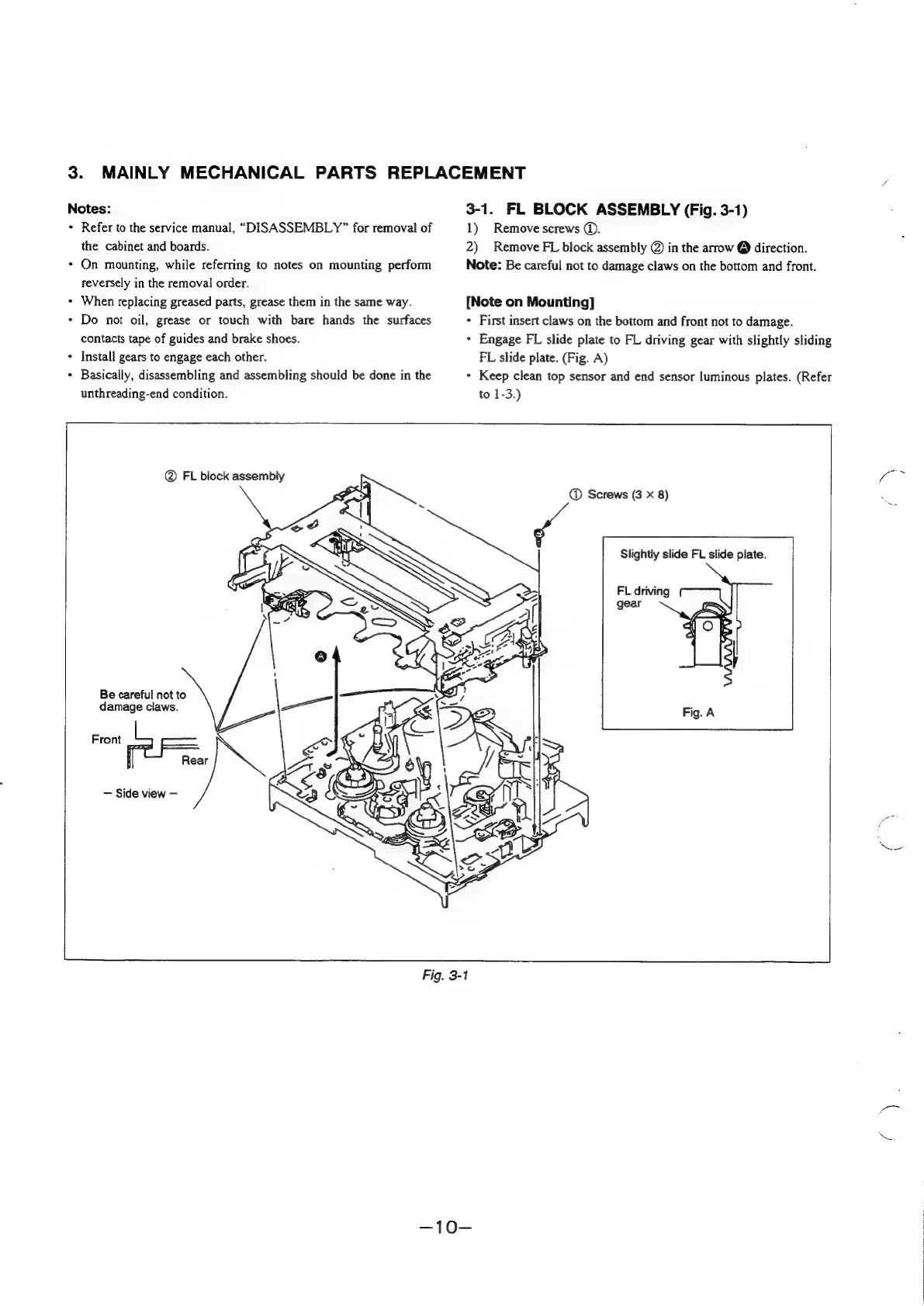

Fig. 3-1
)
/
