Sony SLV-360 - TG8 Holder (Fig. 3-16)

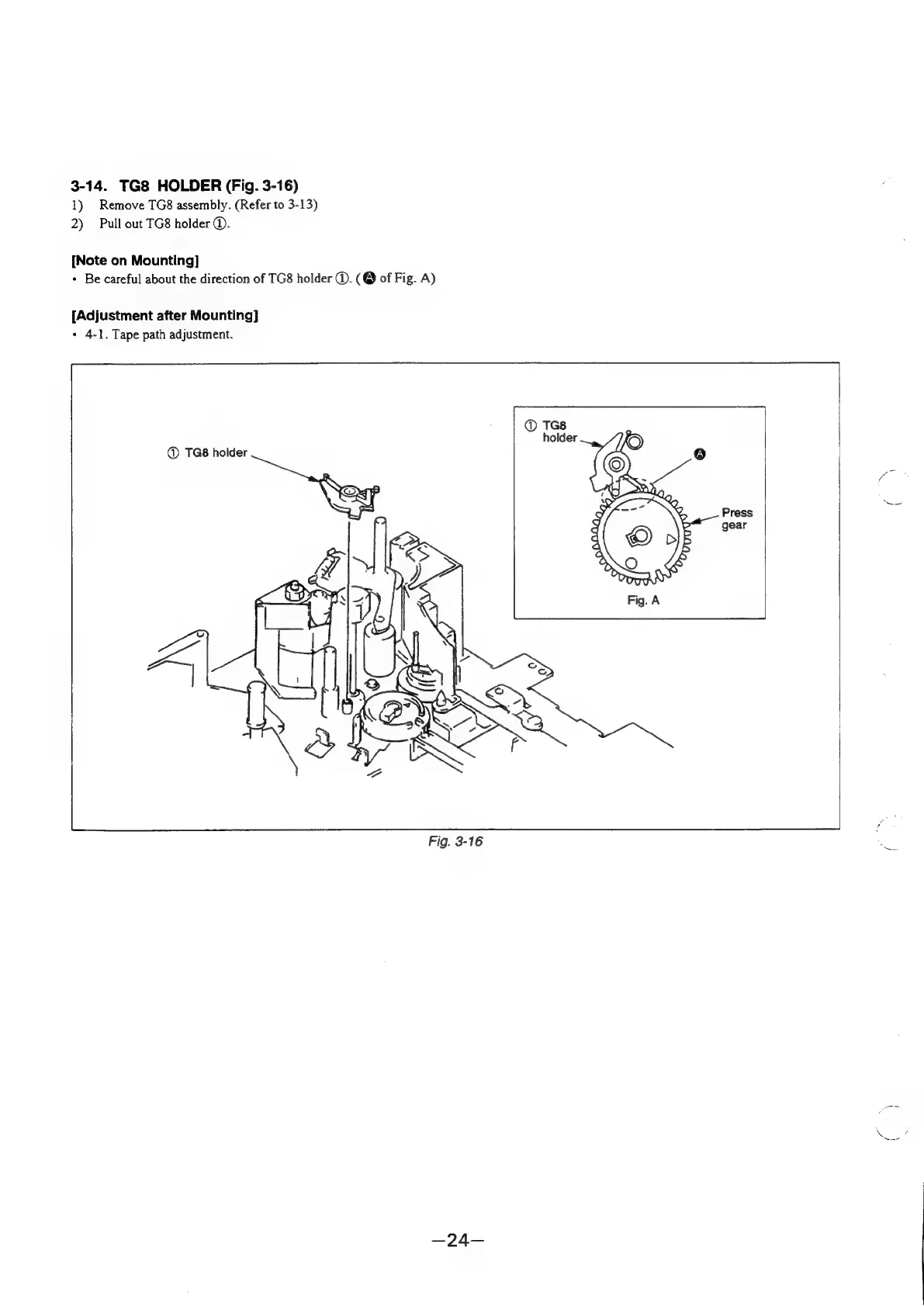

3-14. TG8 HOLDER (Fig. 3-16)
1) Remove TG8 assembly. (Refer to 3-13)
2) Pull out TG8 holder @.
[Note on Mounting]
* Be careful about the direction of TG8 holder @. (@ of Fig. A)
[Adjustment after Mounting]
+ 4-1. Tape path adjustment.
@ TG8 holder
Fig. 3-16
