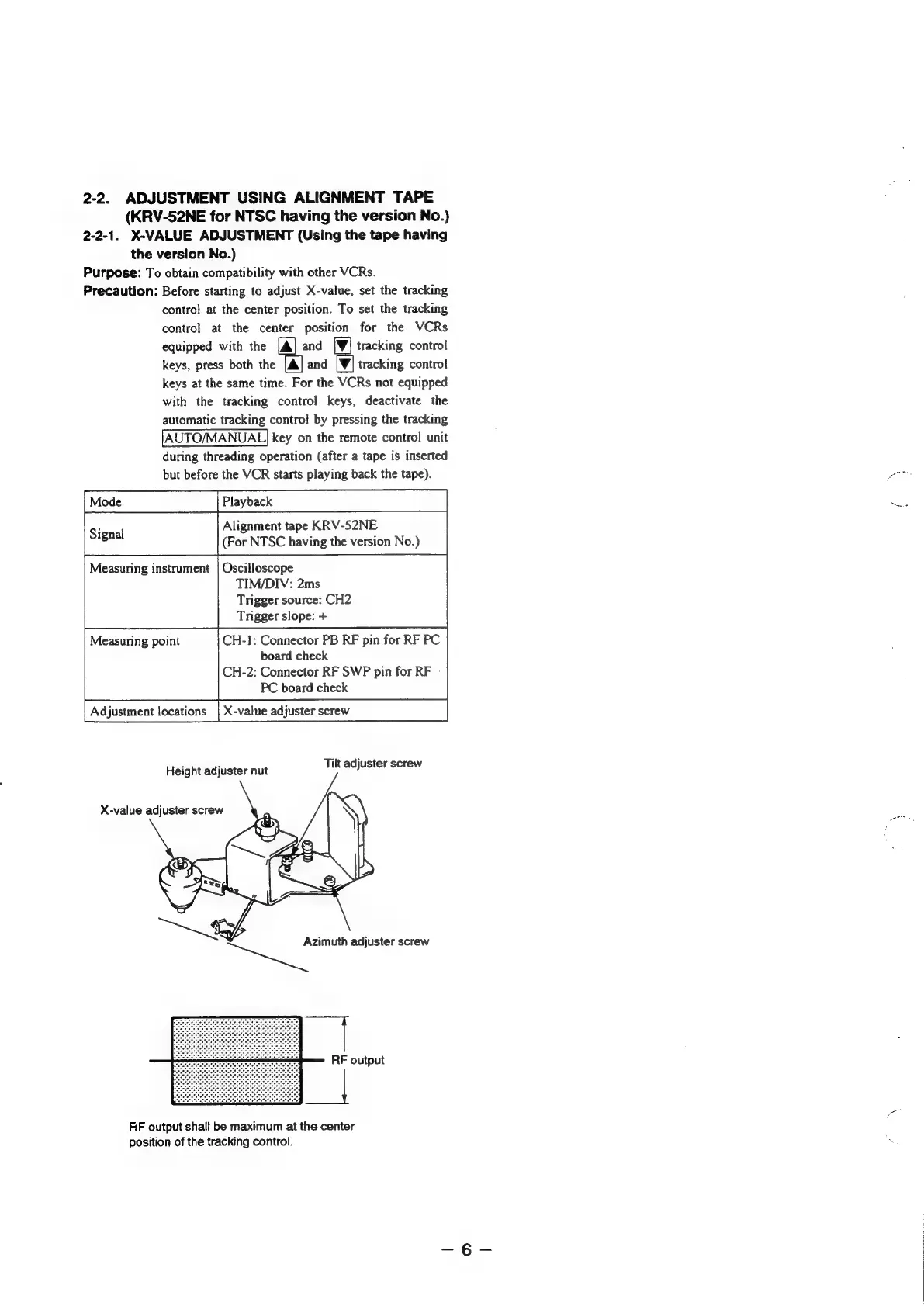

2-2. ADJUSTMENT USING ALIGNMENT TAPE
(KRV-52NE for NTSC having the version No.)
2-2-1. X-VALUE ADJUSTMENT (Using the tape having
the version No.)
Purpose: To obtain compatibility with other VCRs.
Precaution: Before starting to adjust X-value, set the tracking
contro! at the center position. To set the tracking
control at the center position for the VCRs
equipped with the (A) and hd tracking control
keys, press both the [A] and [¥| tracking control
keys at the same time. For the VCRs not equipped
with the tracking contro! keys, deactivate the
automatic tracking contro! by pressing the tracking
key on the remote control unit
during threading operation (after a tape is inserted
but before the VCR starts playing back the tape). an
Alignment tape KRV-52NE
(For NTSC having the version No.)
Measuring instrument | Oscilloscope
TIM/DIV: 2ms
Trigger source: CH2
Trigger slope: +
CH-1: Connector PB RF pin for RF PC
board check
CH-2: Connector RF SWP pin for RF
PC board check
Adjustment locations | X-value adjuster screw
Measuring point
Height adjuster nut Tik adjuster screw
X-value adjuster screw
RF output
FF output shall be maximum at the center
position of the tracking control.
