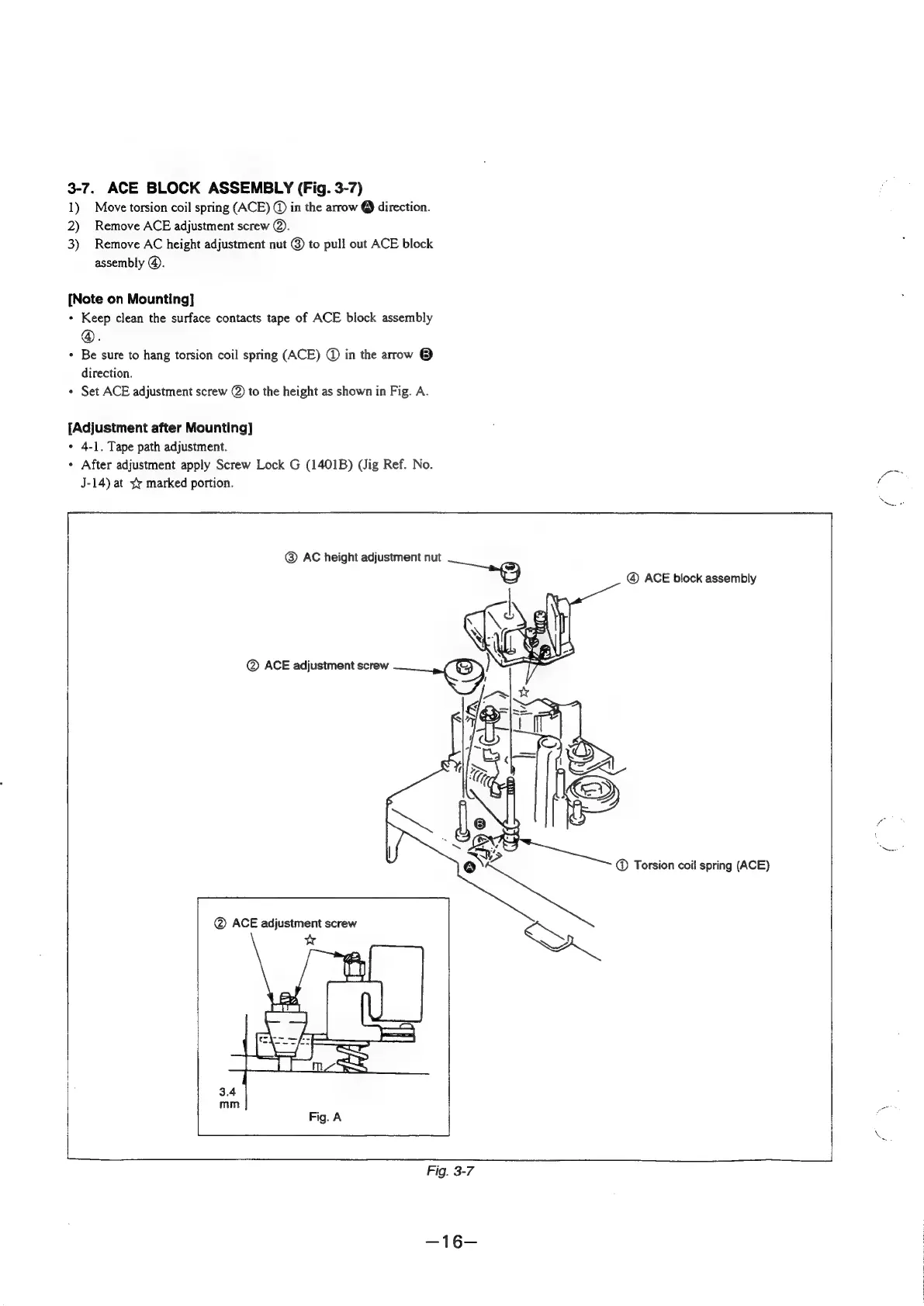

3-7.
ACE
BLOCK
ASSEMBLY
(Fig.
3-7)
1)
Move
torsion
coil
spring
(ACE)
©
in
the
arrow
@
direction.
2)
Remove
ACE
adjustment
screw
@).
3)
Remove
AC
height
adjustment
nut
@)
to
pull
out
ACE
block
assembly
@.
[Note
on
Mounting]
*
Keep
clean
the
surface
contacts
tape
of
ACE
block
assembly
@.
+
Be
sure
to
hang
torsion
coil
spring
(ACE)
©
in
the
arrow
@
direction.
+
Set
ACE
adjustment
screw
@)
to
the
height
as
shown
in
Fig.
A.
[Adjustment
after
Mounting]
+
4-1.
Tape
path
adjustment.
+
After
adjustment
apply
Screw
Lock
G
(1401B)
(Jig
Ref.
No.
J-14)
at
+&
marked
portion.
®
AC
height
adjustment
nut
B
@
ACE
block
assembly
@
ACE
adjustment
screw
Fig.
3-7
—16—
