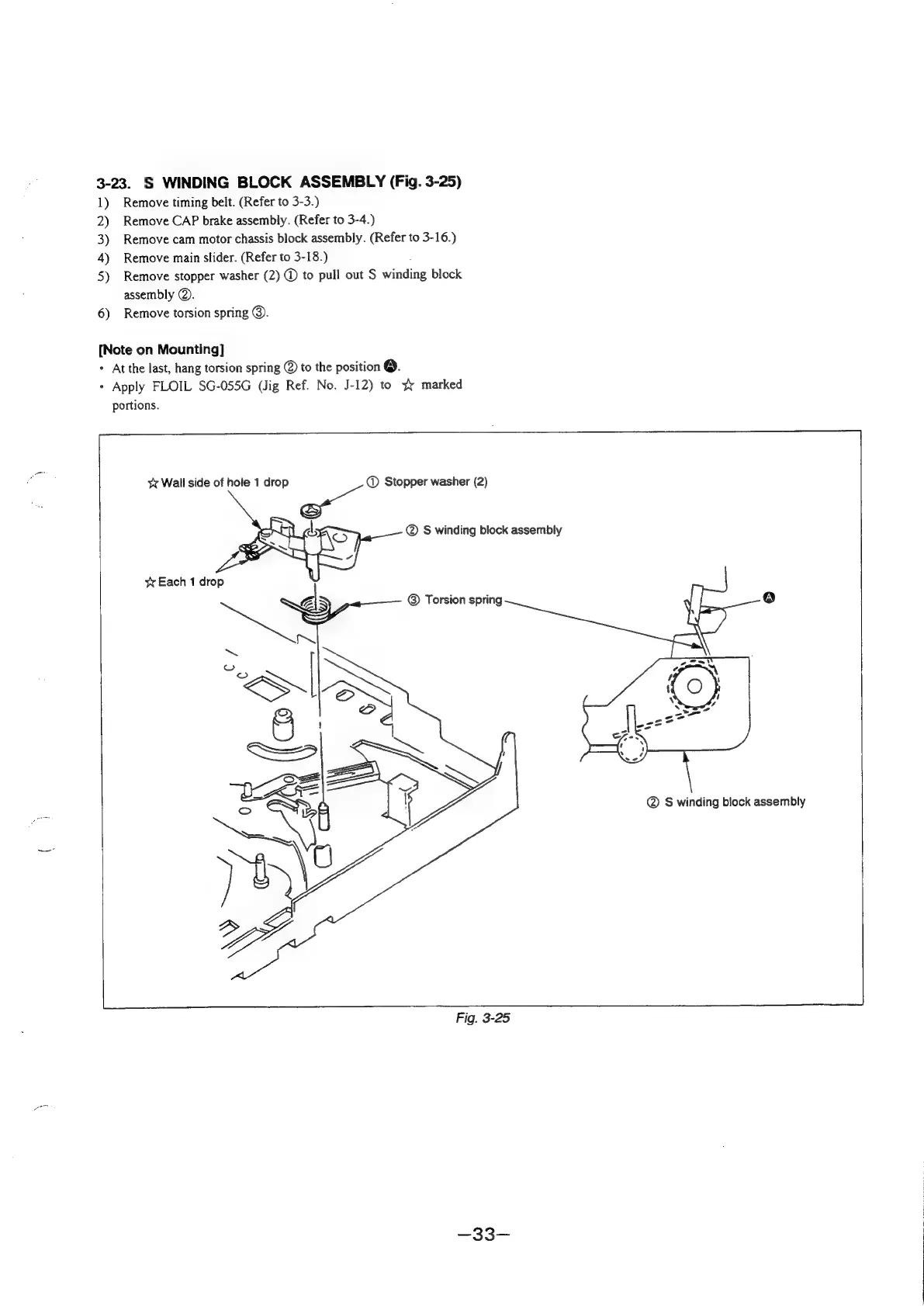

3-23. S WINDING BLOCK ASSEMBLY (Fig. 3-25)
1) Remove timing belt. (Refer to 3-3.)
2) Remove CAP brake assembly. (Refer to 3-4.)
3) Remove cam motor chassis block assembly. (Refer to 3-16.)
4) Remove main slider. (Refer to 3-18.)
5) Remove stopper washer (2) @ to pull out S winding block
assembly @).
6) Remove torsion spring @).
[Note on Mounting]
+ At the last, hang torsion spring © to the position @.
* Apply FLOIL SG-055G (Jig Ref. No. J-12) to yy marked
portions.
xx Wall side of hole 1 drop
@ Stopper washer (2)
@ S winding block assembly
® Torsion spring
@ S winding block assembly
Fig. 3-25
