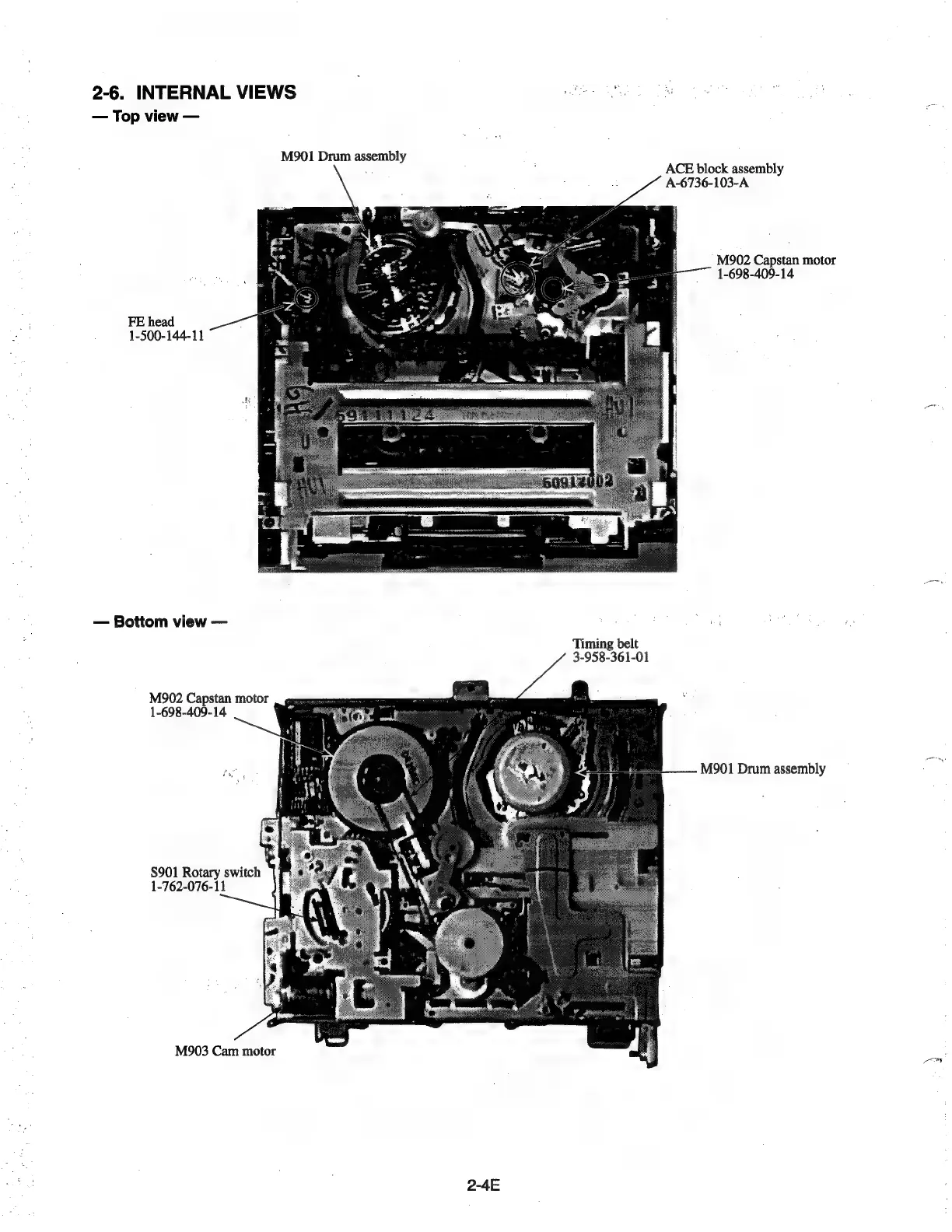

2-6. INTERNAL VIEWS
— Top view —
M901 Drum assembly
ACE block assembly
A-6736-103-A
M902 Capstan motor
1-698-409-14
FE head
1-500-144-11
— Bottom view —
Timing belt
3-958-361-01
M902 Capstan motor | gers _ nicer
1-698-409-14 ’ :
M901 Drum assembly
$901 Rotary switch
1-762-076-11
M903 Cam motor
Oy
2-4E
