Sony SLV-360 - Capstan Motor (Fig. 3-11)

3-9. CAPSTAN MOTOR (Fig. 3-11)
1) Remove timing belt. (Refer to 3-3.)
2) Remove CAP brake assembly. (Refer to 3-4.)
3) Remove screws @ to pull out capstan motor @).
[Note on Mounting]
+ Keep clean the surface contacts tape of capstan motor @).
* On tightening screws (), first tighten screw A temporarily, next
tighten screws in the order B to C to A.
[Adjustment after Mounting]
« 4-1. Tape path adjustment.
@ Screws (2.6)
@ Capstan motor

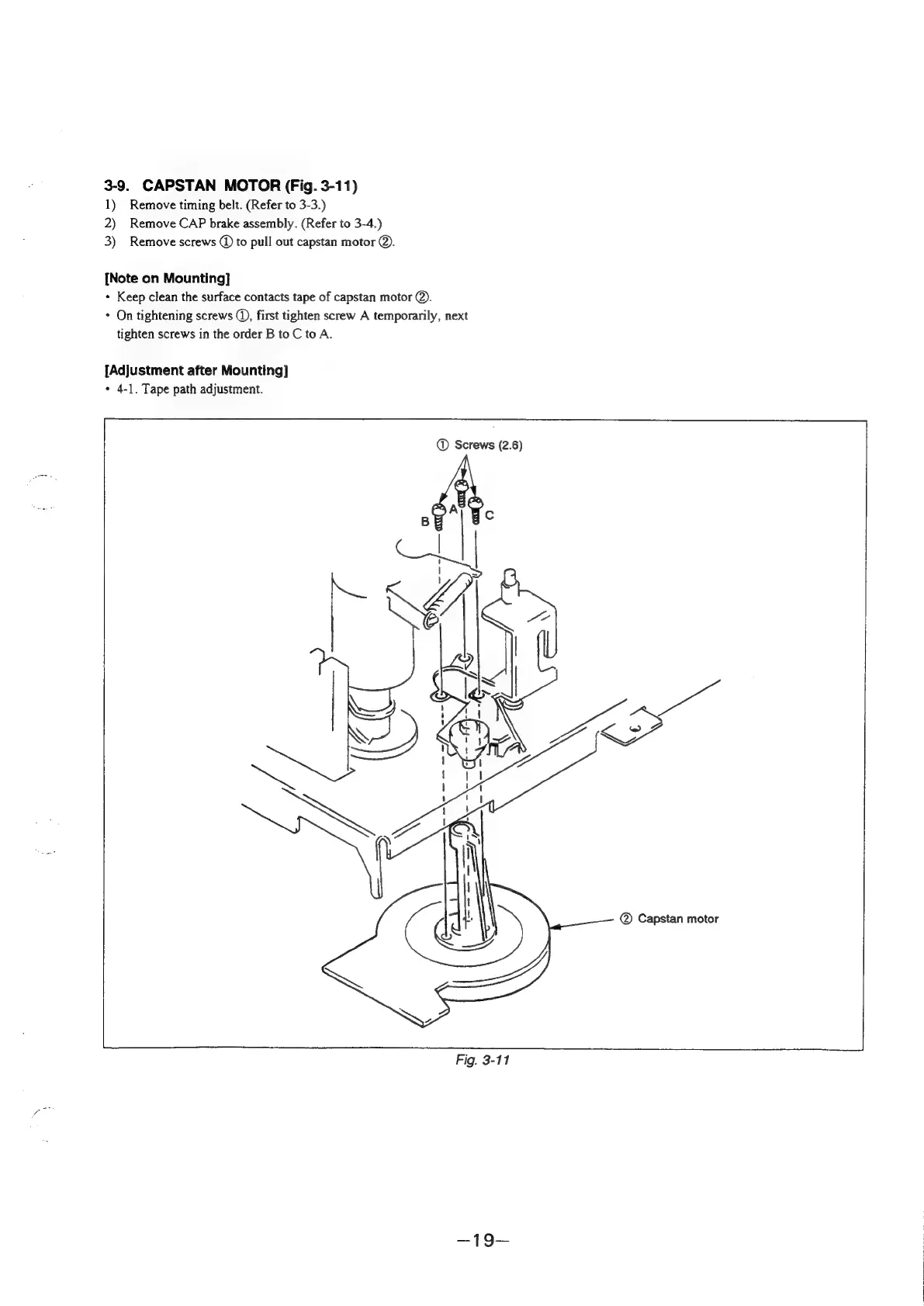

Fig. 3-11
