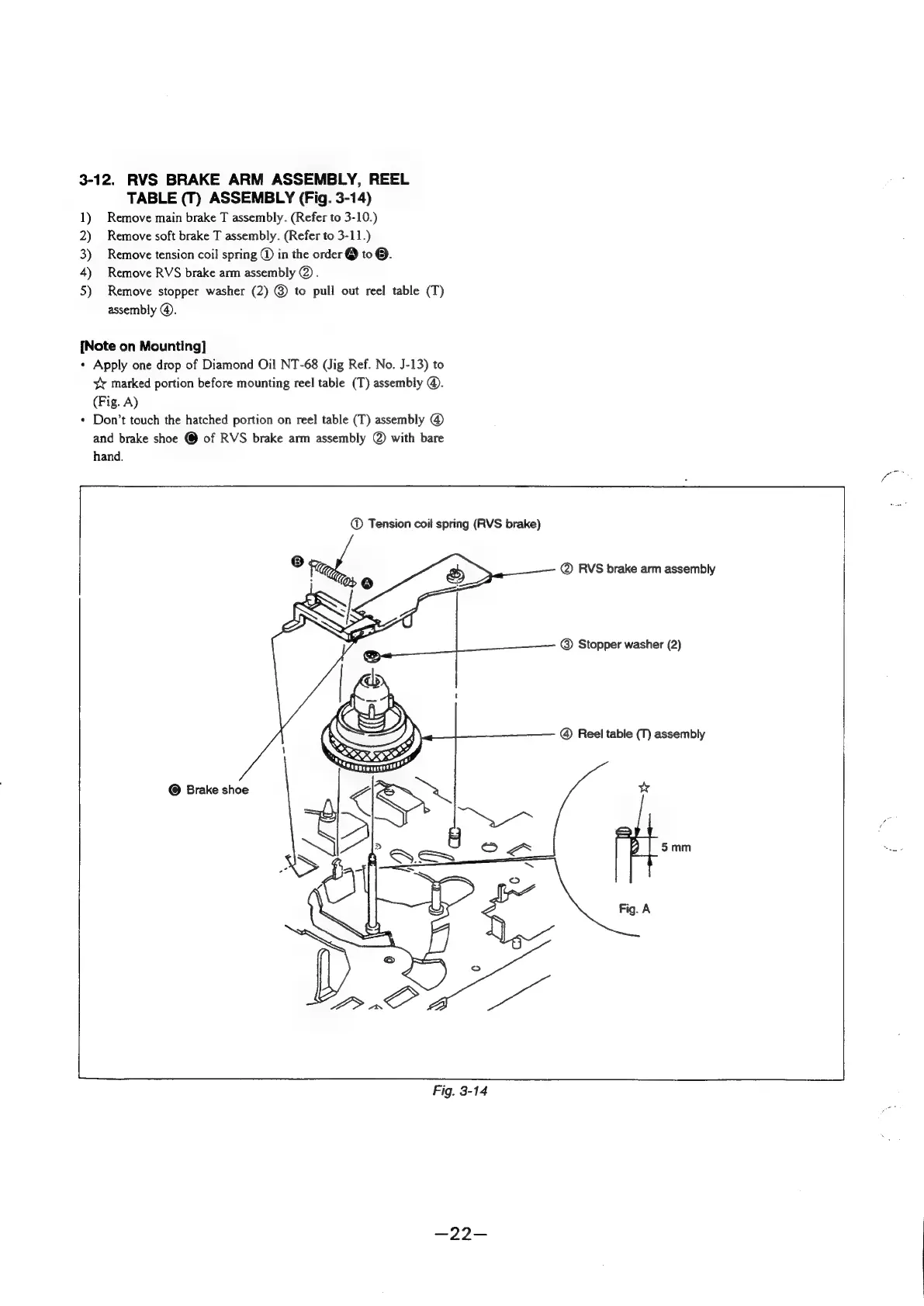

3-12.
RVS
BRAKE
ARM
ASSEMBLY,
REEL
TABLE
(T)
ASSEMBLY
(Fig.
3-14)
1)
Remove
main
brake
T
assembly.
(Refer
to
3-10.)
2)
Remove
soft
brake
T
assembly.
(Refer
to
3-11.)
3)
Remove
tension
coil
spring
@
in
the
order
@
to
©.
4)
Remove
RVS
brake
arm
assembly
@).
5)
Remove
stopper
washer
(2)
©
to
pull
out
reel
table
(T)
assembly
@.
[Note
on
Mounting]
«
Apply
one
drop
of
Diamond
Oil
NT-68
(Jig
Ref.
No.
J-13)
to
zr
marked
portion
before
mounting
reel
table
(T)
assembly
@.
(Fig.
A)
+
Don’t
touch
the
hatched
portion
on
reel
table
(T)
assembly
©
and
brake
shoe
@
of
RVS
brake
arm
assembly
@
with
bare
hand.
@
Tension
coil
spring
(RVS
brake)
@
RVS
brake
arm
assembly
@
Stopper
washer
(2)
@
Reel
table
(T)
assembly
@
Brake
shoe
Fig.
3-14
99
=.
