Sony SLV-360 - Disassembly; Removal of Front Panel Assy

SLV-360/390/390PX/660HF/690HF/L2MX/L2PA/L2PL/L4CS/
L4MX/L4PA/L4PL/L6HFCS/L6HFMX/L6HFPA/L6HFPL

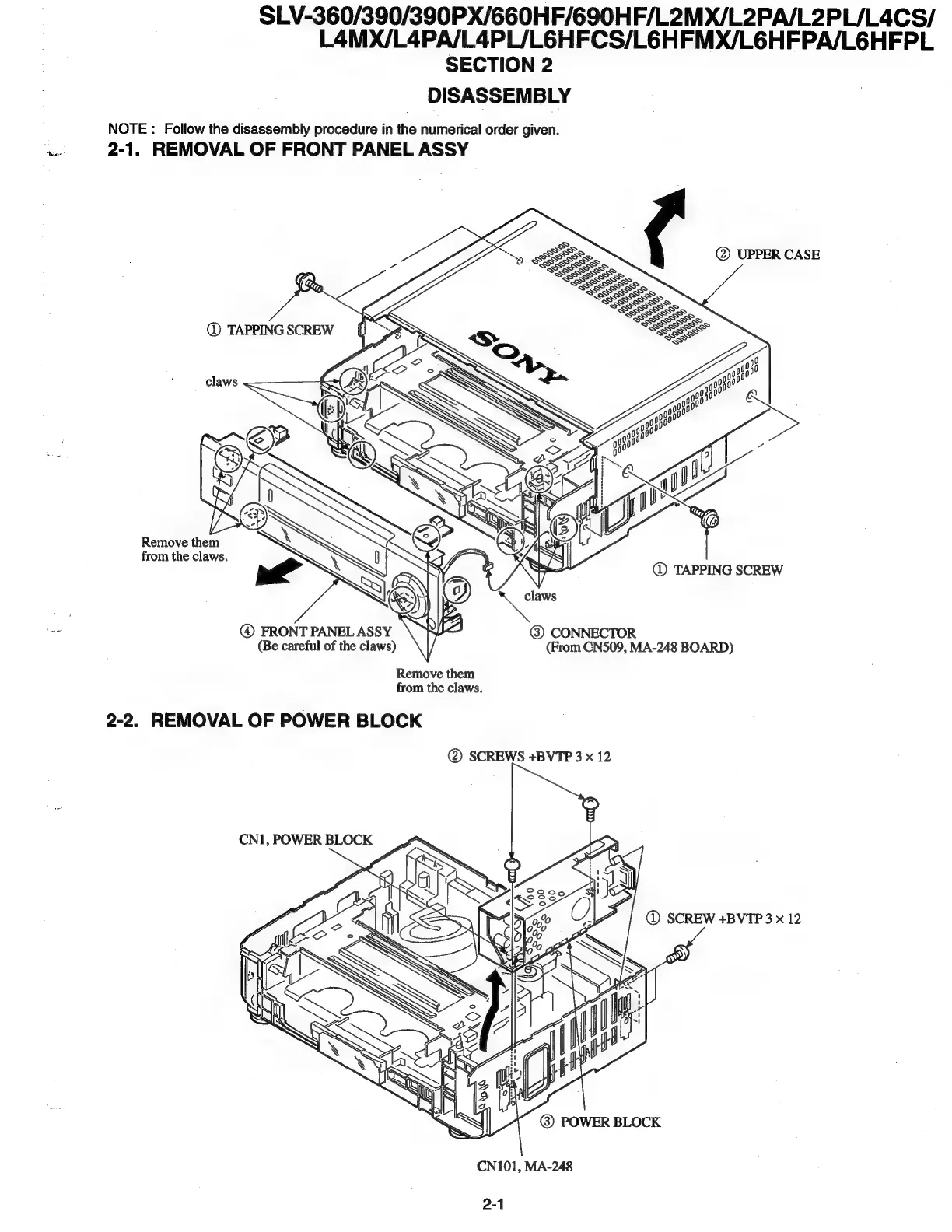

SECTION 2
DISASSEMBLY
NOTE : Follow the disassembly procedure in the numerical order given.
2-1. REMOVAL OF FRONT PANEL ASSY
Sl @ UPPER CASE
¢ far SS
(So SESS
@ TAPPING SCREW
claws
@ FRONT PANEL ASSY
(Be careful of the claws)
@® CONNECTOR
(From CN509, MA-248 BOARD)
Remove them
from the claws.
2-2. REMOVAL OF POWER BLOCK
@ SCREWS +BVTP 3 x 12
CN1, POWER BLOCK ss
@ SCREW +BVTP 3 x 12
CN101, MA-248
2-1
