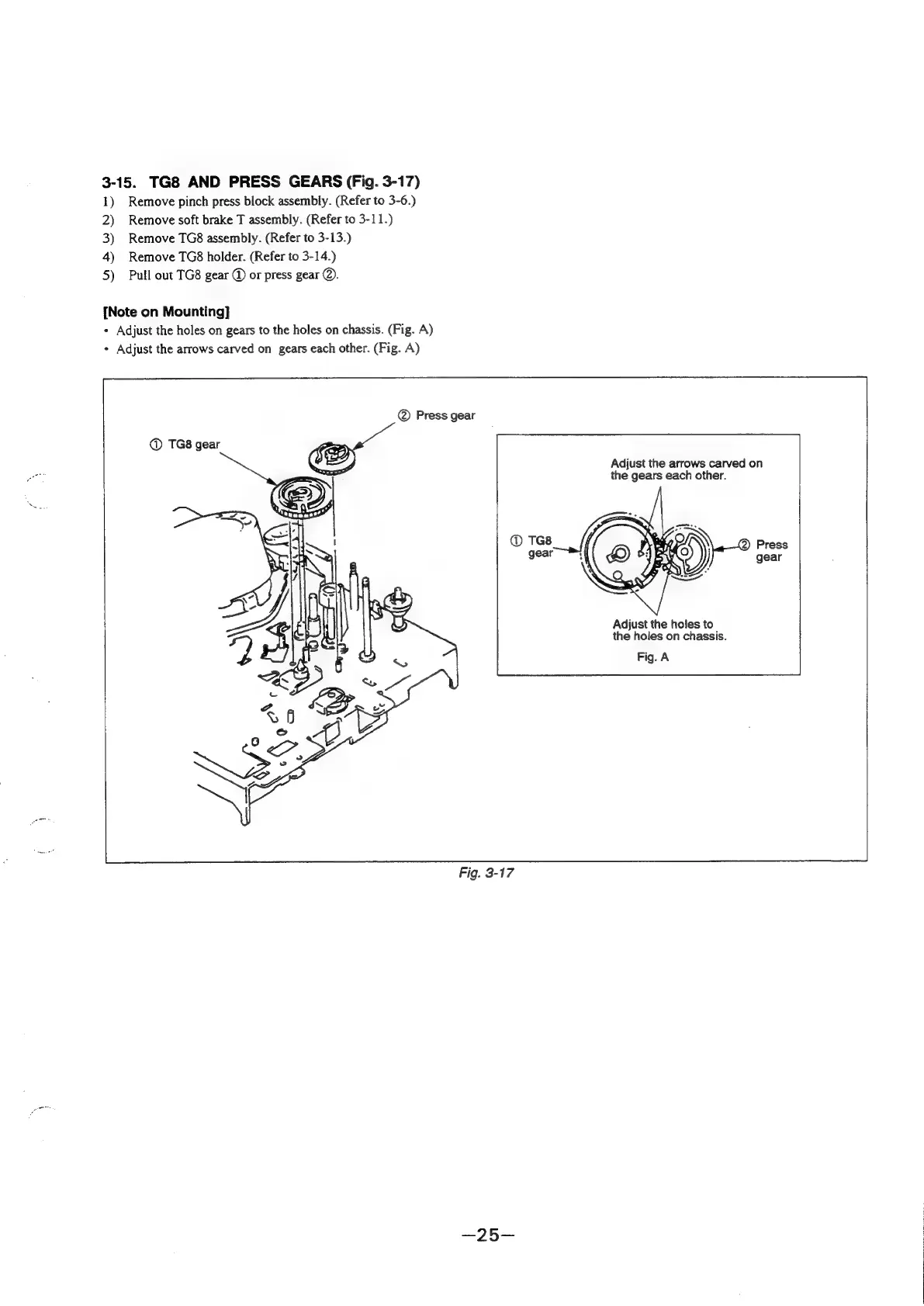

3-15. TG8 AND PRESS GEARS (Fig. 3-17)
1) Remove pinch press block assembly. (Refer to 3-6.)
2) Remove soft brake T assembly. (Refer to 3-11.)
3) Remove TG8 assembly. (Refer to 3-13.)
4) Remove TG8 holder. (Refer to 3-14.)
5) Pull out TG8 gear © or press gear @).
[Note on Mounting]
¢ Adjust the holes on gears to the holes on chassis. (Fig. A)
¢ Adjust the arrows carved on gears each other. (Fig. A)
@ Press gear
@ TG8 gear
Adjust the arrows carved on
the gears each other.
Adjust the holes to
the holes on chassis.
Fig. A
Fig. 3-17
