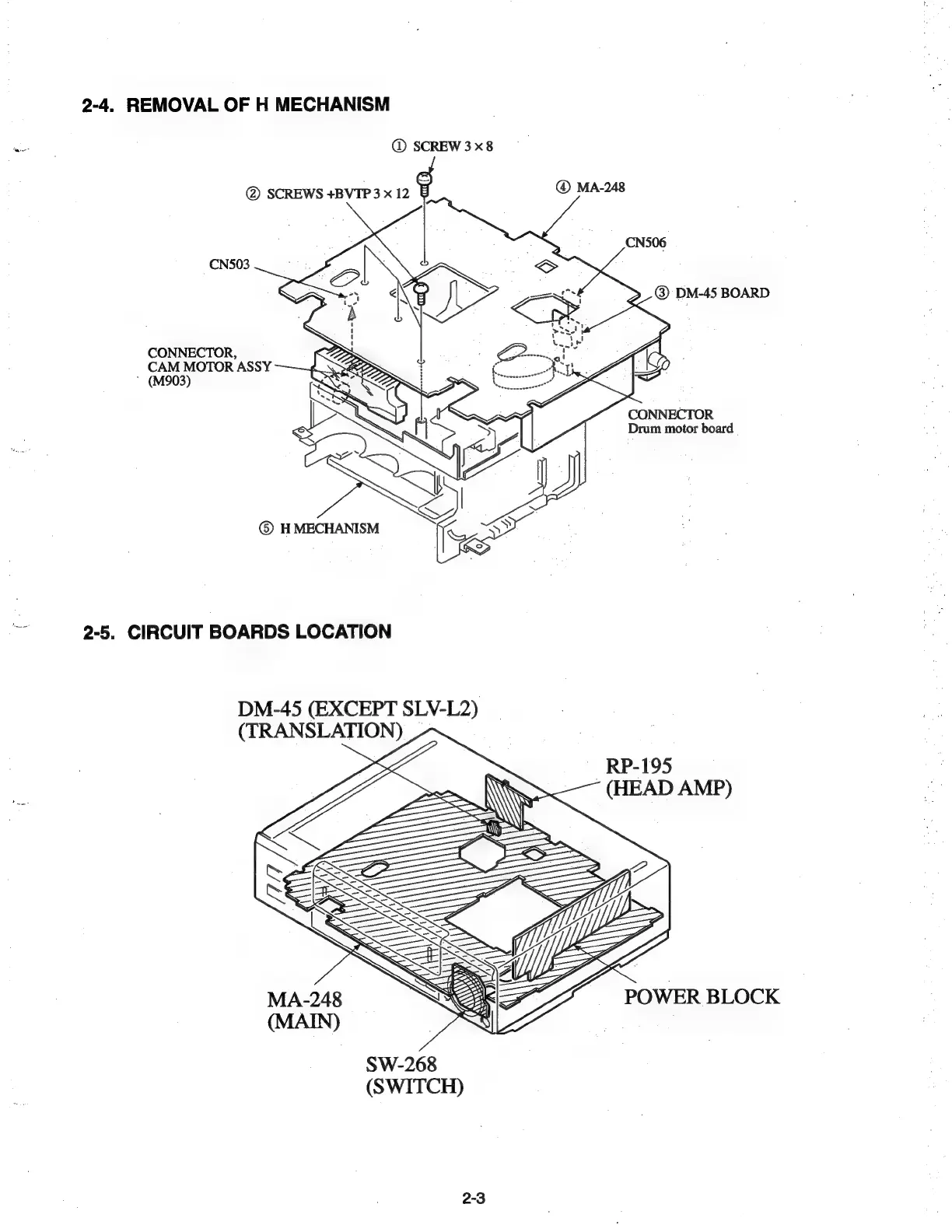

2-4. REMOVAL OF H MECHANISM
@ SCREW 3x8
@
SCREWS
+BVTP3
x
12
,
@
MA-248
CN506
CN503
* (M903)
CONNECTOR,
>
eet,
Ce
CAM
MOTOR
ASSY
ENS:
2
ee
<
CONNECTOR
Drum motor board
2-5. CIRCUIT BOARDS LOCATION
DM-45 (EXCEPT SLV-L2)
(TRANSLATION)
RP-195
(HEAD AMP)
SW-268
(SWITCH)
