Sony SLV-360 - Soft Brake T Assembly (Fig. 3-13)

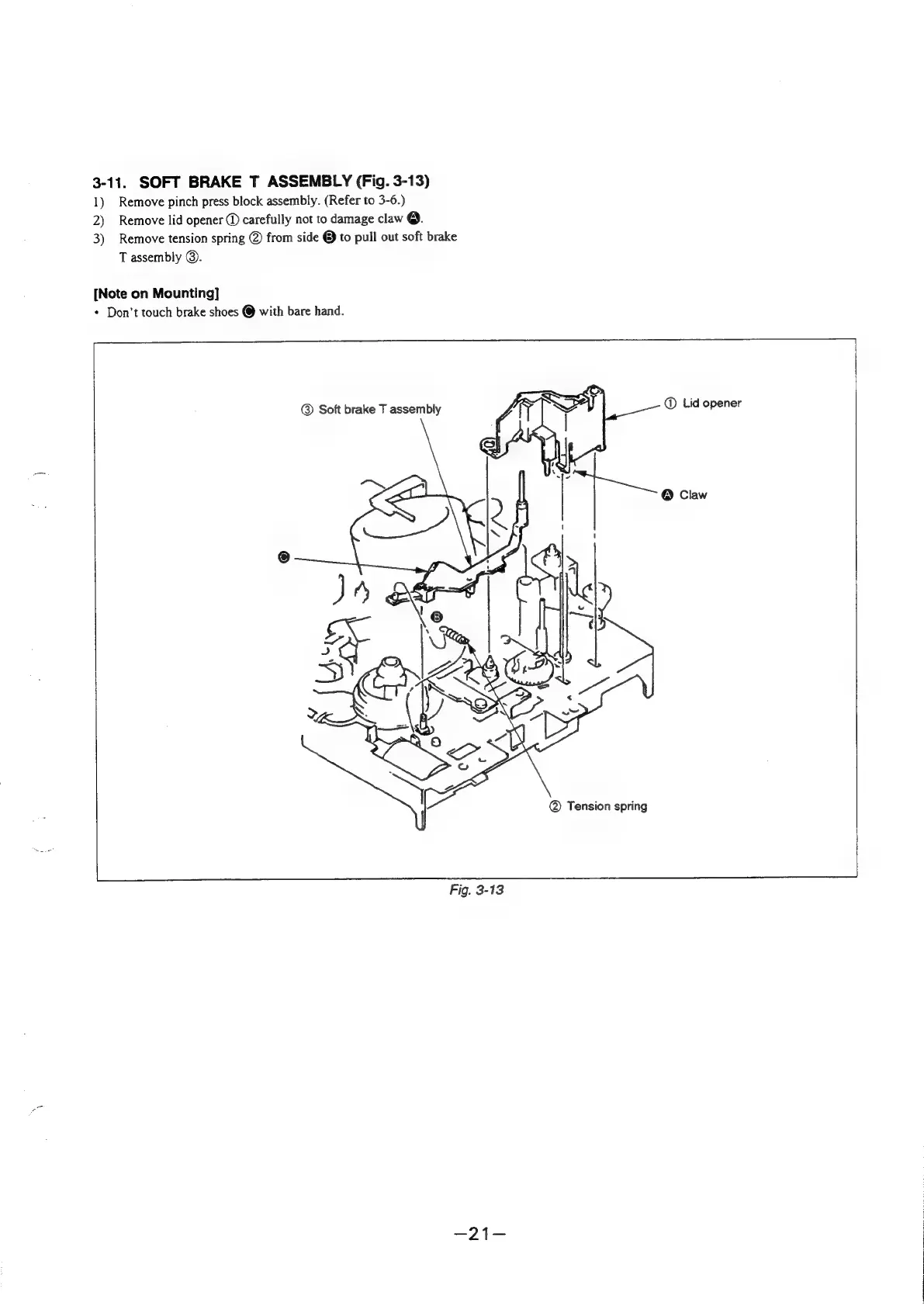

3-11. SOFT BRAKE T ASSEMBLY (Fig. 3-13)
1) Remove pinch press block assembly. (Refer to 3-6.)
2) Remove lid opener @ carefully not to damage claw @.
3) Remove tension spring @ from side © to pull out soft brake
T assembly @).
[Note on Mounting]
* Don’t touch brake shoes @ with bare hand.
®
Soft
brake
T
assembly
@
Lid
opener
@ Claw
@ Tension spring
Fig. 3-13
=
