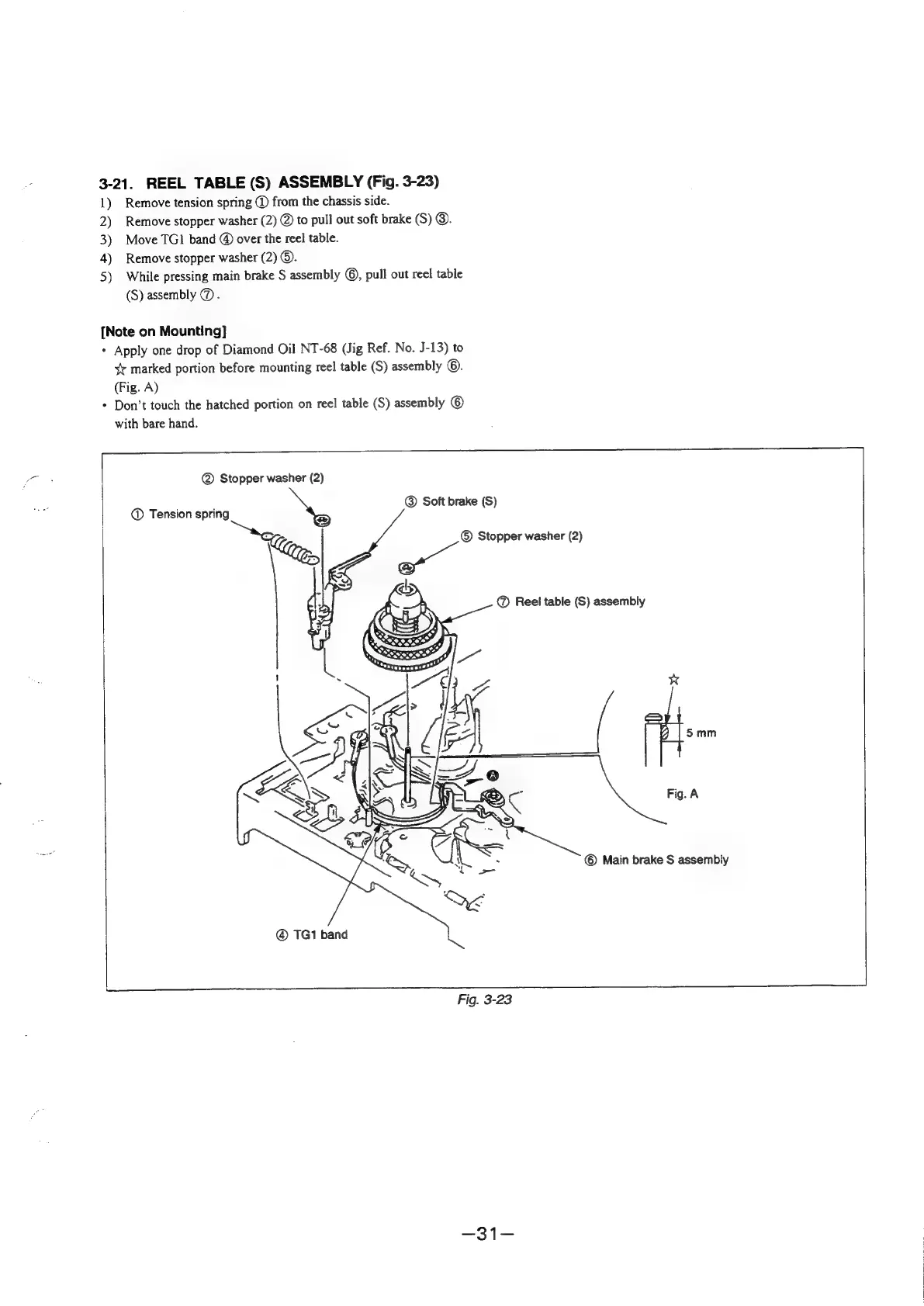

3-21.
REEL
TABLE
(S)
ASSEMBLY
(Fig.
3-23)
1)
Remove
tension
spring
@
from
the
chassis
side.
2)
Remove
stopper
washer
(2)
@
to
pull
out
soft
brake
(S)
©.
3)
Move
TG1
band
@
over
the
reel
table.
4)
Remove
stopper
washer
(2)
©.
5)
While
pressing
main
brake
S
assembly
©,
pull
out
reel
table
(S)
assembly
@.
[Note
on
Mounting]
+
Apply
one
drop
of
Diamond
Oil
NT-68
(Jig
Ref.
No.
J-13)
to
sv
marked
portion
before
mounting
reel
table
(S)
assembly
©.
(Fig.
A)
+
Don’t
touch
the
hatched
portion
on
reel
table
(S)
assembly
©
with
bare
hand.
@
Stopper
washer
(2)
Soft
brake
(S
@
Tension
spring
@
®)
©
Stopper
washer
(2)
@
Reel
table
(S)
assembly
5mm
Fig.
A
©
Main
brake
S
assembly
@
TG1
band
Fig.
3-23
Oe
