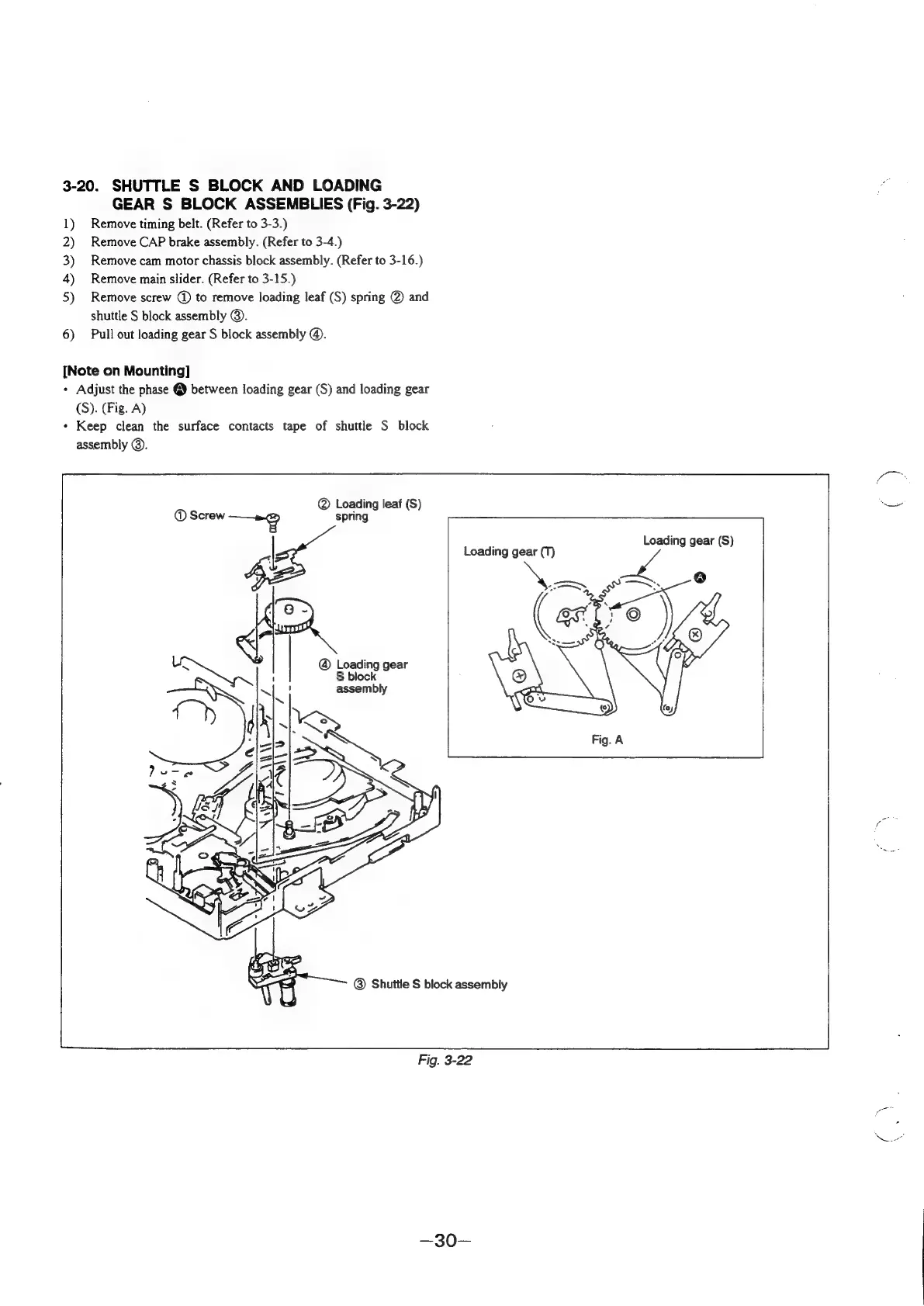

3-20. SHUTTLE S BLOCK AND LOADING
GEAR S BLOCK ASSEMBLIES (Fig. 3-22)
1) Remove timing belt. (Refer to 3-3.)
2) Remove CAP brake assembly. (Refer to 3-4.)
3) Remove cam motor chassis block assembly. (Refer to 3-16.)
4) Remove main slider. (Refer to 3-15.)
5) Remove screw @ to remove loading leaf (S) spring @ and
shuttle S block assembly @).
6) Pull out loading gear S block assembly @.
[Note on Mounting]
+ Adjust the phase @ between loading gear (S) and loading gear
(S). (Fig. A)
¢ Keep clean the surface contacts tape of shuttle S block
assembly @).
@ Loading leaf (S)
@ Screw —-P spring
| 6 -
@ Loading gear
S block
assembly
Loading gear (S
Loading gear (T) 9 gear (S)
Fig. 3-22
