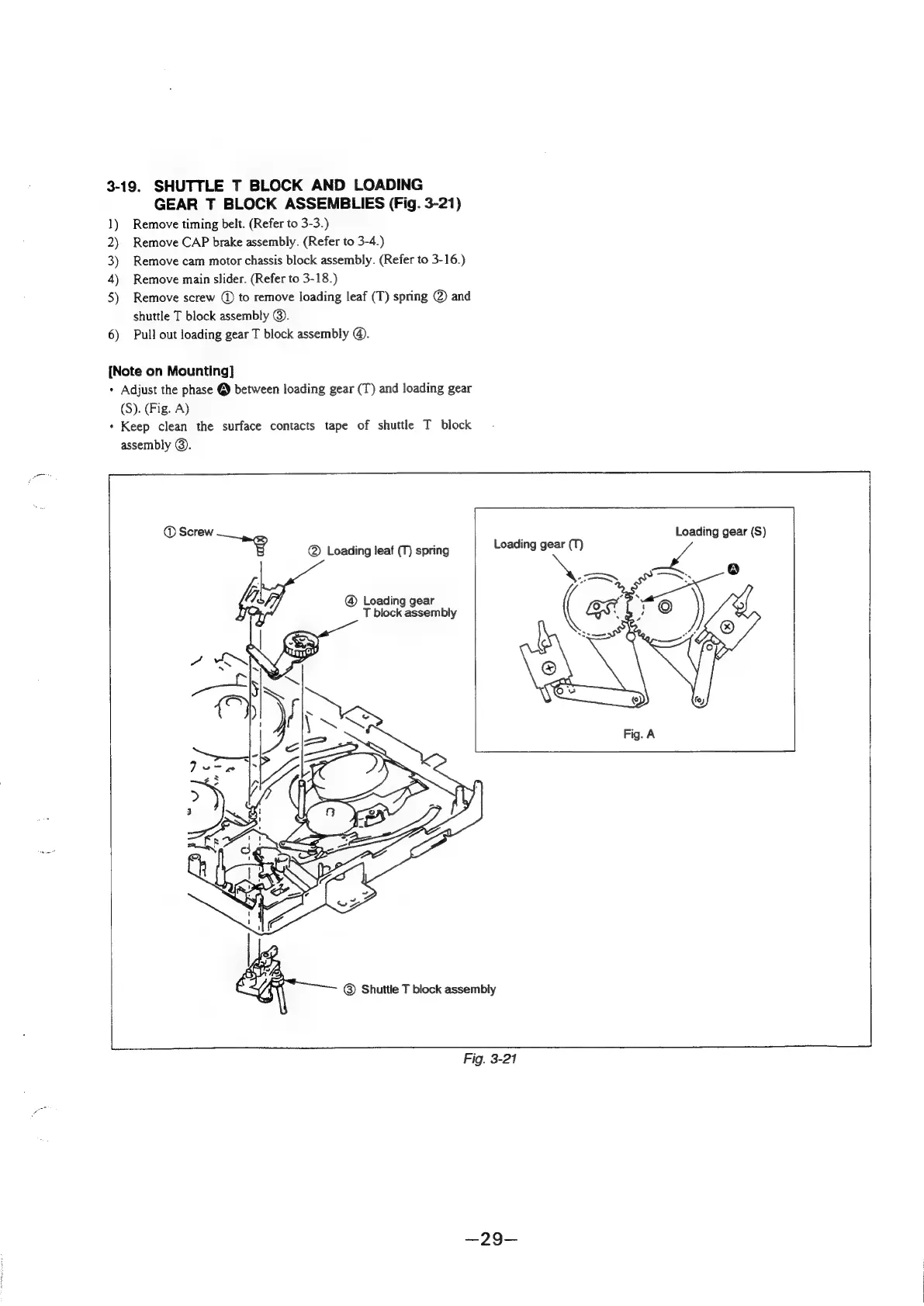

3-19. SHUTTLE T BLOCK AND LOADING
1)
2)
3)
4)
5)
6)
GEAR T BLOCK ASSEMBLIES (Fig. 3-21)
Remove timing belt. (Refer to 3-3.)
Remove CAP brake assembly. (Refer to 3-4.)
Remove cam motor chassis block assembly. (Refer to 3-16.)
Remove main slider. (Refer to 3-18.)
Remove screw @ to remove loading leaf (T) spring @ and
shuttle T block assembly @).
Pull out loading gear T block assembly @.
[Note on Mounting]
Adjust the phase @ between loading gear (T) and loading gear
(S). (Fig. A)
« Keep clean the surface contacts tape of shuttle T block
assembly @.
Loading gear (S)
e @® Loading leaf (T) spring
Loading gear (T)
@ Loading gear
T block assembly
@ Shuttle T block assembly
Fig. 3-21
