Sony SLV-360 - TG3, TG6 Guide Roller Assemblies (Fig. 3-8)

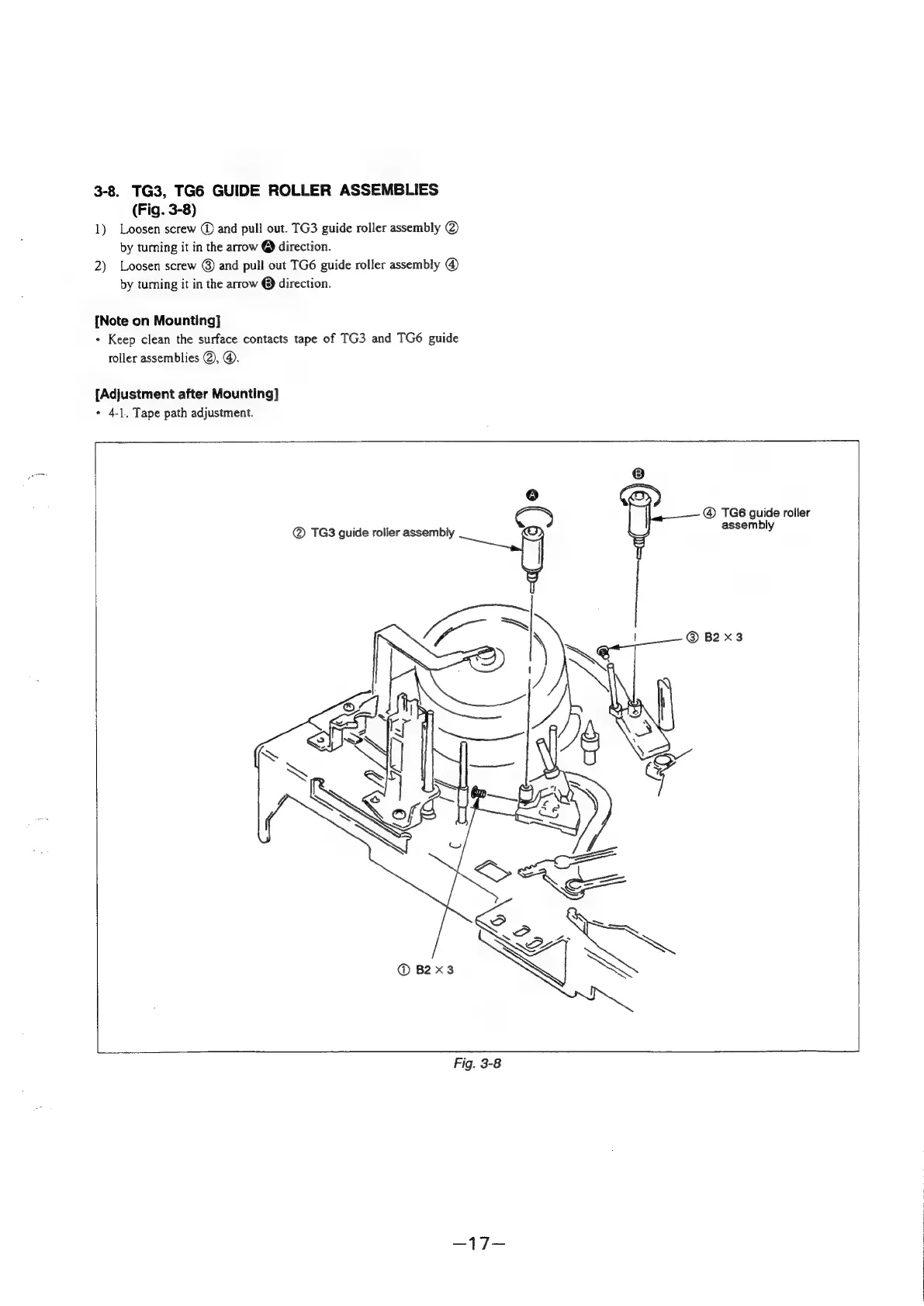

3-8. TG3, TG6 GUIDE ROLLER ASSEMBLIES
(Fig. 3-8)
1) Loosen screw © and pull out. TG3 guide roller assembly @
by tuming it in the arrow @ direction.
2) Loosen screw @) and pull out TG6 guide roller assembly ©
by tuming it in the arrow @ direction.
{Note on Mounting]
+ Keep clean the surface contacts tape of TG3 and TG6 guide
roller assemblies @, @.
[Adjustment after Mounting]
* 4-1. Tape path adjustment.
@ TG3 guide roller assembly
Fig. 3-8
= we
@ TG6 guide roller
assembly
