Sony SLV-360 - TG2 Roller, FE Head Assembly (Fig. 3-5)

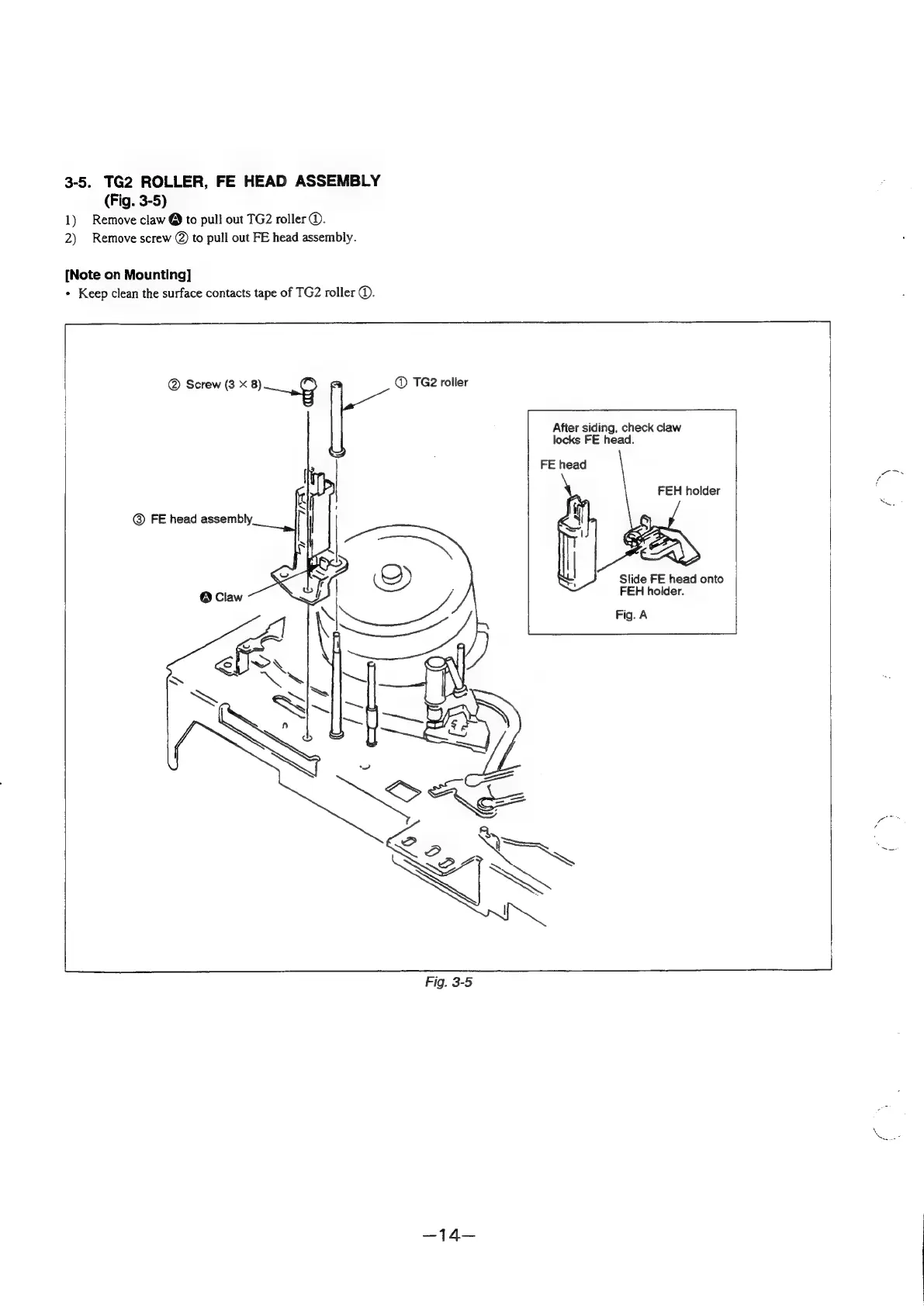

3-5. TG2 ROLLER, FE HEAD ASSEMBLY
(Fig. 3-5)
1) Remove claw @ to pull out TG2 roller ©.
2) Remove screw @) to pull out FE head assembly.
[Note on Mounting]
+ Keep clean the surface contacts tape of TG2 roller ©.
@ Screw (3 x )—O ie @® TG2 roller
Fig. 3-5
After siding, check claw
locks FE head.
FE head
FEH holder
Slide FE head onto
FEH holder.
Fig. A
