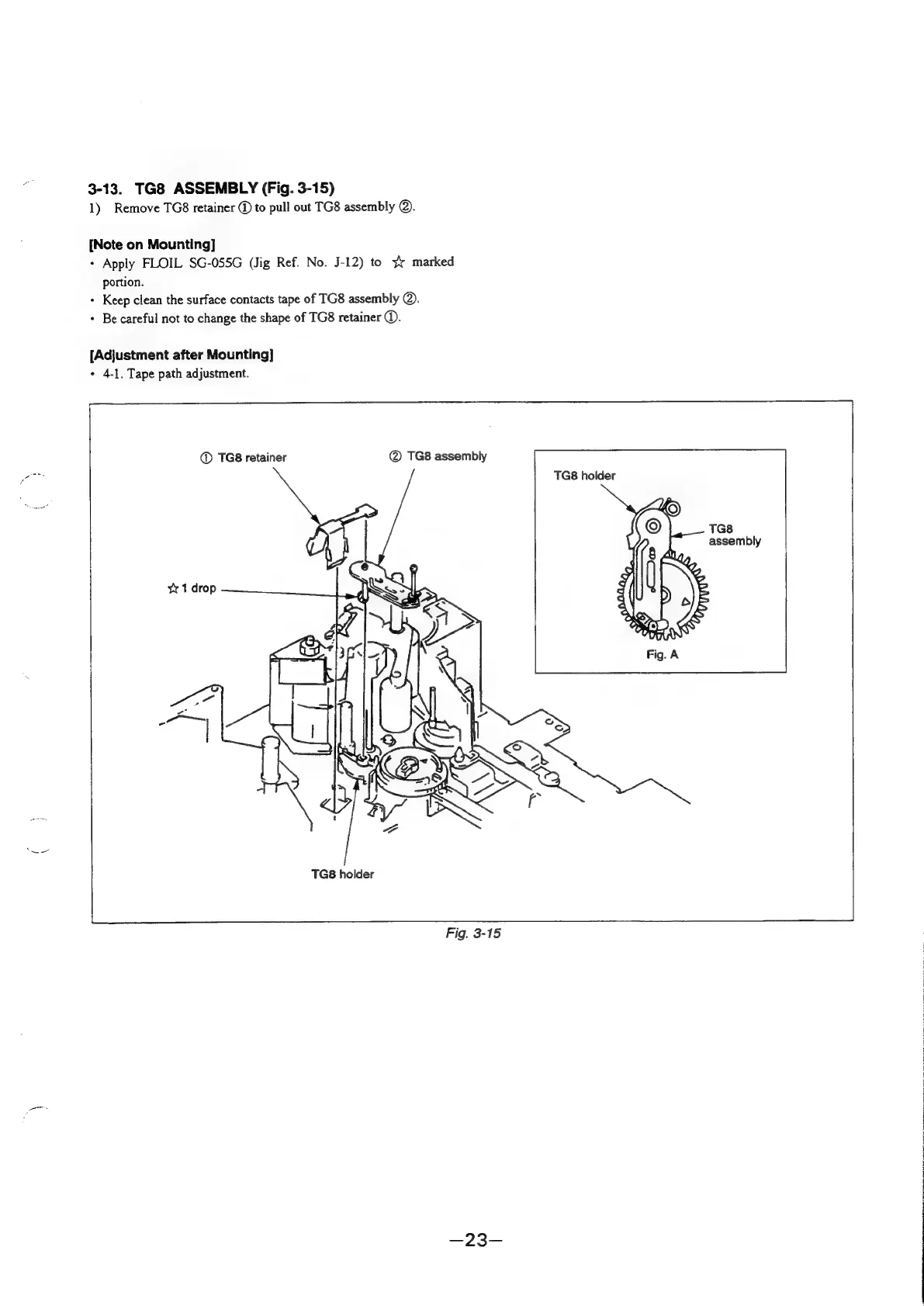

3-13. TGS ASSEMBLY (Fig. 3-15)
1) Remove TG8 retainer @ to pull out TG8 assembly @.
[Note on Mounting]
+ Apply FLOIL SG-055G (Jig Ref. No. J-12) to yx marked
portion.
+ Keep clean the surface contacts tape of TG8 assembly @.
+ Be careful not to change the shape of TG8 retainer ©.
[Adjustment after Mounting]
+ 4-1. Tape path adjustment.
@ TG8& retainer @ TG& assembly
TG8 holder
TG8
assembly
TG8 holder
Fig. 3-15
