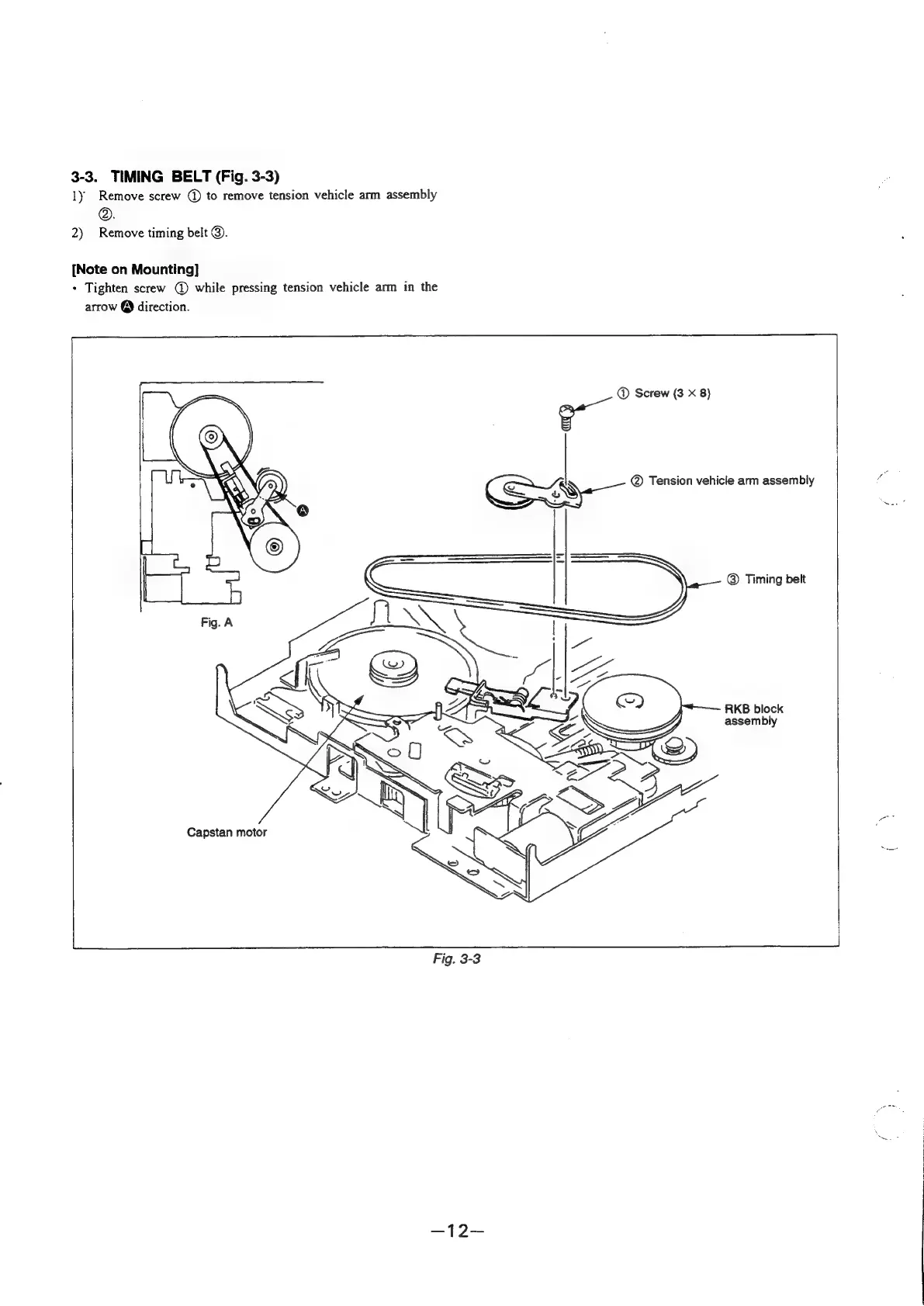

3-3. TIMING BELT (Fig. 3-3)
ly Remove screw @ to remove tension vehicle arm assembly
@.
2) Remove timing belt @.
[Note on Mounting]
+ Tighten screw @ while pressing tension vehicle arm in the
arrow @ direction.
@ Screw (3 X 8)
@® Tension vehicle arm assembly
@® Timing belt
RKB block
assembly
Capstan motor
