SLV-360/390/390PX/660HF/690HF/L2MX/L2PA/L2PL/L4CS/
L4MX/L4PA/L4PL/L6HFCS/L6HFMX/L6HFPA/L6HFPL

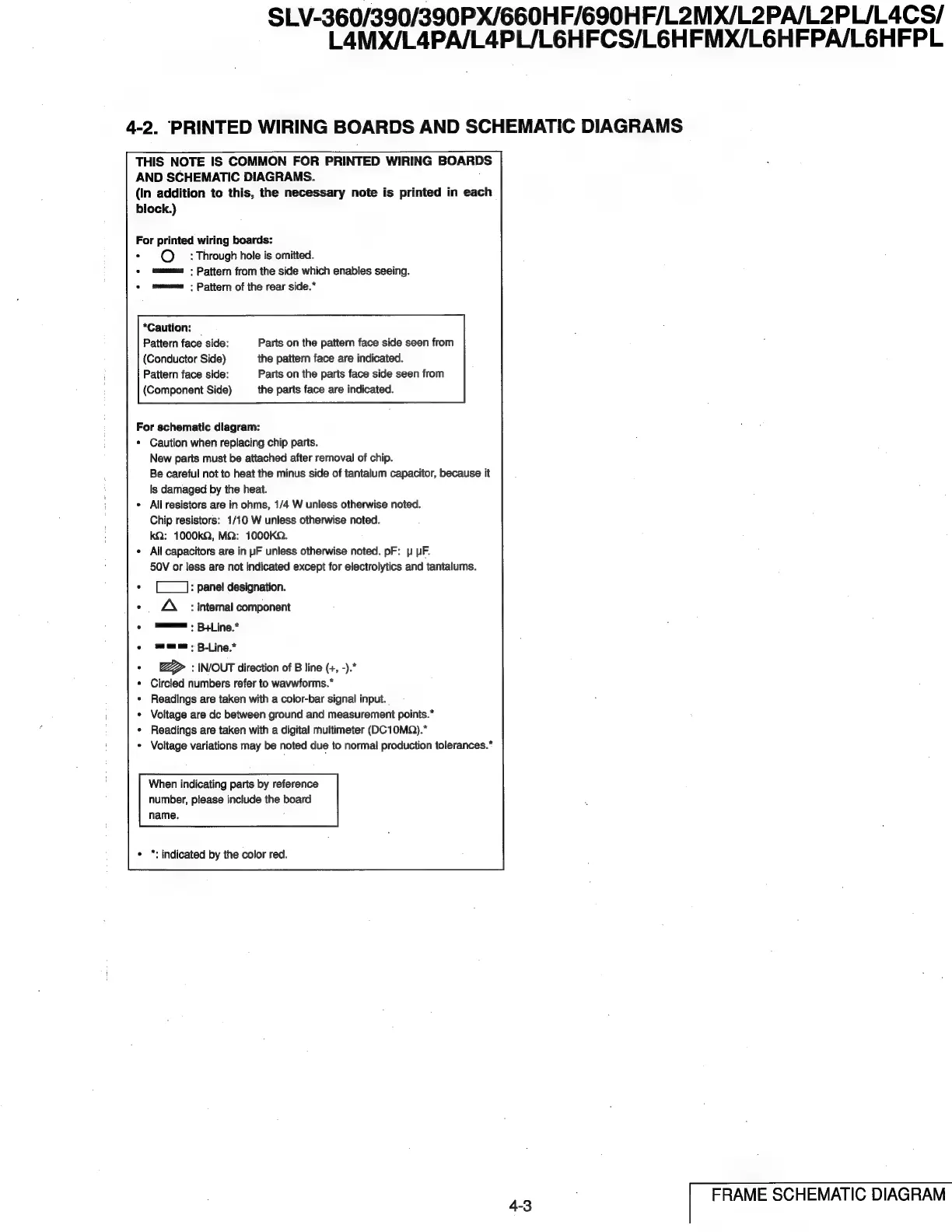

4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS
AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each
block.)
For printed wiring boards:
* © : Through hole is omitted.
° ‘1-7 : Pattern from the side which enables seeing.
° s- : Pattern of the rear side.*
*Caution: —
Pattern face side: Parts on the pattern face side seen from
(Conductor Side) the pattern face are indicated.
Pattern face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
For schematic diagram:
¢ Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum capacitor, because it
is damaged by the heat.
All resistors are in ohms, 1/4 W unless otherwise noted.
Chip resistors: 1/10 W unless otherwise noted.
kQ: 1000kQ2, MQ: 1000KQ.
All capacitors are in uF unless otherwise noted. pF: p uF.
50V or less are not indicated except for electrolytics and tantalums.
: panel designation.
: internal component
: BrLine.*
: B-Line.*
: IN/OUT direction of B line (+, -).*
* Circled numbers refer to wavwforms.*
+ Readings are taken with a color-bar signal input.
* Voltage are dc between ground and measurement points.”
¢ Readings are taken with a digital multimeter (DC10MQ).*
Voltage variations may be noted due to normal production tolerances.*
[>]
When indicating parts by reference
number, please include the board
name.
*: indicated by the color red.
FRAME SCHEMATIC DIAGRAM
