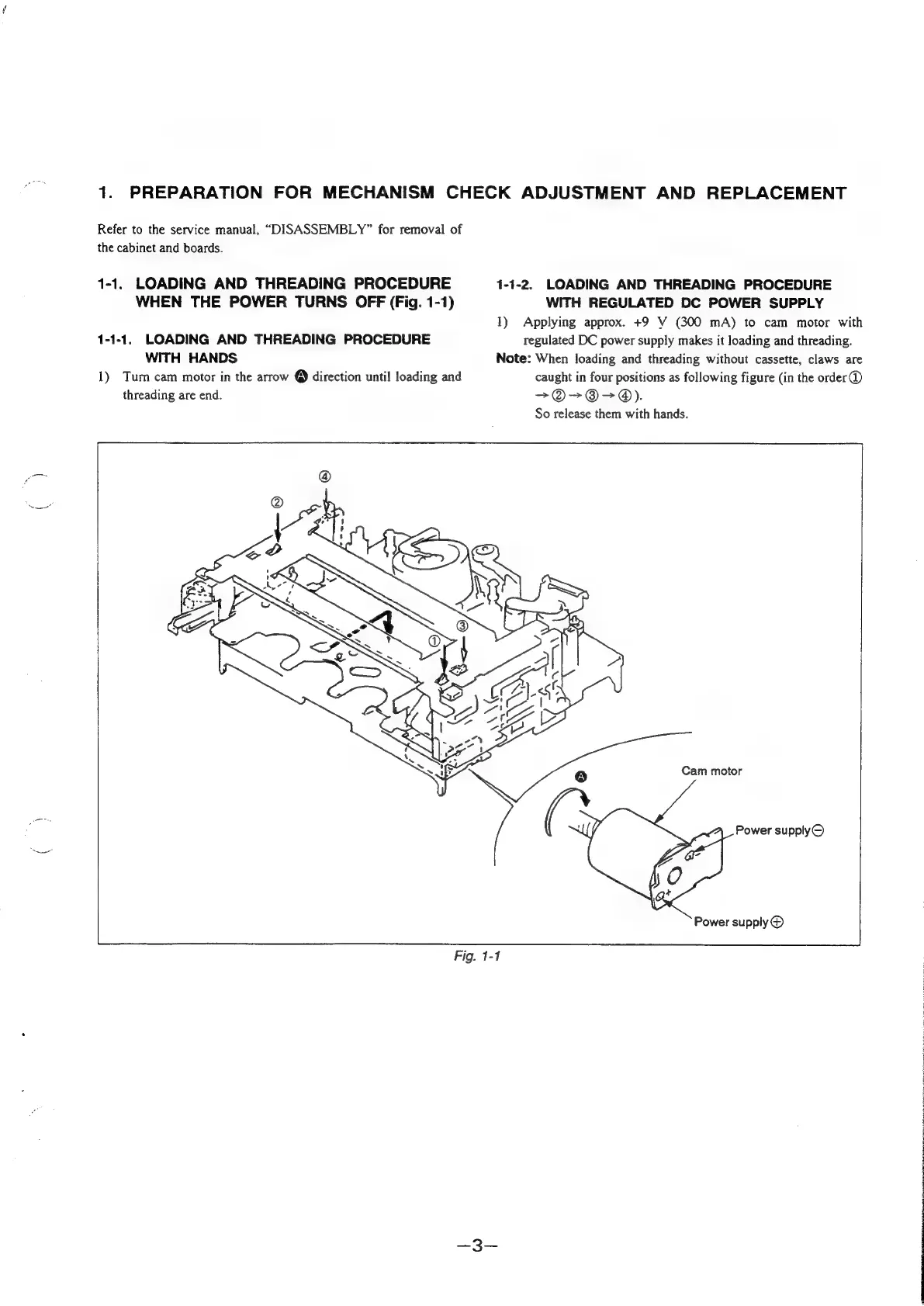

1. PREPARATION FOR MECHANISM CHECK ADJUSTMENT AND REPLACEMENT
Refer to the service manual, “DISASSEMBLY” for removal of
the cabinet and boards.
1-1. LOADING AND THREADING PROCEDURE
WHEN THE POWER TURNS OFF (Fig. 1-1)
1-1-1. LOADING AND THREADING PROCEDURE
WITH HANDS
1) Tum cam motor in the arrow @ direction until loading and
threading are end.
1-1-2. LOADING AND THREADING PROCEDURE
WITH REGULATED DC POWER SUPPLY
1) Applying approx. +9 V (300 mA) to cam motor with
regulated DC power supply makes it loading and threading.
Note: When loading and threading without cassette, claws are
caught in four positions as following figure (in the order@
-@-@-@).
So release them with hands.
Cam motor
Power supply ©
Power supply ©
Fig. 1-1
